5.8 GHz / 2.4GHz Dual Polarized High Gain Wifi Sector Antenna
|
Product Name |
5.8GHz/2.4GHz dual polarized 100 watt high dbi wifi router external wifi sector antenna |
|

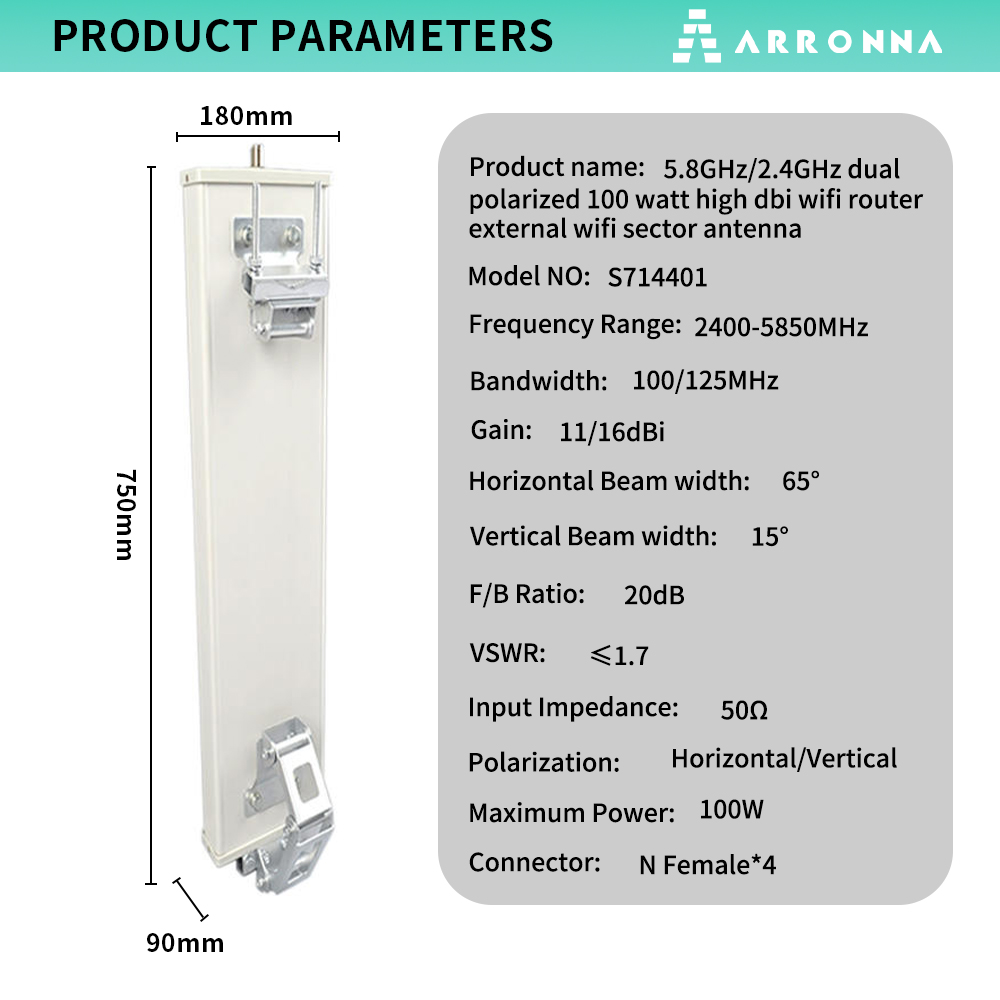

Electric Specification |
|
|
Model NO |
S714401 |
|
Frequency Range-MHz |
2400-2500/5725-5850 |
|
Bandwidth-MHz |
100/125 |
|
Gain-dBi |
11/16 |
|
Horizontal Beamwidth-° |
65 |
|
Vertical Bearmwidth -° |
15 |
|
Front/back ratio-dB |
20 |
|
VSWR |
≤1.7 |
|
Input Impedance -Ω |
50 |
|
Polarization |
Horizontal/Vertical |
|
Maximum Power -W |
100 |
|
Connector |
N Female*4 |
|
Mechanical Specifications |
|
|
Dimensions-mm |
750X180X90 |
|
Weight-kg |
4.5 |







Q1: Can I print my logo on the product? Can I customize the colors and finish type?
A: Yes, all appearances are customizable.
Q2: I like the design but want to change the solution, is it possible?
A: Yes we can do that.
Q3: I like the solution/audio but want my own design, is it possible?
A: Yes, we specialize in customized designs for our customers, we can even do new designs for you and give you concepts within a week time.
Q4: I want a different type of packaging, is it possible?
A: Yes. Currently 1000 charges, more than 2,000 the number of and free .(according to the type of carton or plastic packaging).
Q5: I want samples with my own logo, is it possible?
A: Yes it is possible. A small charge may apply depending on requirements.
Q6: How long is the sample time? And the payment term?
A: Samples will be transport in 7-10 days normally, OEM samples will be 10-15 days. You can pay sample fee via Paypal ,Western Union or T/T.
Q7: Are you factory or trading company? And how many stuff do you own?
A: Our enterprises in Shenzhen to create antenna at least ten years of production experience. Our staff in factory 100-200.
