描述

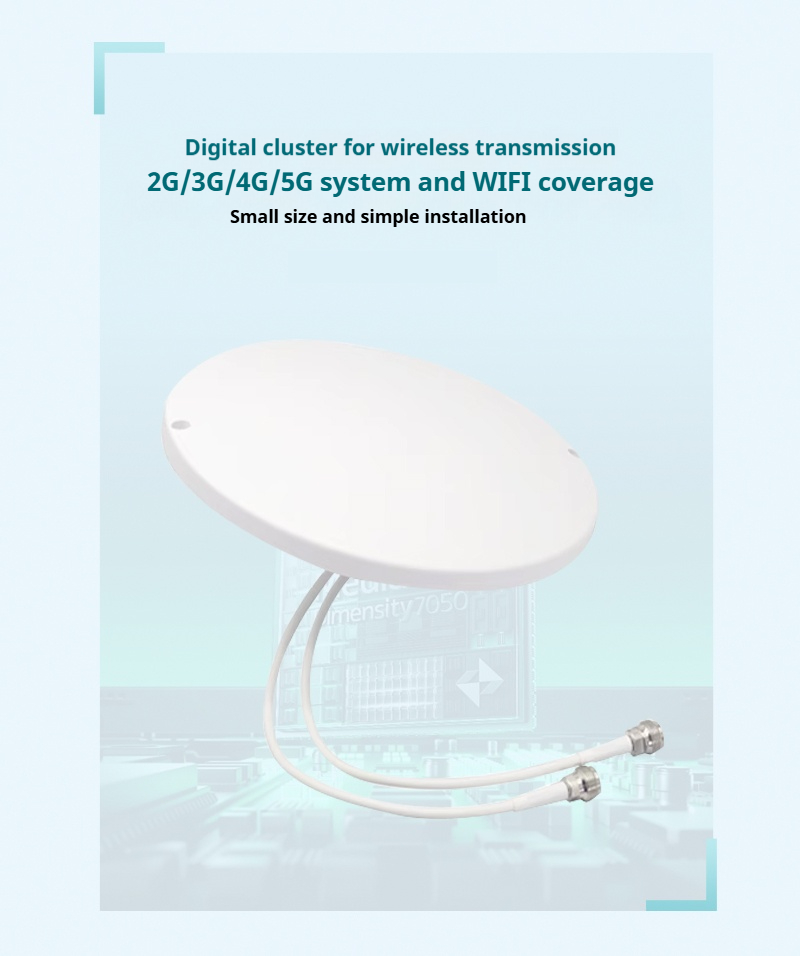

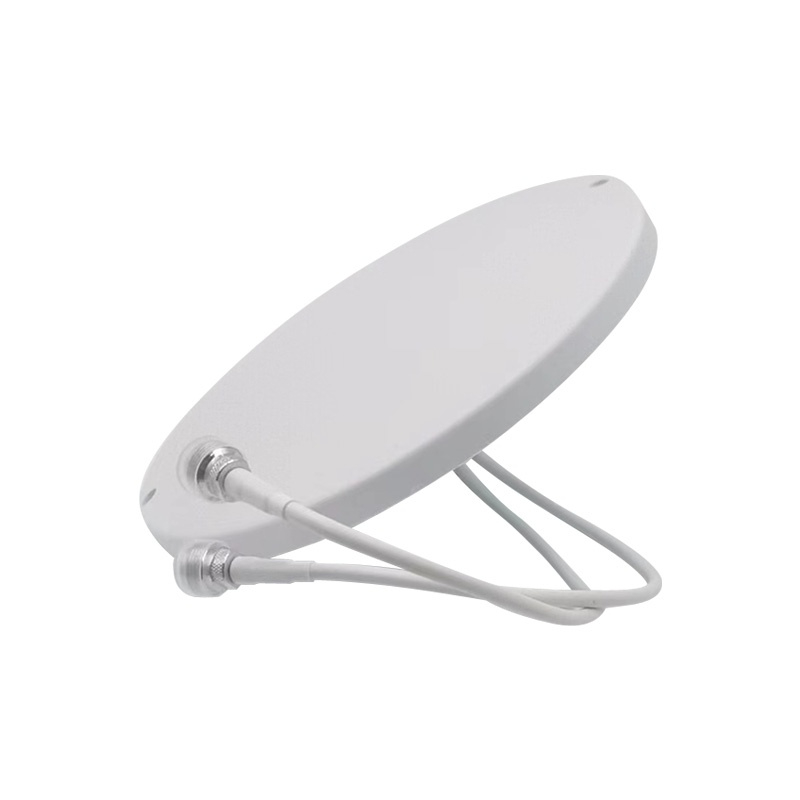

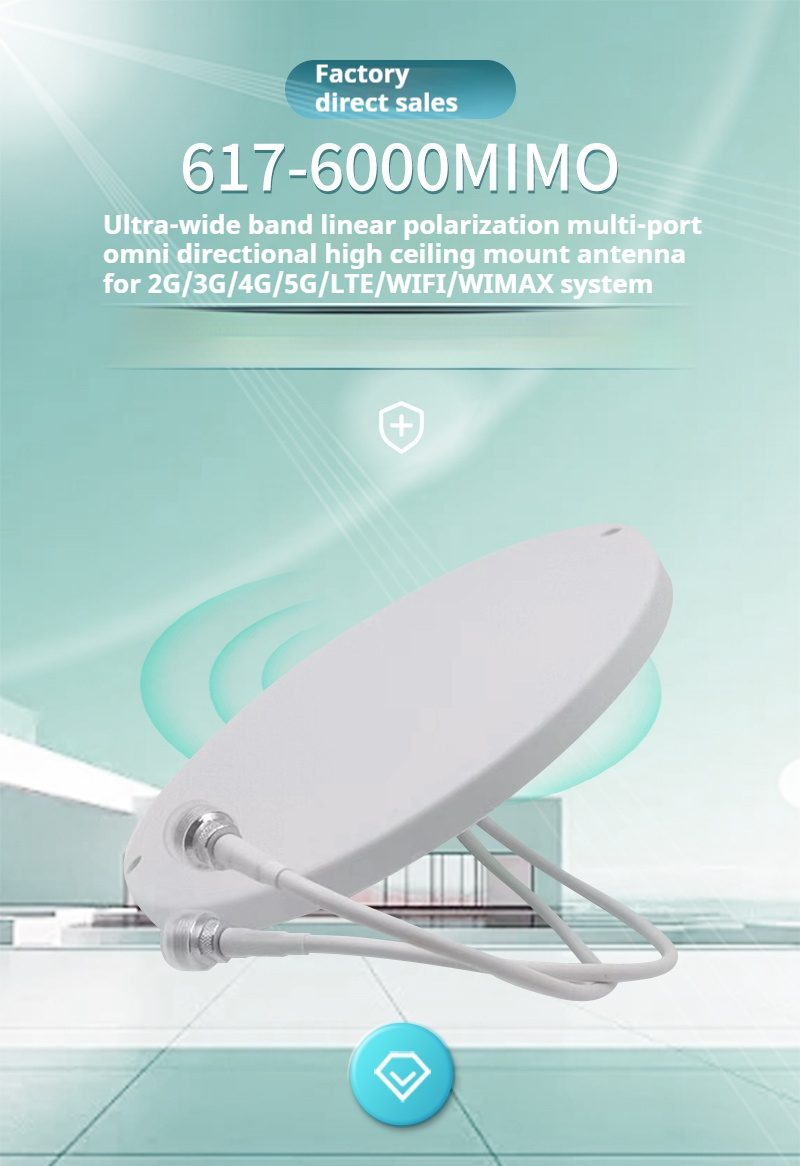

| Product name | 617-6000MHZ DAS Ceiling Mount antenna | |||
| Electric Specification | ||||
| Model NO. | ZXD-0660-360-V0406-BT-J04-002 | |||
| Frequency Range-MHz | 617-960/1710-2700/3300-3800/4900-6000 | |||
| Bandwidth-MHz | 343/990/500/1100 | |||
| Gain-dBi | 4 | 5 | 6 | 6 |

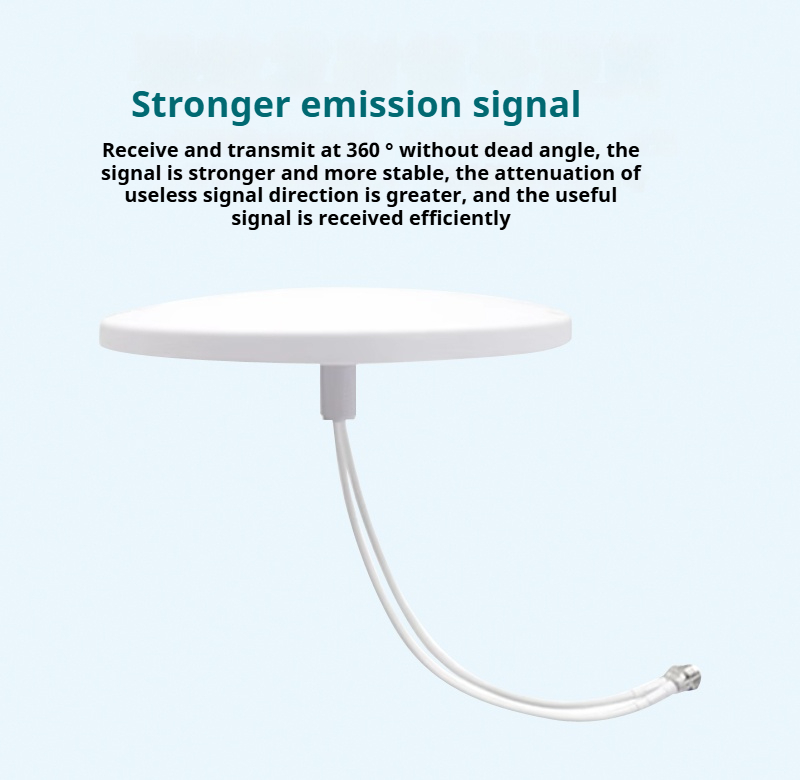

| Horizontal Beam width-° | 360 | |||
| Vertical Beam width -° | 80 | 50 | 40 | 50 |
| VSWR | ≤2.0 | ≤1.8 | ||
| Port isolation degree | ≥16 | ≥20 | ≥25 | |
| Input Impedance-Ω | 50 | |||
| Polarization | 4*linear polarization | |||
| Maximum input power-W | 50 | |||
| Connector | 4*N female | |||
| Lightning protection | DC GROUD | |||
| Mechanical Specification | ||||
| Dimensions-mm | Φ350×45 | |||
| Packing Size-mm | 410*140*420 | |||
| Weight-kg | 1.3 | |||
| Radome Material and Color | ABS, White, RAL7035 | |||
| Mounting Type | Ceiling Mount | |||
| Operational Temperature℃ | -55 to +60 | |||
| Mounting hardware(mm) | Φ35~Φ50 | |||












Q1: Can I print my logo on the product? Can I customize the colors and finish type?
A: Yes, all appearances are customizable.
Q2: I like the design but want to change the solution, is it possible?
A: Yes we can do that.
Q3: I like the solution/audio but want my own design, is it possible?
A: Yes, we specialize in customized designs for our customers, we can even do new designs for you and give you concepts within a week time.
Q4: I want a different type of packaging, is it possible?
A: Yes. Currently 1000 charges, more than 2,000 the number of and free .(according to the type of carton or plastic packaging).
Q5: I want samples with my own logo, is it possible?
A: Yes it is possible. A small charge may apply depending on requirements.
Q6: How long is the sample time? And the payment term?
A: Samples will be transport in 7-10 days normally, OEM samples will be 10-15 days. You can pay sample fee via Paypal ,Western Union or T/T.
Q7: Are you factory or trading company? And how many stuff do you own?
A: Our enterprises in Shenzhen to create antenna at least ten years of production experience. Our staff in factory 100-200.
