描述
|

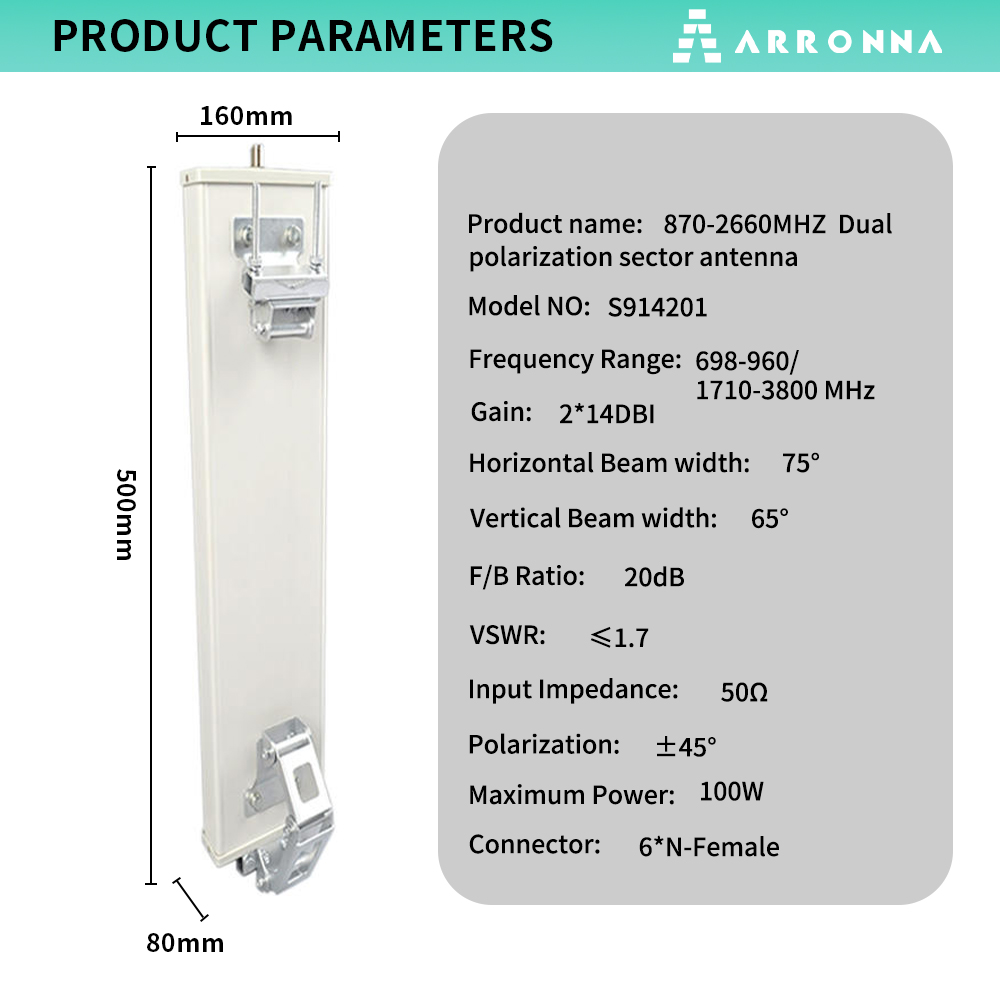

Product name |
870-2660MHZ Dual polarization sector antenna |
|
Electric Specification |
|
|
Model |
S914201 |
|
Frequency Range-MHz |
698-960/1710-3800 MHz |
|
Gain-dBi |
2*14DBI |
|
Horizontal beam width–° |
75 |
|
Vertical beam width–° |
65 |
|
F/B Ratio-dB |
20 |
|
VSWR |
≤1.7 |
|
Input Impedance-Ω |
50 |
|
Polarization |
±45° |
|
Maximum Power-W |
100 |
|
Connector-type |
6*N-Female |
|
Mechanical Specification |
|
|
Dimension-mm |
500*160*80MM |
|
Weight-kg |
3.00 |
