Model |
WB5ac-12Ex |
||||
|
CPU |
QCA9563+QCA9882+QCA8334 |
||||
|
Flash |
SPI NOR 16MB |
||||
|
DDR |
DDR2-128MB |
||||
|
5G Frequency |
5.150GHz~5.850GHz |
||||
|
5G Protocol |
802.11 a / n /ac |
||||
|
Data Rate |
900Mbps |
||||
|
Antenna |

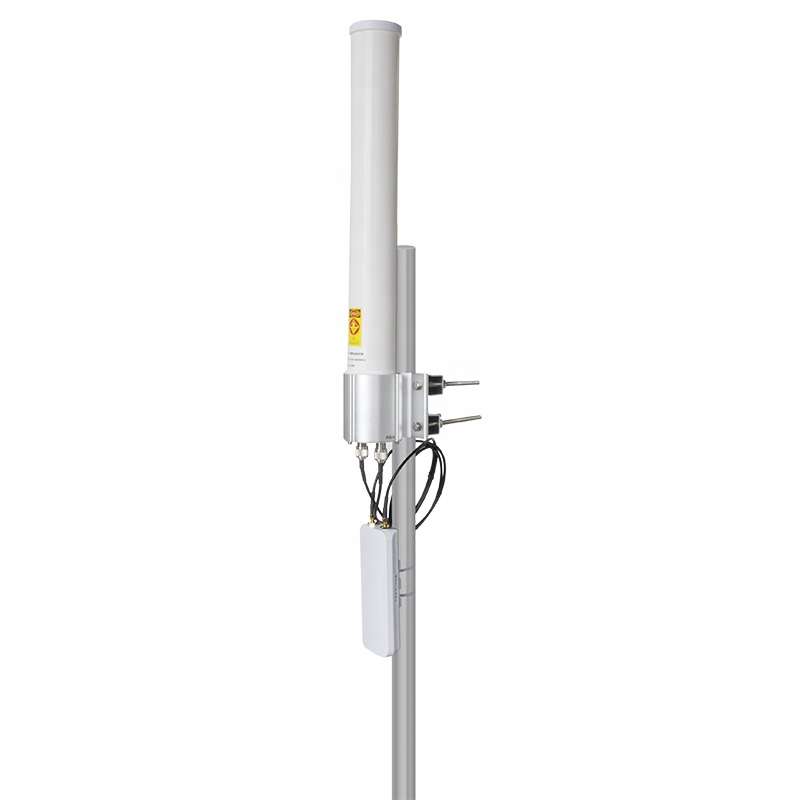

External omnidirectional 12dBi antenna |
||||
|
5G TX Power |
802.11a |
54M |
23±2dBm |
6M |
26±2dBm |
|
802.11n HT20 |
MCS7 |
22±2dBm |
MCS0 |
26±2dBm |
|
|
802.11n HT40 |
MCS7 |
22±2dBm |
MCS0 |
26±2dBm |
|
|
802.11ac VHT20 |
MCS9 |
21±2dBm |
MCS0 |
26±2dBm |
|
|
5G Receiving Sensitivity |
802.11ac VHT40 |
MCS9 |
21±2dBm |
MCS0 |
26±2dBm |
|
802.11ac VHT80 |
MCS9 |
21±2dBm |
MCS0 |
26±2dBm |
|
|
802.11a |
54M |
–75dBm |
6M |
–92dBm |
|
|
802.11n HT20 |
MCS7 |
–72dBm |
MCS0 |
–90dBm |
|
|
5G EVM |
802.11a_54M: ≤-25 dB;802.11n_MCS7: ≤-28 dB;802.11AC_MCS9:≤-32dB |
||||
|
ppm |
±20ppm |
||||
|

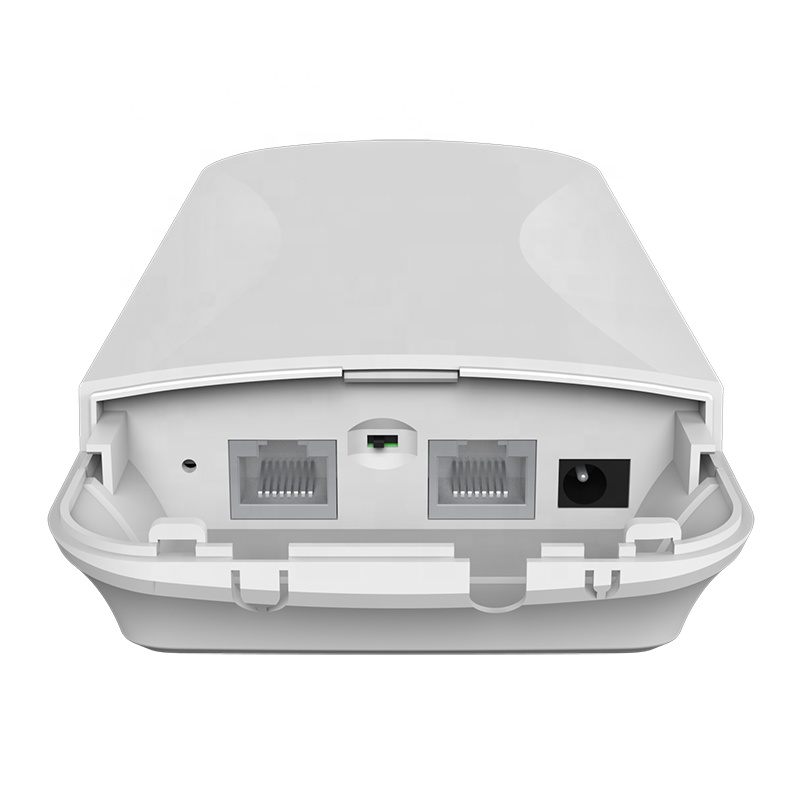

WAN |
1*10/100/1000M WAN, support 24V~48V passive POE power supply |
||||
|
LAN |
1*10/100/1000M LAN |
||||
|
Power supply |
PoE 24V~48V passive PoE, DC 12~24V |
||||
|
Power consumption |
<10W |
||||
|
RST button |
Press and hold for 6 seconds to restore factory default configuration |
||||
|

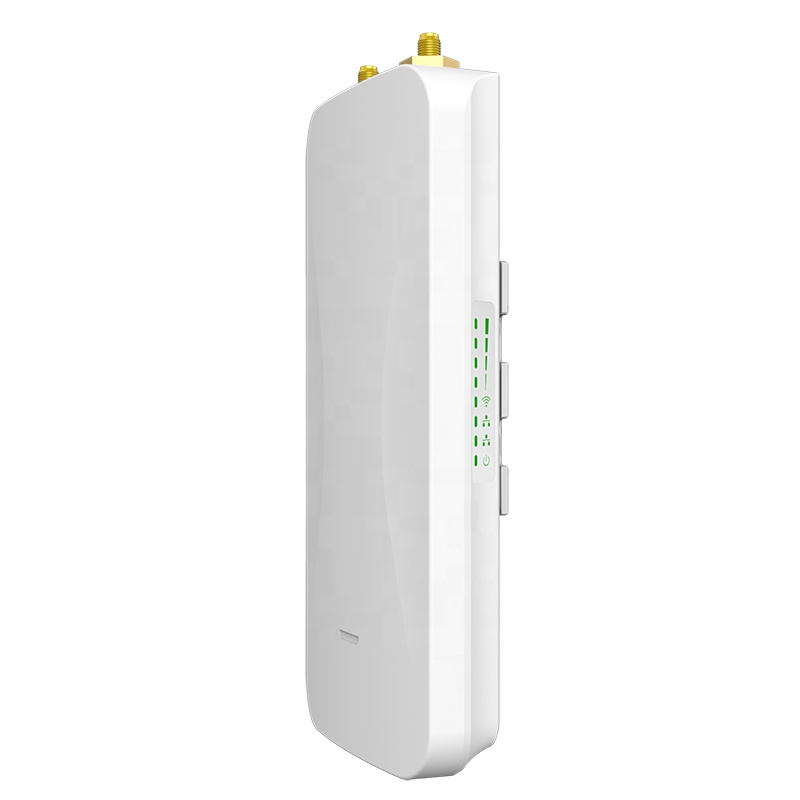

Indicators |
SYS, WAN, LAN, signal*5 |
||||
|
Dimension |
196mm*86mm*40mm |
||||
|
Weight |
0.4kg |
||||
|
Temperature |
Working: –30°C to 55°C;Storage: -40°C to 70°C;Humidity: 5%~95%(Non-Condensing) |
||||
|
IP Grade |
IP65 |
||||
|
ESD |
Air:±8K, Touch:±6K |
||||
|
Electrical Surge |
Common Mode: 4K, Differential Mode: 2K |
||||
|
Wireless operating modes |
Access point (auto WDS), access point (TDMA3 ), station (WDS, TDMA3 ), station (ARP NAT) |
|
Wireless techniques |
Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC) |
|
Wireless security |
WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation |
|
Wireless QoS |
4 queues prioritization on TDMA |
|
Network operating modes |
Bridge, router iPv4, router IPv6 |
|
Network techniques |
Routing with and without NAT, VLAN |
|
WAN protocols |
Static IP, DHCP client, PPPoE client |
|
Services |
DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog |
|
Management |
HTTP(S) GUI, SSH, SNMP read, WNMS, Telnet |
|
Tools |
Site survey, link test, antenna alignment |
Q1: Can I print my logo on the product? Can I customize the colors and finish type?
A: Yes, all appearances are customizable.
Q2: I like the design but want to change the solution, is it possible?
A: Yes we can do that.
Q3: I like the solution/audio but want my own design, is it possible?
A: Yes, we specialize in customized designs for our customers, we can even do new designs for you and give you concepts within a week time.
Q4: I want a different type of packaging, is it possible?
A: Yes. Currently 1000 charges, more than 2,000 the number of and free .(according to the type of carton or plastic packaging).
Q5: I want samples with my own logo, is it possible?
A: Yes it is possible. A small charge may apply depending on requirements.
Q6: How long is the sample time? And the payment term?
A: Samples will be transport in 7-10 days normally, OEM samples will be 10-15 days. You can pay sample fee via Paypal ,Western Union or T/T.
Q7: Are you factory or trading company? And how many stuff do you own?
A: Our enterprises in Shenzhen to create antenna at least ten years of production experience. Our staff in factory 100-200.
