Hardware configuration |
|
|
Main Chip |
MT7620DA+7612E |
|
Frequency |
580MHz |
|
Memory |
64MB |
|
Flash |
8MB |
|
Wireless Technology |
802.11a/n/ac 900Mbps 2T2R technology |
|
Device Interfaces |
WAN/LAN*1 10/100/1000Mbps adaptive Ethernet ports LAN*1 10/100Mbps adaptive Ethernet ports DC power interface, compatible with power plugs with an outer diameter of 5.5mm, inner diameter of 2.1mm, and length of 9.5mm or above |
|
Buttons |
Reset Factory/ Digital Compound Button, short press to adjust the numeric display value, long press for 6 seconds to restore factory settings. |
|

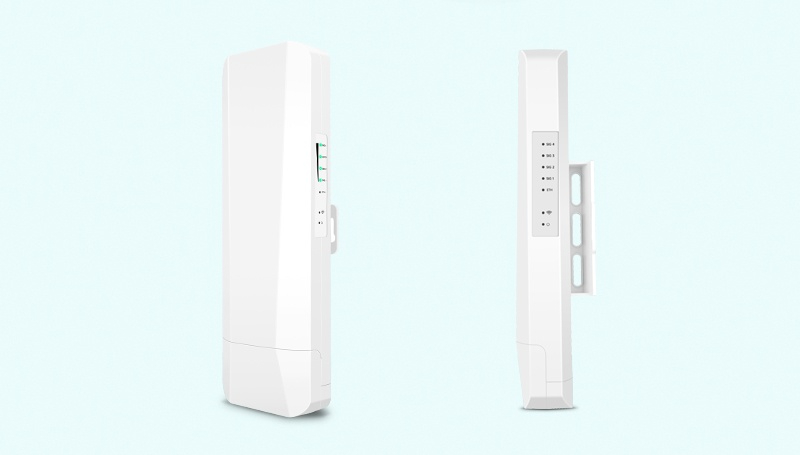

Indicators |
PWR power indicator,ETH port status indicator, signal strength indicators, numeric display. |
|
Antenna |

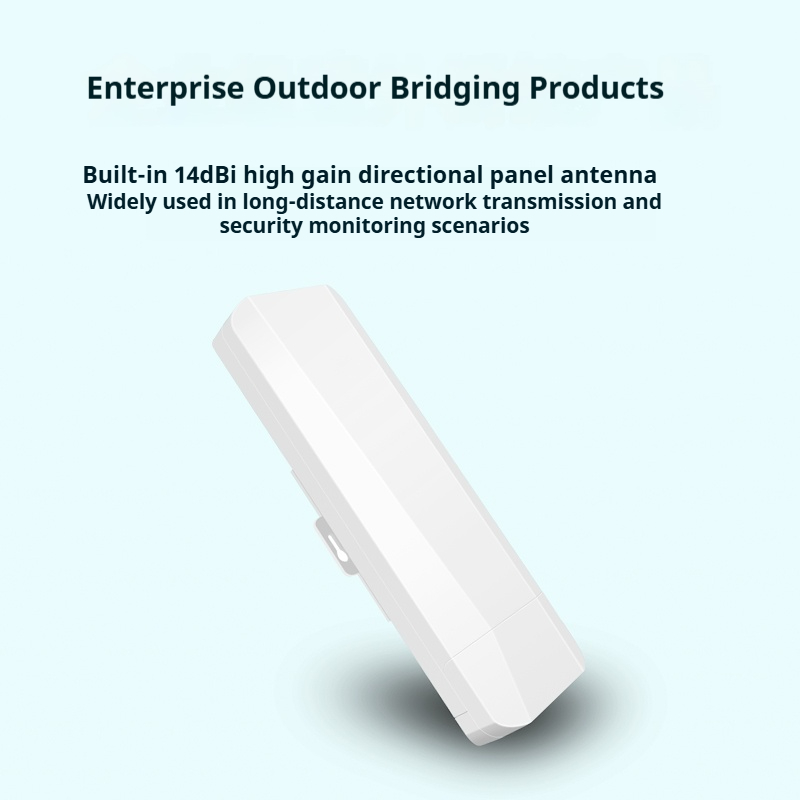

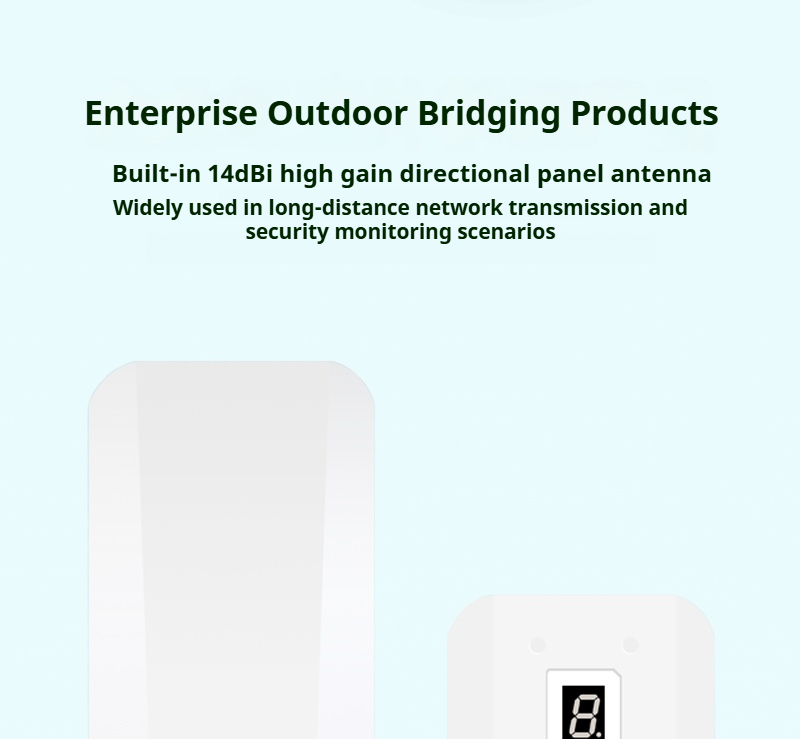

Built-in dual-polarization 14dBi directional panel antenna (horizontal beamwidth 60°, vertical beamwidth 60°) |
|

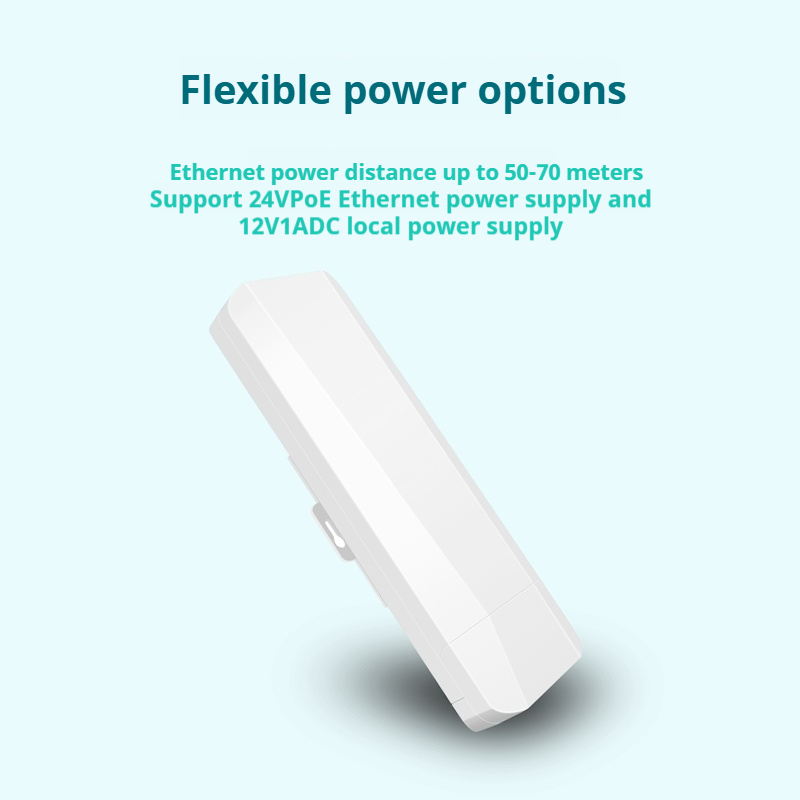

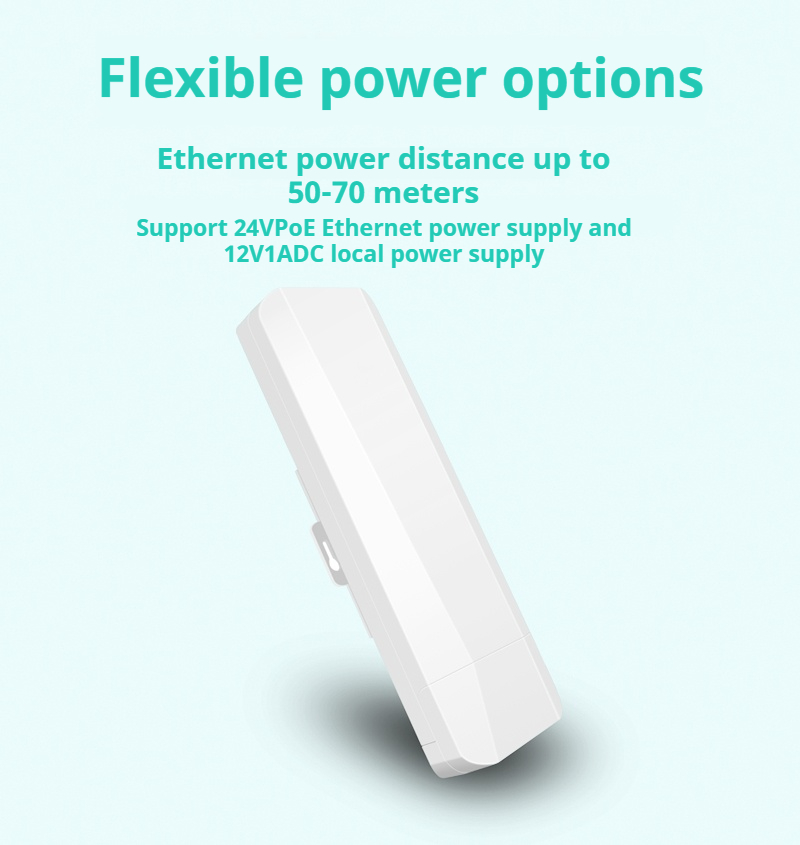

Power |
24V/1A PoE remote power supply DC 12V/1A, positive external and negative internal |
|
Operating/Storage Temperature |
-30℃~55℃/ -40℃~70℃ |
|
Operating/Storage Humidity |
10%~90%(operating) /5%~95%(storage) |
|

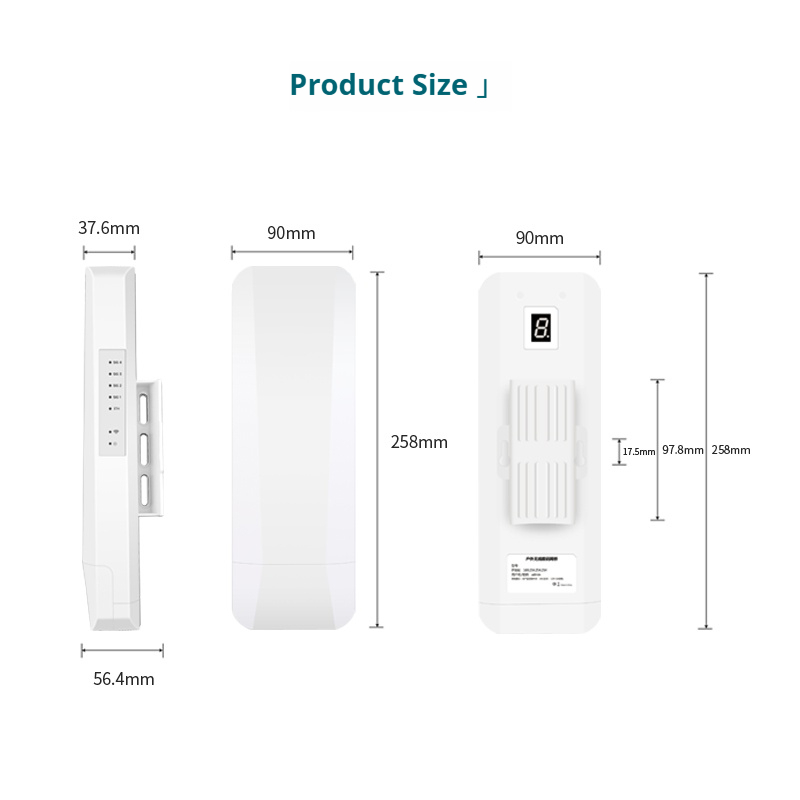

Dimensions |

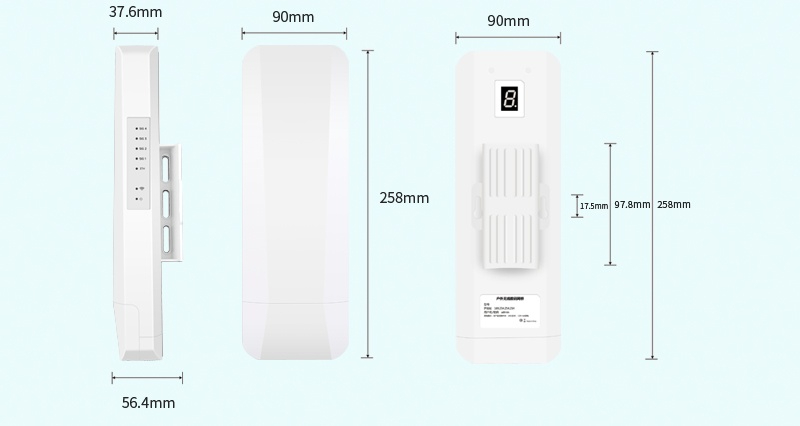

258*90*56.4mm |
|
Weight |
0.4kg |
|
WiFi Spec |
|
|
Frequency Range |
5G: UNII-1: 5.15~5.35GHz UNII-2: 5.47~5.725GHz UNII-3: 5.725~5.825GHz |
|
Channel |
36,40,44,48,52,60,64,149,153,157,161,165 |
|
Modulation |
802.11a: OFDM (BPSK, QPSK,16-QAM) 802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM) 802.11ac: OFDM (BPSK, QPSK,64-QAM, 256-QAM) |
|
Transmission Rate |
11a up 54Mbps,11n up 300Mbps, 11ac up 900Mbps |
|
Receiver Sensitivity |
11a:≤-86±1.5dBm @6Mbps, ≤-69±1.5dBm @54Mbps 11n 20MHz:≤-85±1.5dBm@MCS0, ≤-67±1.5dBm @MCS7 11n 40MHz:≤-82±1.5dBm @MCS0, ≤-64±1.5dBm @MCS7 11ac 20MHz:≤-84±1.5dBm @MCS0, ≤-59±1.5dBm @MCS8 11ac 40MHz:≤-82±1.5dBm @MCS0, ≤-56±1.5dBm @MCS9 11ac 80MHz:≤-78±1.5dBm @MCS0, ≤-52±1.5dBm @MCS9 |
|
Transmit Power |
11a: 23dBm±1.5dBm@54Mbps 11n(20/40MHz): 23dBm±1.5dBm@MCS7 11ac(40/80MHz): 23dBm±1.5dBm@MCS9 |
|
Software Functions |
|
|
Operation Mode |
Master, Slave |
|
Network Topology |
Point-to-Point, Point-to-Multipoint (up to eight points) |
|
Management Method |
Web remote management/Cloud platform remote management |
|
Status |
System Status, Bridge Status, Interface Status |
|
Wireless |
Wireless Mode: Master/Slave Master: Link Name, Password, Wireless Protocol, Frequency Band, Wireless Channel, RF Power, Terminal Restriction Slave: Link Name[Scanning], Encryption Mode, Password, Master MAC, RF Power WiFi Settings: WiFi switch, Hide WiFi, WiFi Name, Encryption Mode, WiFi Password Advanced Setting: RTS/CTS Threshold, Beacon Cycle, Fragmentation Threshold |
|
Network |
Operating Mode: Bridge/Gateway Mode Management IP Settings: Automatic Acquisition/Static IP Cloud Management |
|
System |
System Settings, Change Password, Backup/Upgrade, Restart |
|
Wizard |
Wireless Settings-Network Settings-Summary |
