| Product name | 2.4GHz Dipole antenna |
| Electric Specification | |
| Model NO | D405126 |
| Frequency Range-MHz | 2400-2500 |
| Bandwidth-MHz | 100 |
| Gain-dBi | 5 |

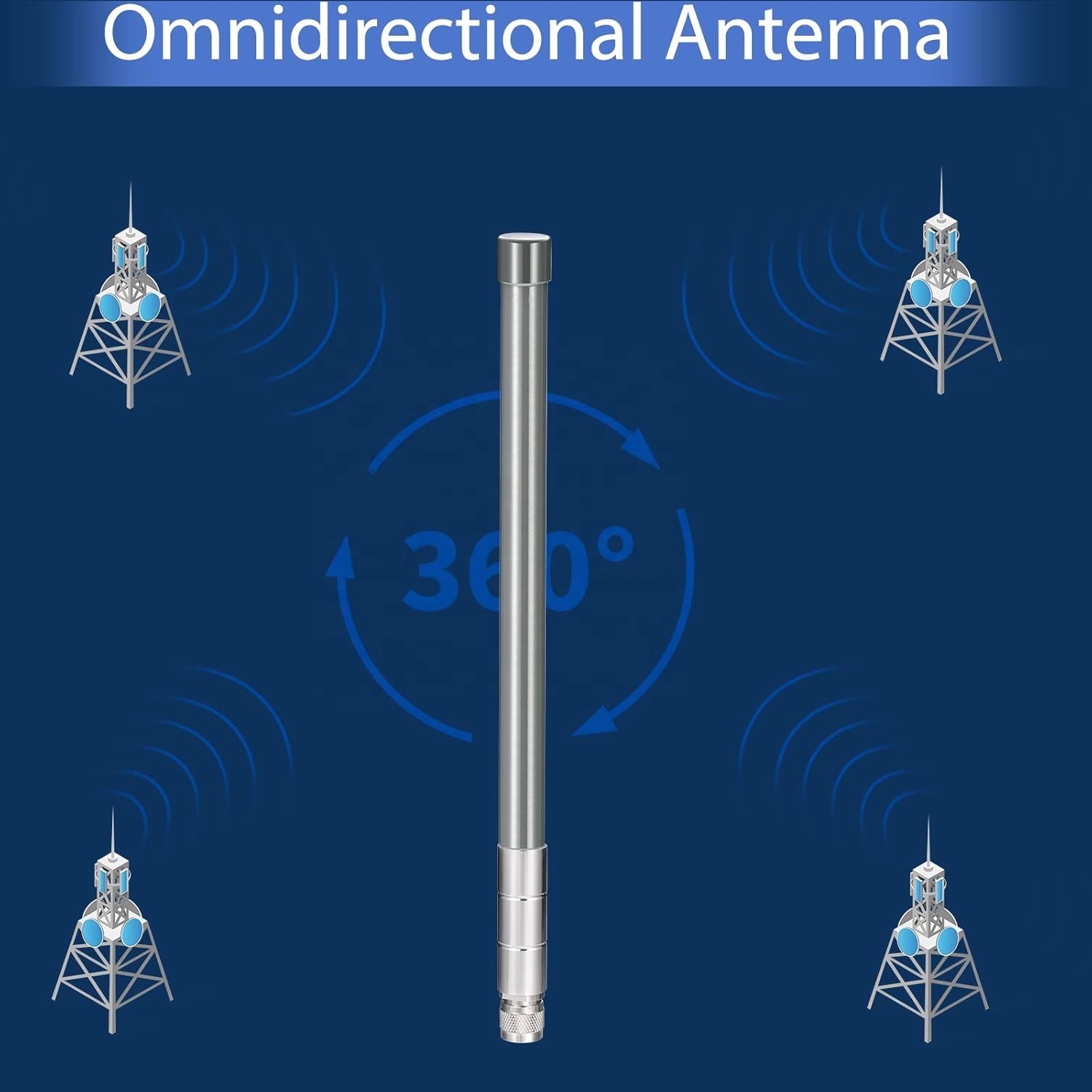

| Horizontal Beam width-° | 360 |
| Vertical Beam width -° | 5 |
| VSWR | ≤1.5 |
| Input Impedance -Ω | 50 |
| Polarization | Vertical |
| Maximum Power -W | 100 |

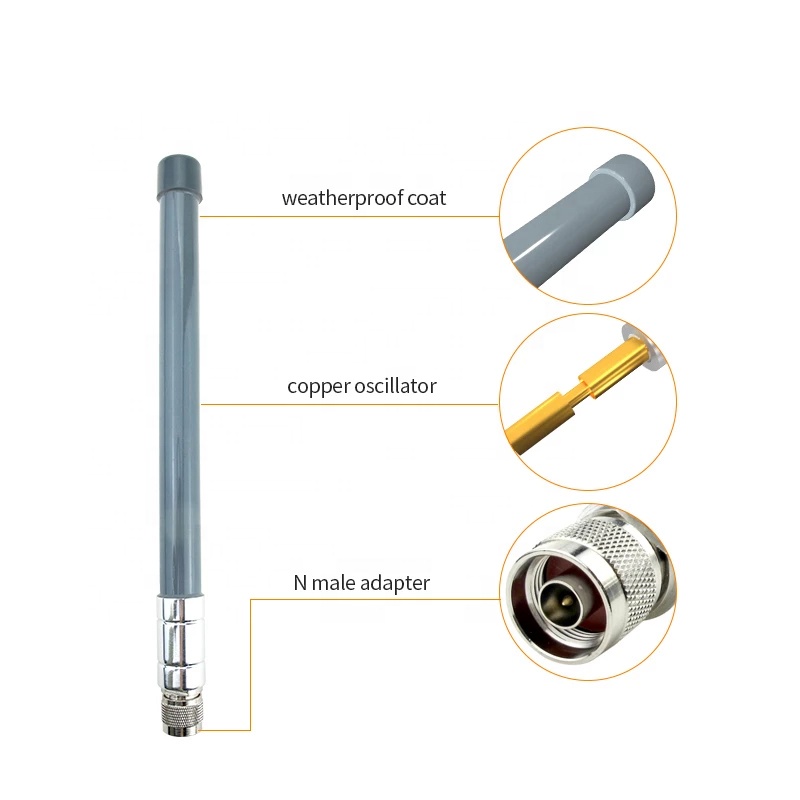

| Connector | N Female |
| Mechanical Specification | |
| Dimension-mm | Φ20×600 |
| Weight | 1 |
Packaging & Shipping
Q1: Can I print my logo on the product? Can I customize the colors and finish type?
A: Yes, all appearances are customizable.
Q2: I like the design but want to change the solution, is it possible?
A: Yes we can do that.
Q3: I like the solution/audio but want my own design, is it possible?
A: Yes, we specialize in customized designs for our customers, we can even do new designs for you and give you concepts within a week time.
Q4: I want a different type of packaging, is it possible?
A: Yes. Currently 1000 charges, more than 2,000 the number of and free .(according to the type of carton or plastic packaging).
Q5: I want samples with my own logo, is it possible?
A: Yes it is possible. A small charge may apply depending on requirements.
Q6: How long is the sample time? And the payment term?
A: Samples will be transport in 7-10 days normally, OEM samples will be 10-15 days. You can pay sample fee via Paypal ,Western Union or T/T.
Q7: Are you factory or trading company? And how many stuff do you own?
A: Our enterprises in Shenzhen to create antenna at least ten years of production experience. Our staff in factory 100-200.
