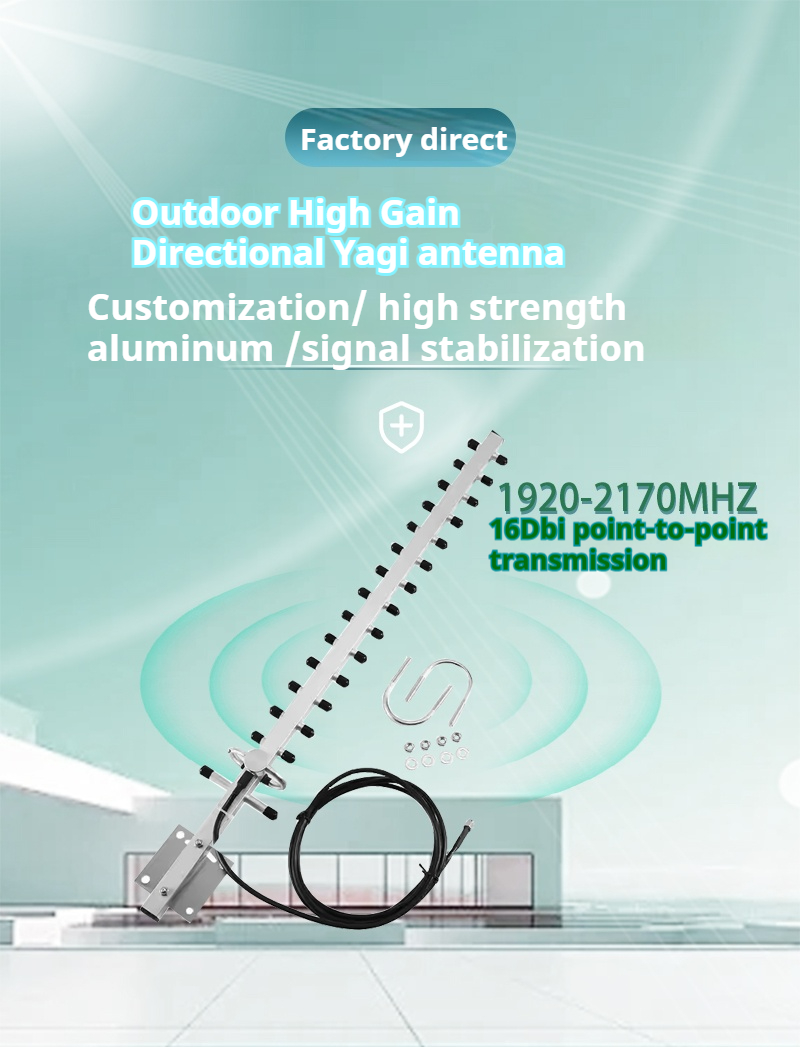

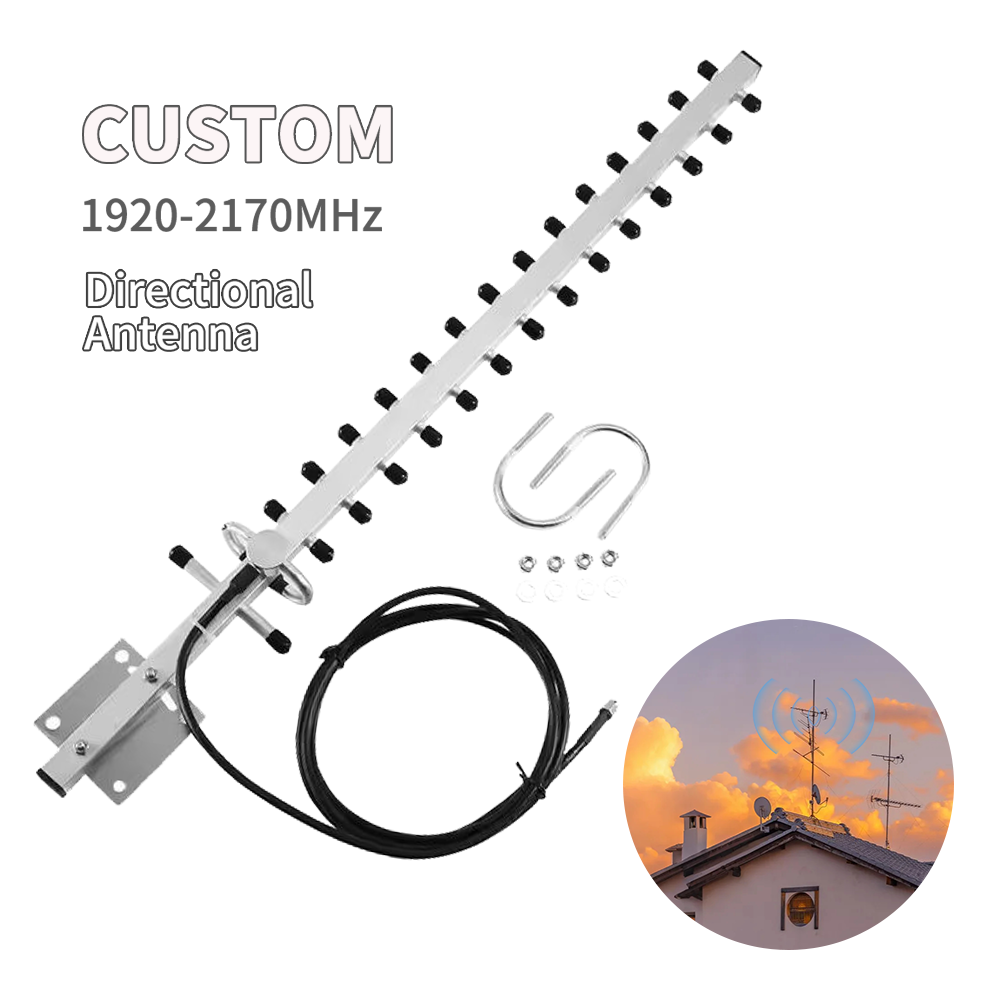

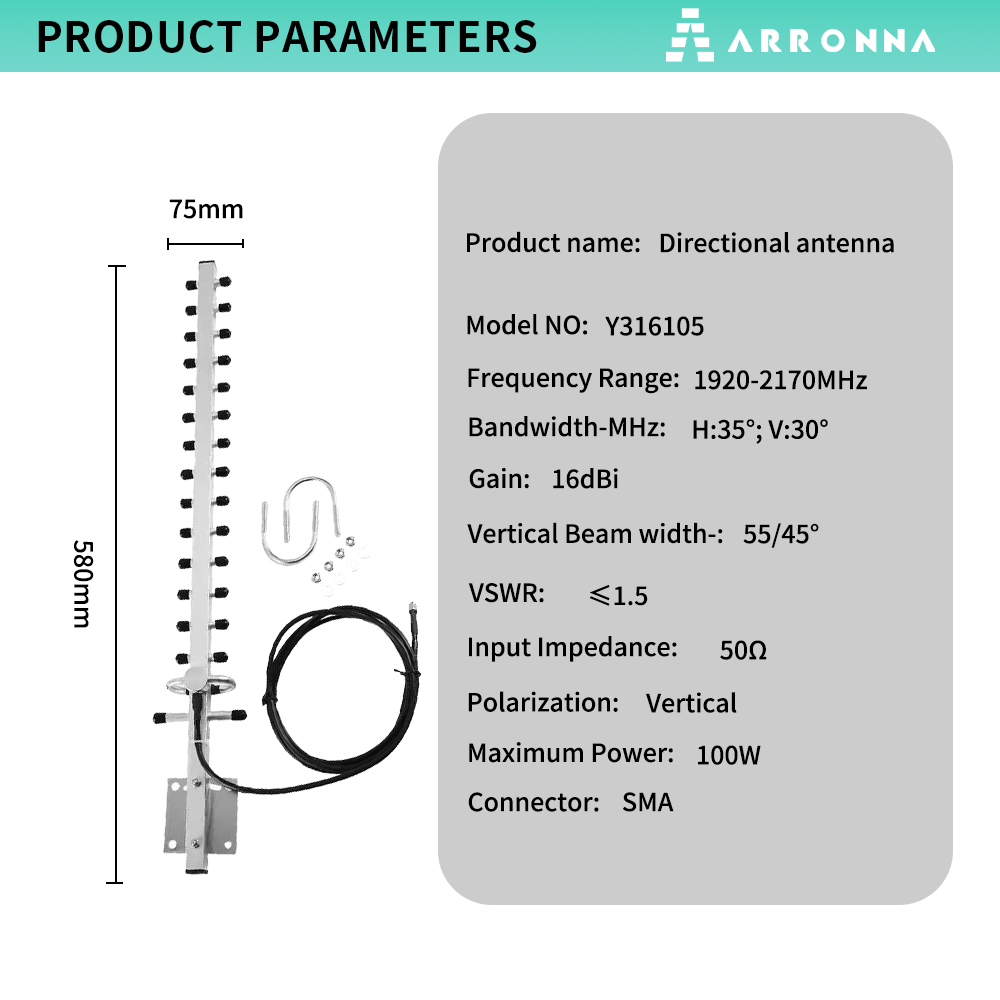

Electric Specification (Yagi Antennas) 1920-2170–16Dbi |
|
|
Model NO |
Y316105 |
|
Frequency Range-MHz |
1920-2170-MHz |
|
Gain-dBi |
16-dBi |
|
Bandwidth-MHz |
H:35°; V:30° |
|
Front and Back ratio-dB |
≥16 |
|
VSWR |
≤1.5 |
|
Polarization |
Vertical |
|
Maximum input power |
100 -W |
|
Input Impedance-Ω |
50 -Ω |
|

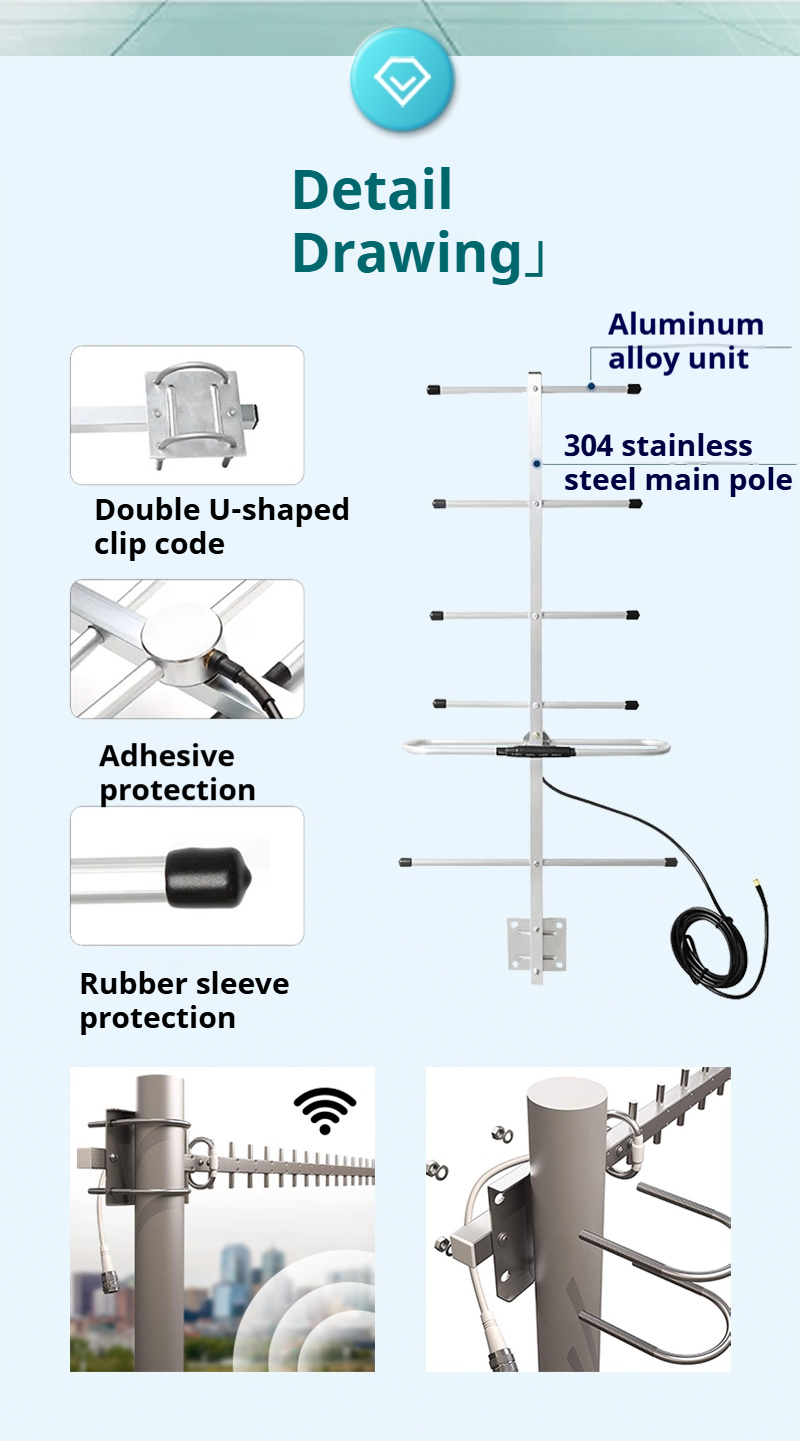

Mechanical Specification |
|
|
Connector |
SMA |
|

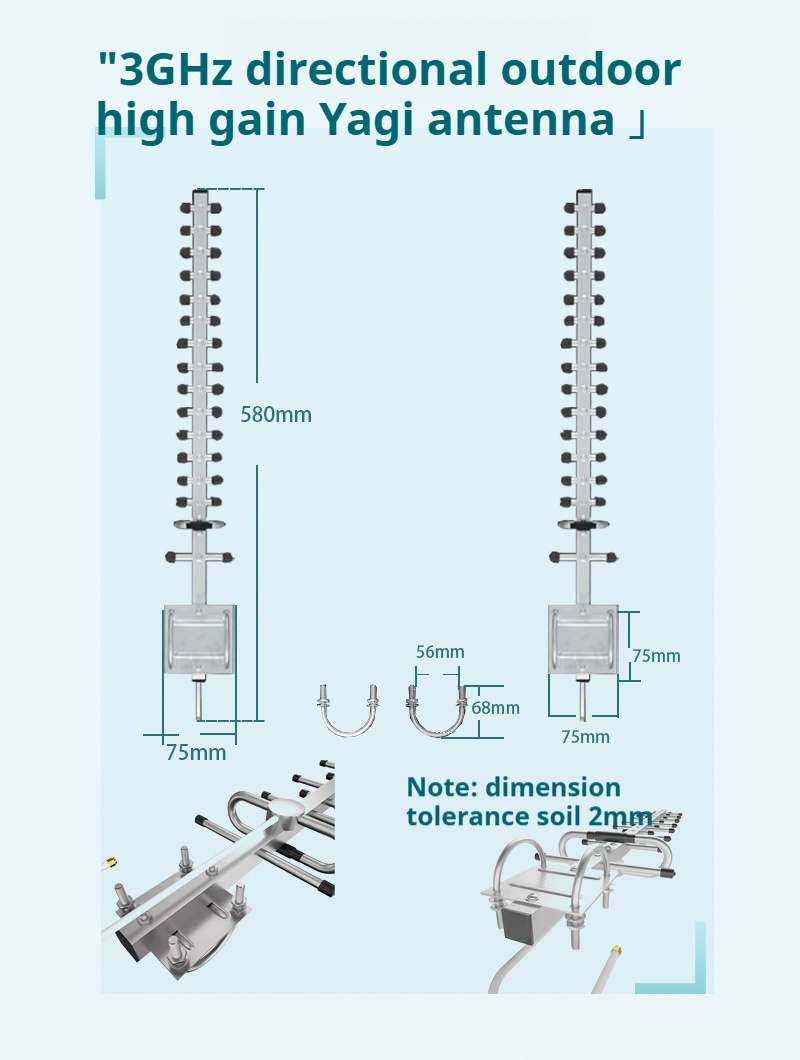

Size |
580x75x45-mm |
|
Weight |
0.62Kg |
|

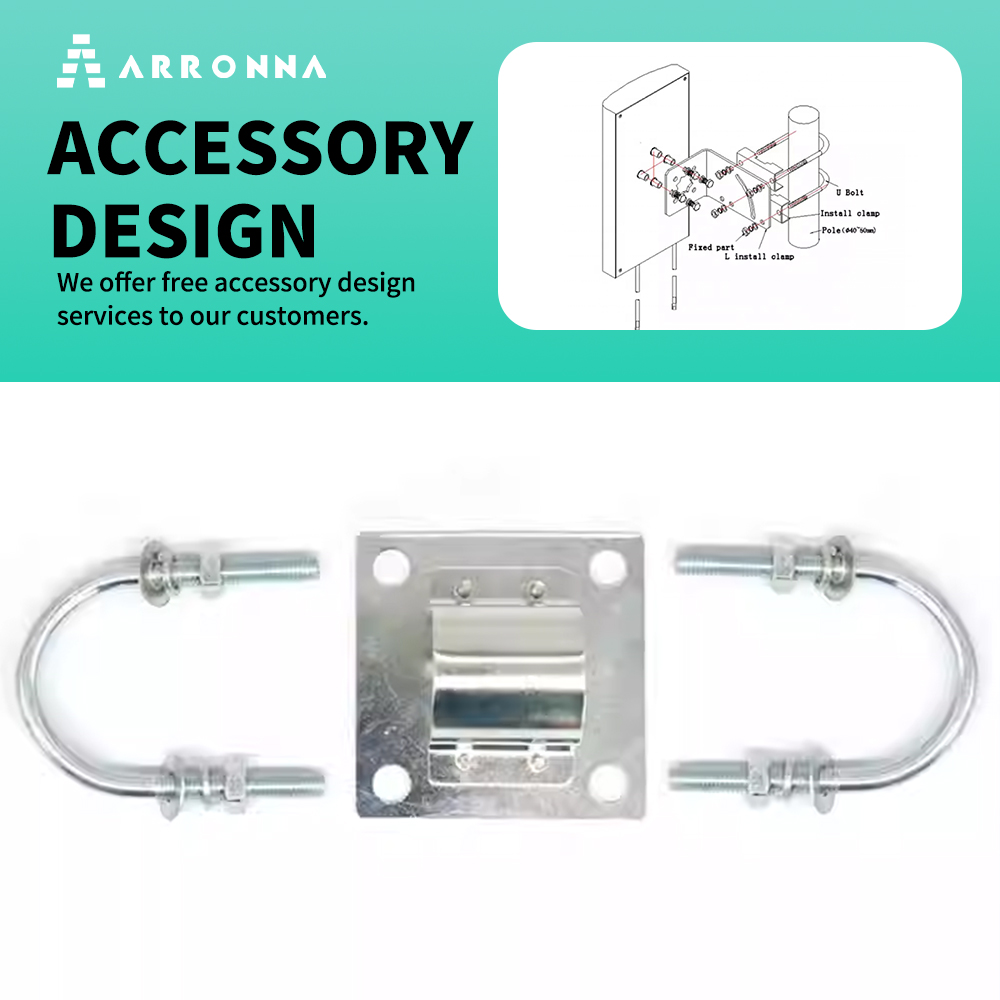

Holding pole |
Φ40 to Φ50-mm |
|
Temperature |
-40 to +60-℃ |
|
Material |
aluminium |
|
Wind resistance |
60-m/s |
