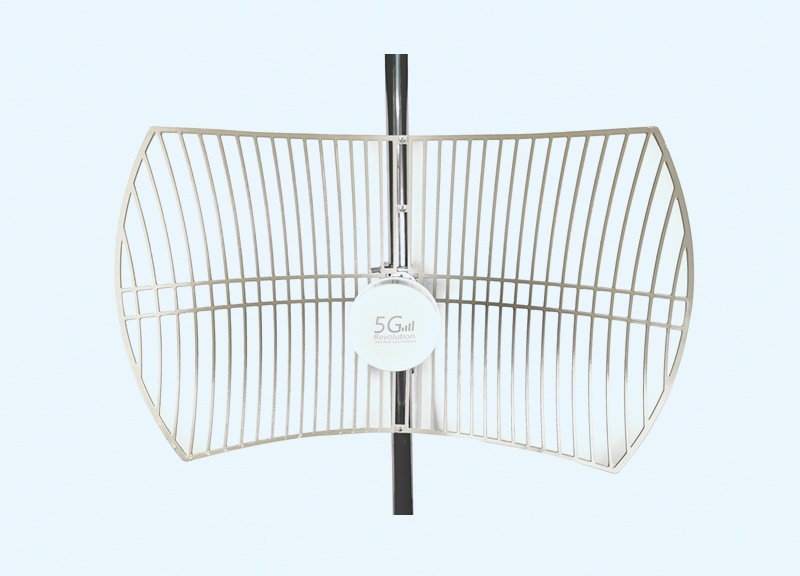

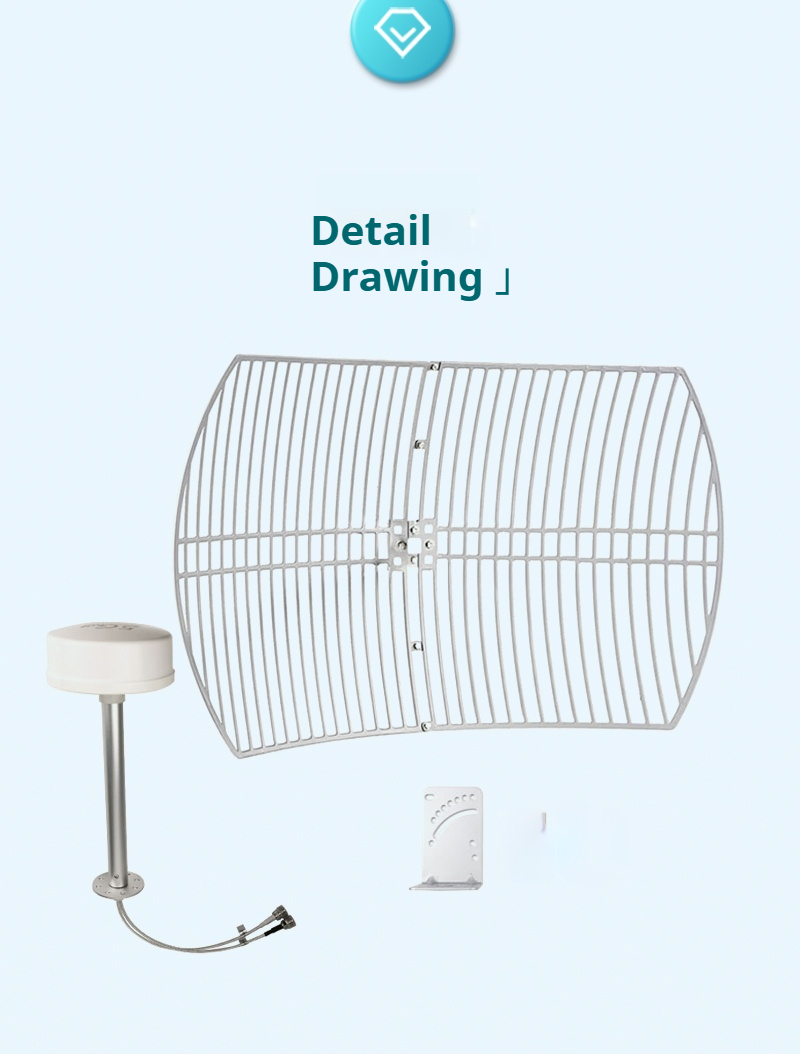

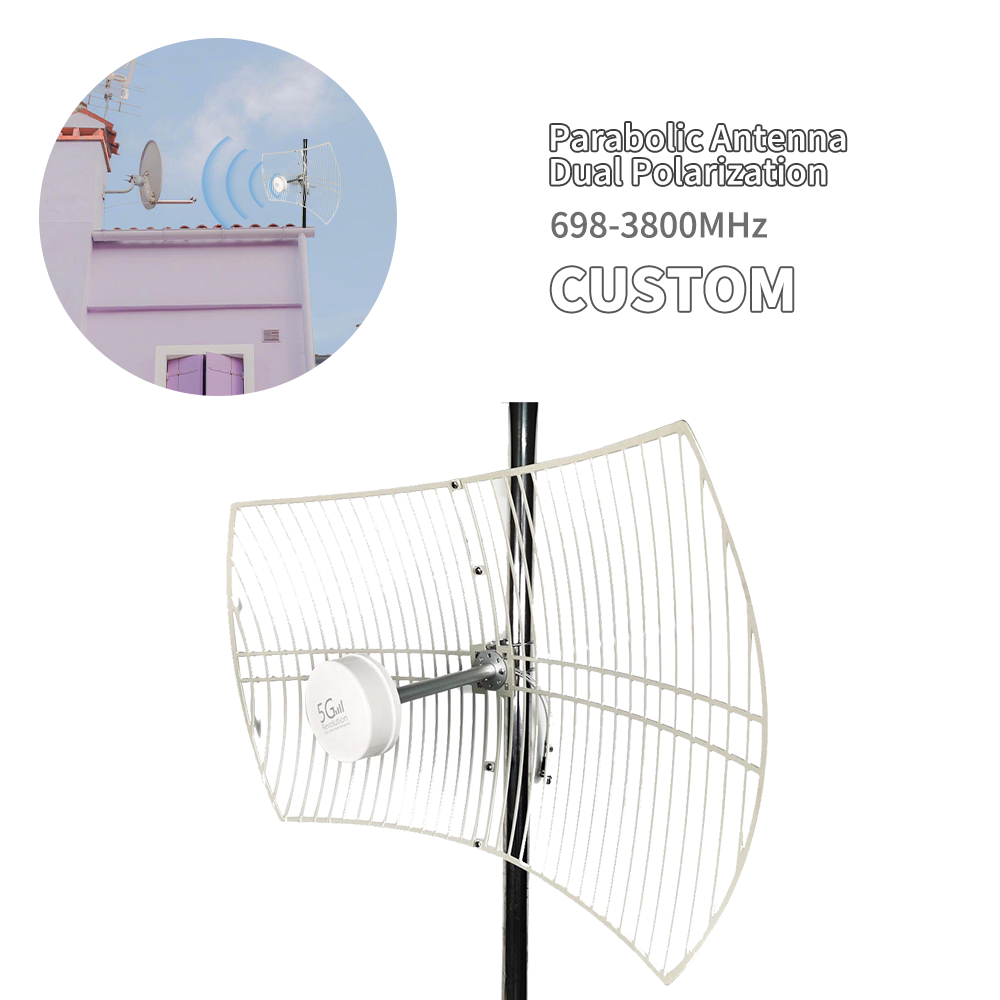

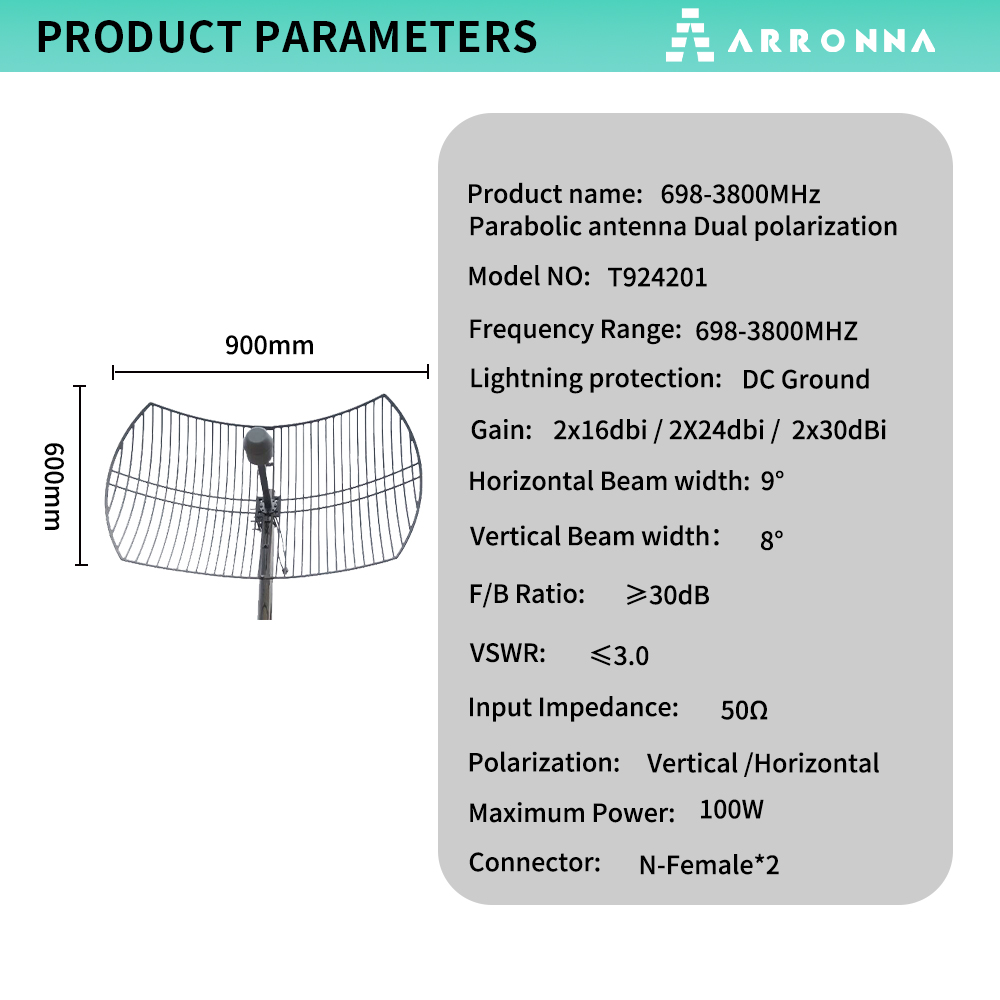

| Product name | 698-3800MHz Parabolic antenna Dual polarization |
| Electric Specification | |
| Frequency Range | 700-960/ 1700-2700 / 3300-3800MHz |
| Gain | 2x16dbi / 2X24dbi / 2x30dBi |
| Polarization | Vertical and Horizontal |
| Horizontal Beanwidth | 9° |
| Vertical Beamwidth | 8° |
| F/B Ratio | ≥30dB |
| VSWR | ≤3.0 |
| Input Impedance | 50Ω |
| Maximum input power | 100W |
| Lightning protection | DC Ground |
| Connector | N Female |
| Mechanical Specification | |

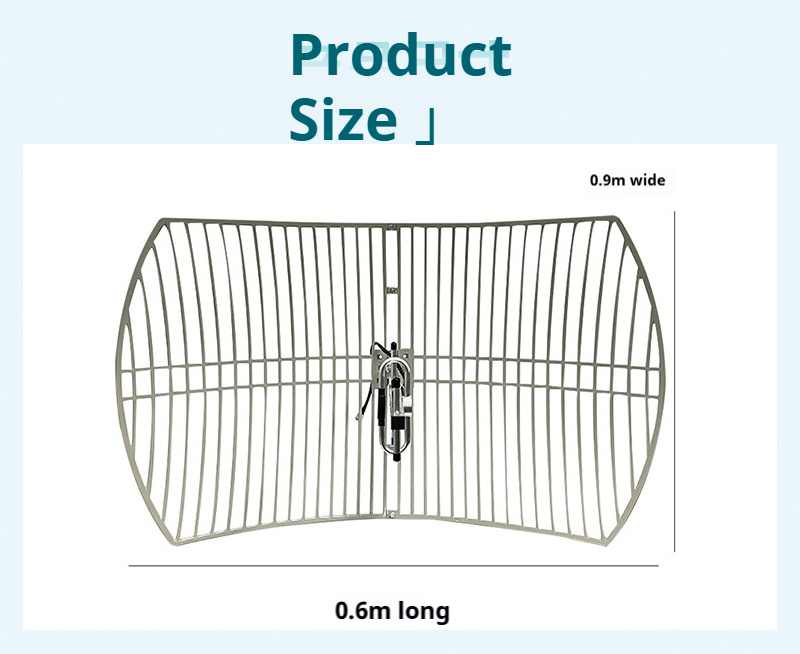

| Dimensions | 60x90cm |
| Antenna weight | 2.9 kg |
| Mounting Mast Diameter | Φ35-50mm |
| Operating temperature | -40℃~85℃ |
| Rated Wind Velocit | 60m/s |
