Product name |

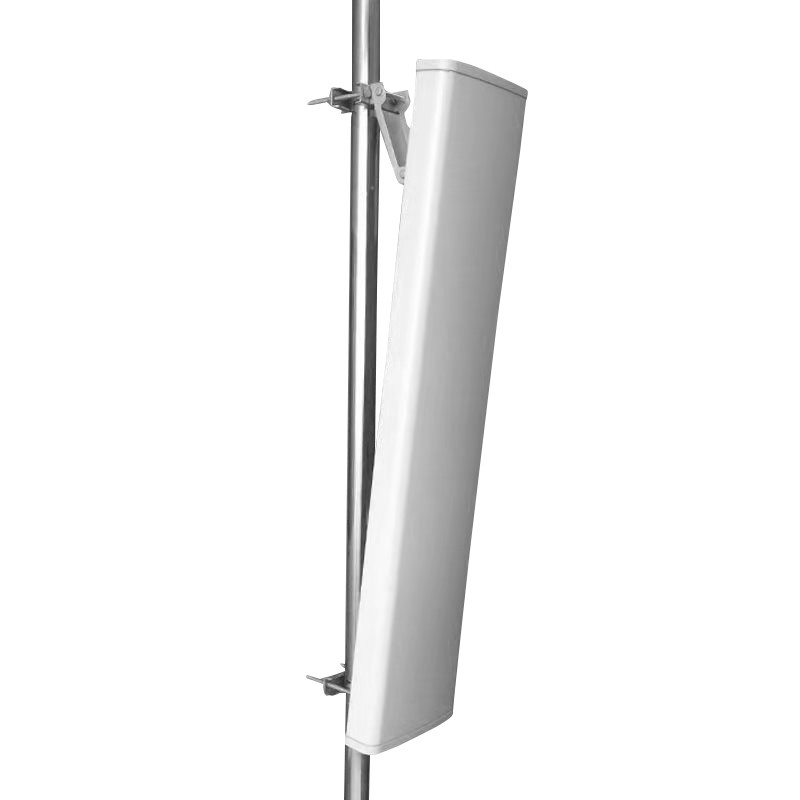

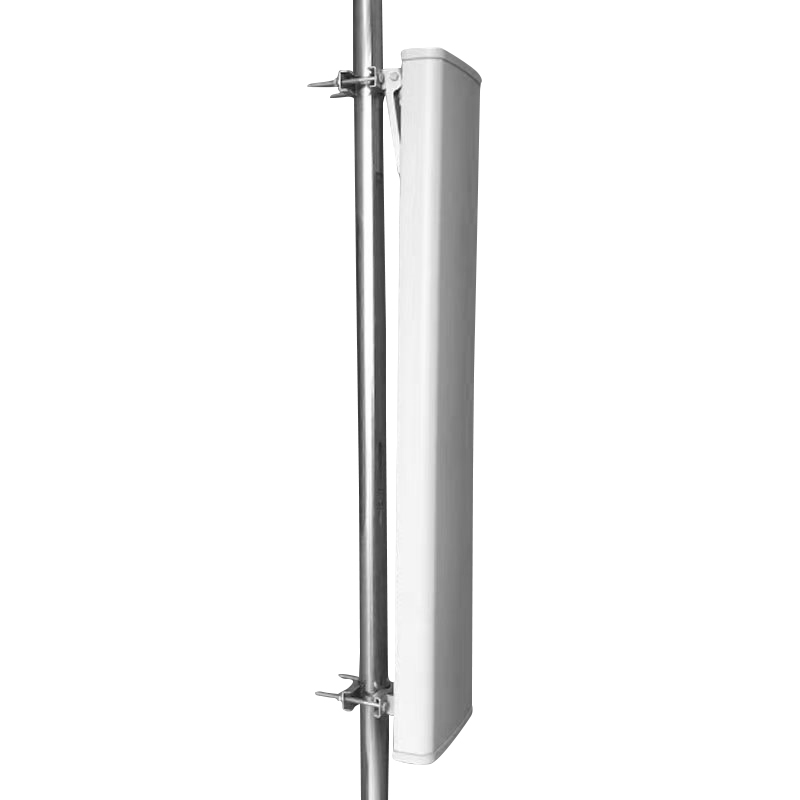

870-2660MHZ single polarization sector antenna |
|
Electric Specification |
|
|
Model |
S209618 |
|
Frequency Range-MHz |
870-880/925-960/1805-1850/2010-2025/2110-2170/2550-2660 |
|
Bandwidth-MHz |
10/35/45/15/60/10 |
|
Gain-dBi |
8/9DBI |
|
Horizontal beam width–° |
75 |
|
Vertical beam width–° |
65 |
|
F/B Ratio-dB |
20 |
|
VSWR |
≤1.7 |
|
Input Impedance-Ω |
50 |
|
Polarization |
vertical |
|
Maximum Power-W |
100 |
|
Connector-type |
6*N-Female |
|
Mechanical Specification |
|
|
Dimension-mm |
1000*285*125 |
|
Weight-kg |
10 |
