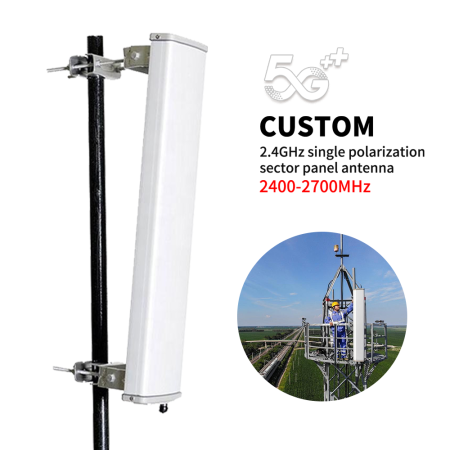

2.4GHz single polarization sector panel antenna
Antenna features
1. -Anti ultraviolet PVC material
2. – Good appearance
3. – Durable ,corrosion resistance
4. – Provide with mount kits
5. – Optimized dimension
Products Description
|
Product name
|
2.4GHz single polarization sector panel antenna
|
|
|
Electric Specification
|
||
|
Model NO
|
S416152 (ARP-SP(2400-2700)-16-120)
|
|
|
Frequency Range-MHz
|
2400-2700
|
|
|
Bandwidth－MHz
|
100
|
|
|
Gain-dBi
|
16
|
|
|
Horizontal Beam width-°
|
120
|
|
|
Vertical Beam width -°
|
7
|
|
|
F/B Ratio－dB
|
20
|
|
|
VSWR
|
≤1.5
|
|
|
Input Impedance -Ω
|
50
|
|
|
Polarization
|
Vertical
|
|
|
Maximum Power -W
|
200
|
|
|
Connector
|
N female
|
|
|
Mechanical Specification
|
||
|
Dimension-mm
|
965X180X90
|
|
|
Weight
|
5
|
|

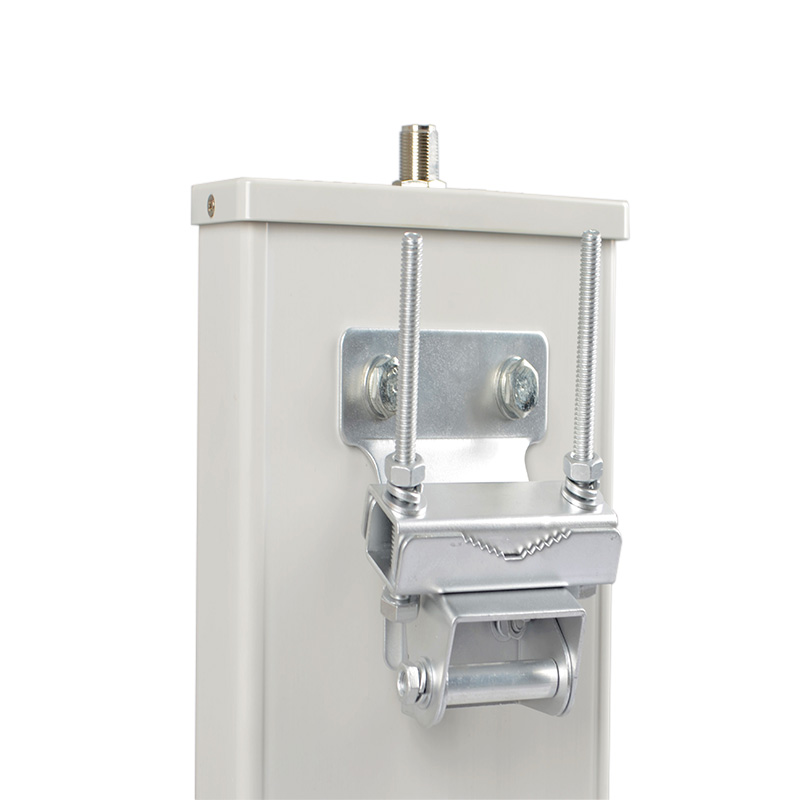

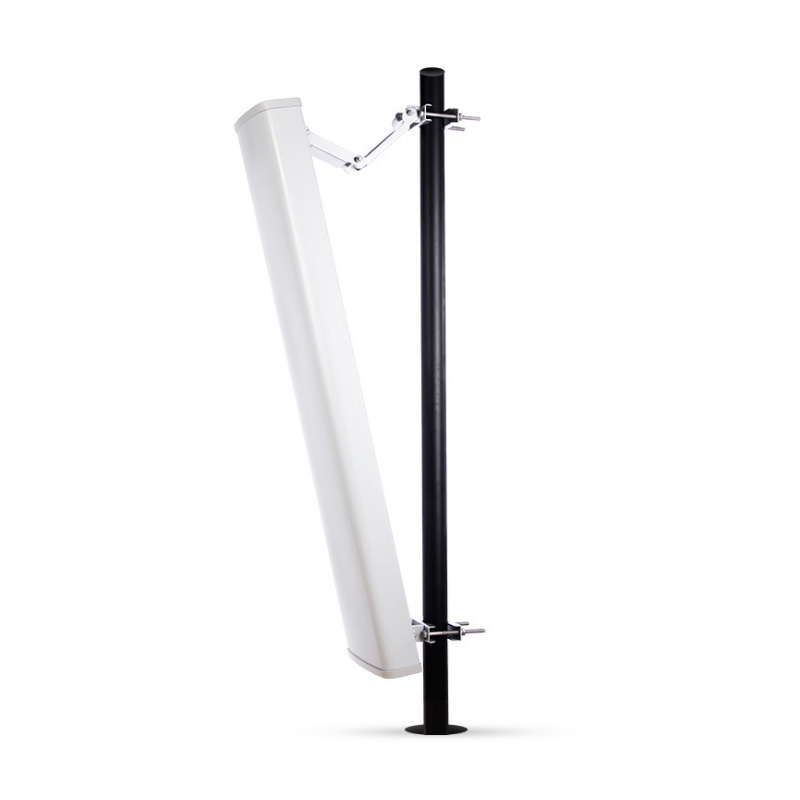

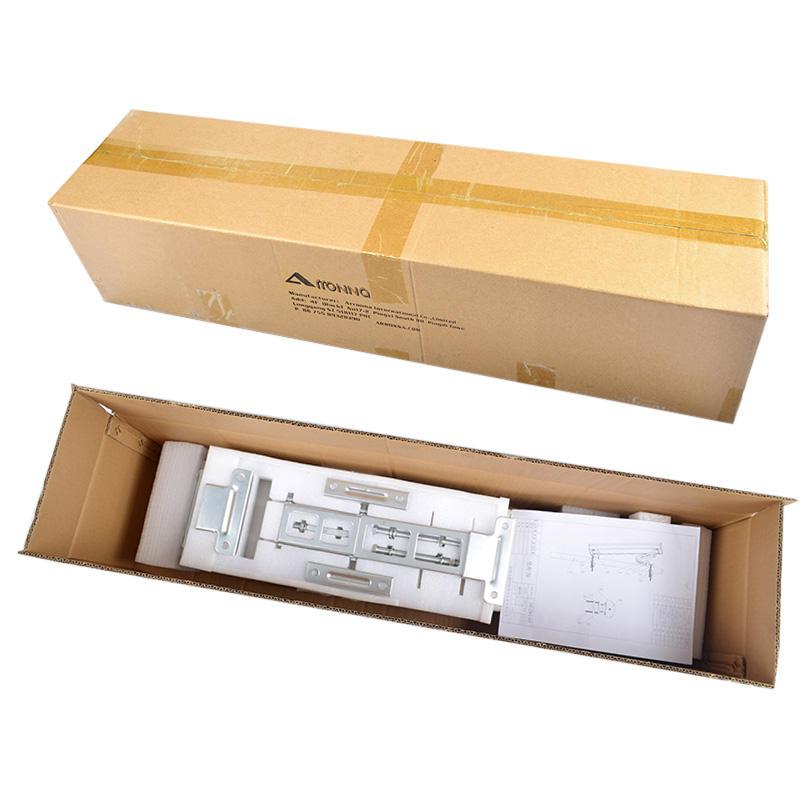

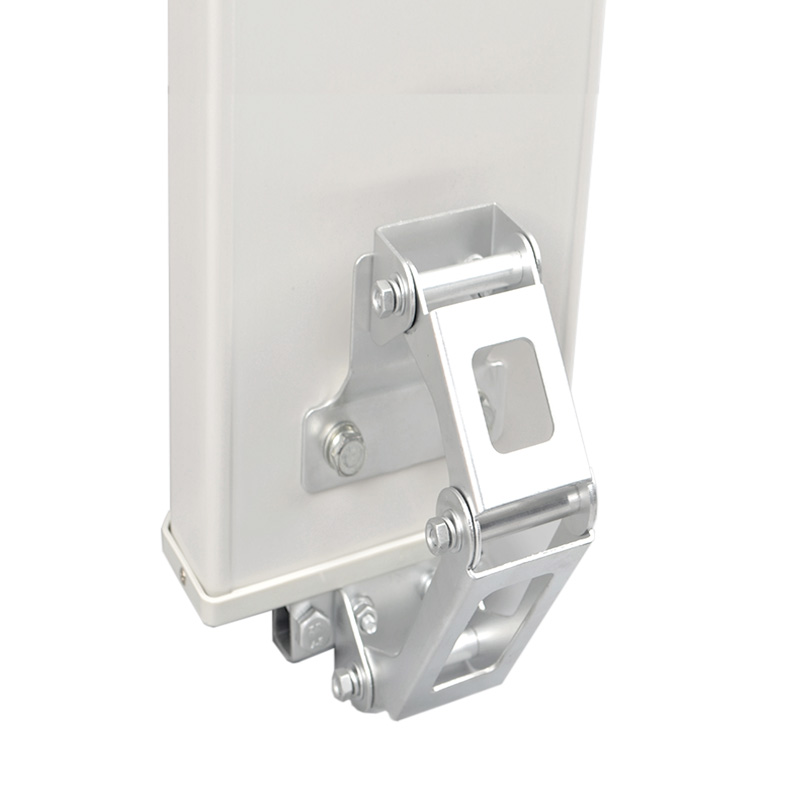

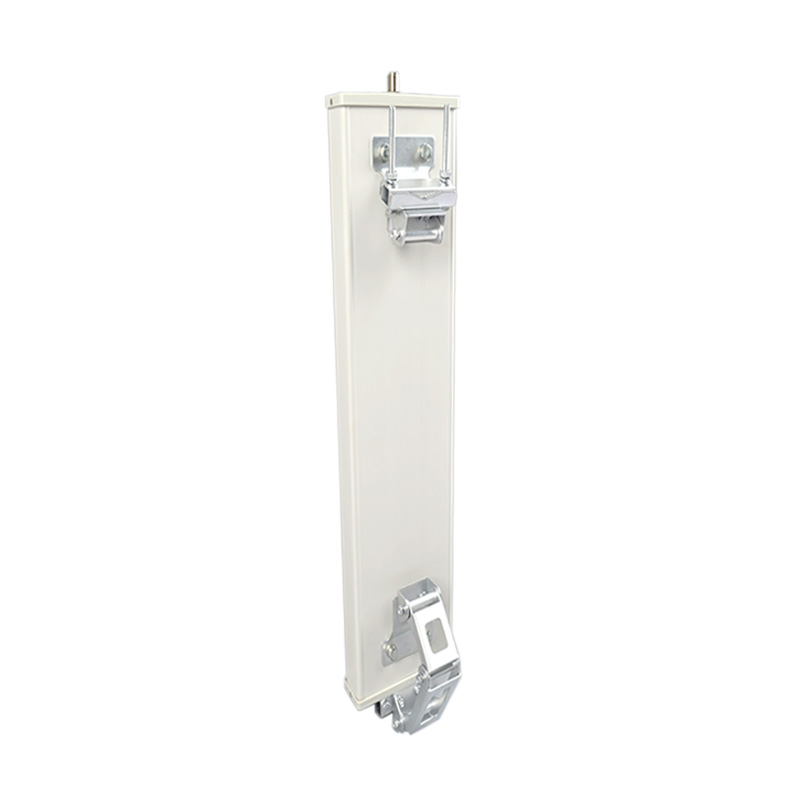

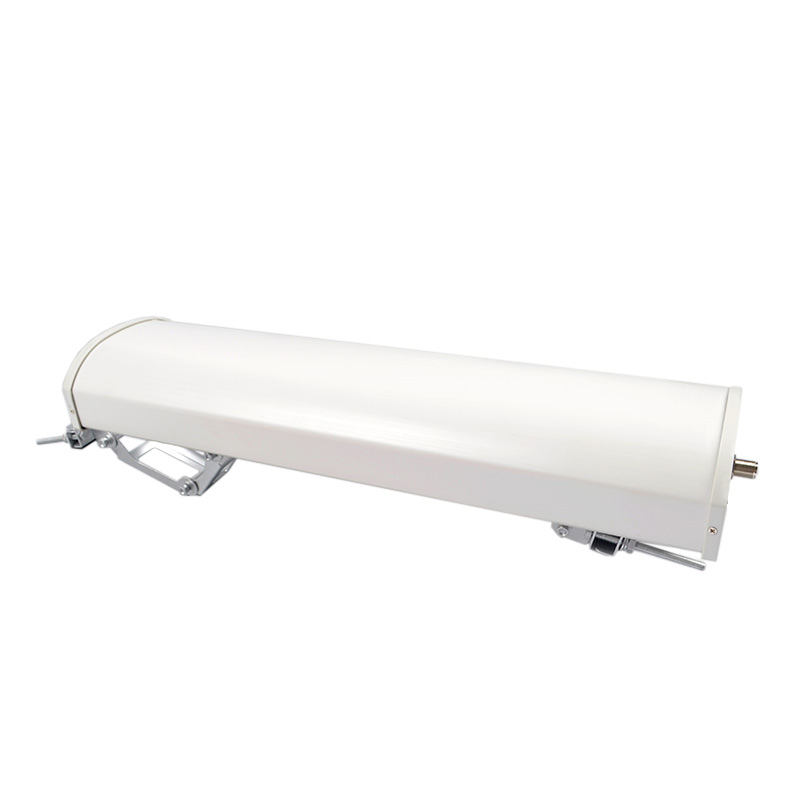

Details Images

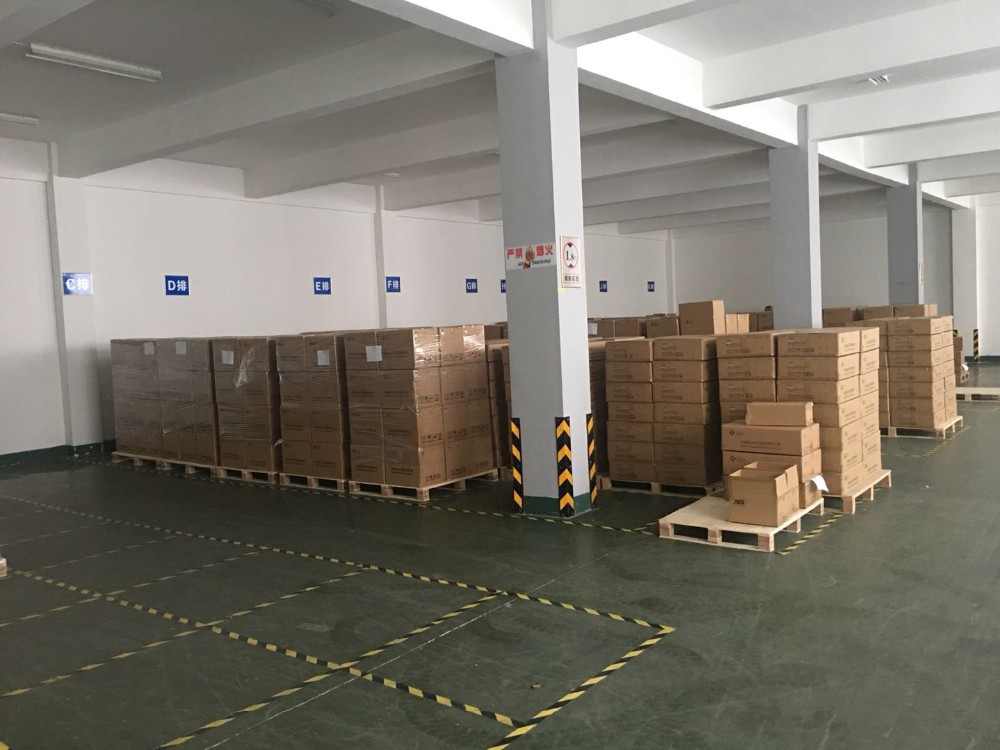

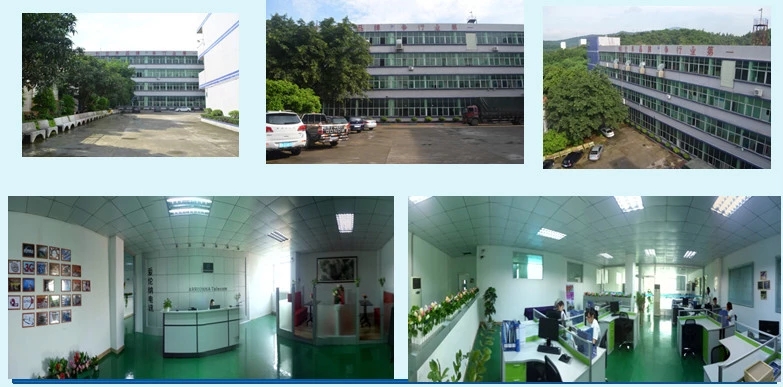

Company Pictures

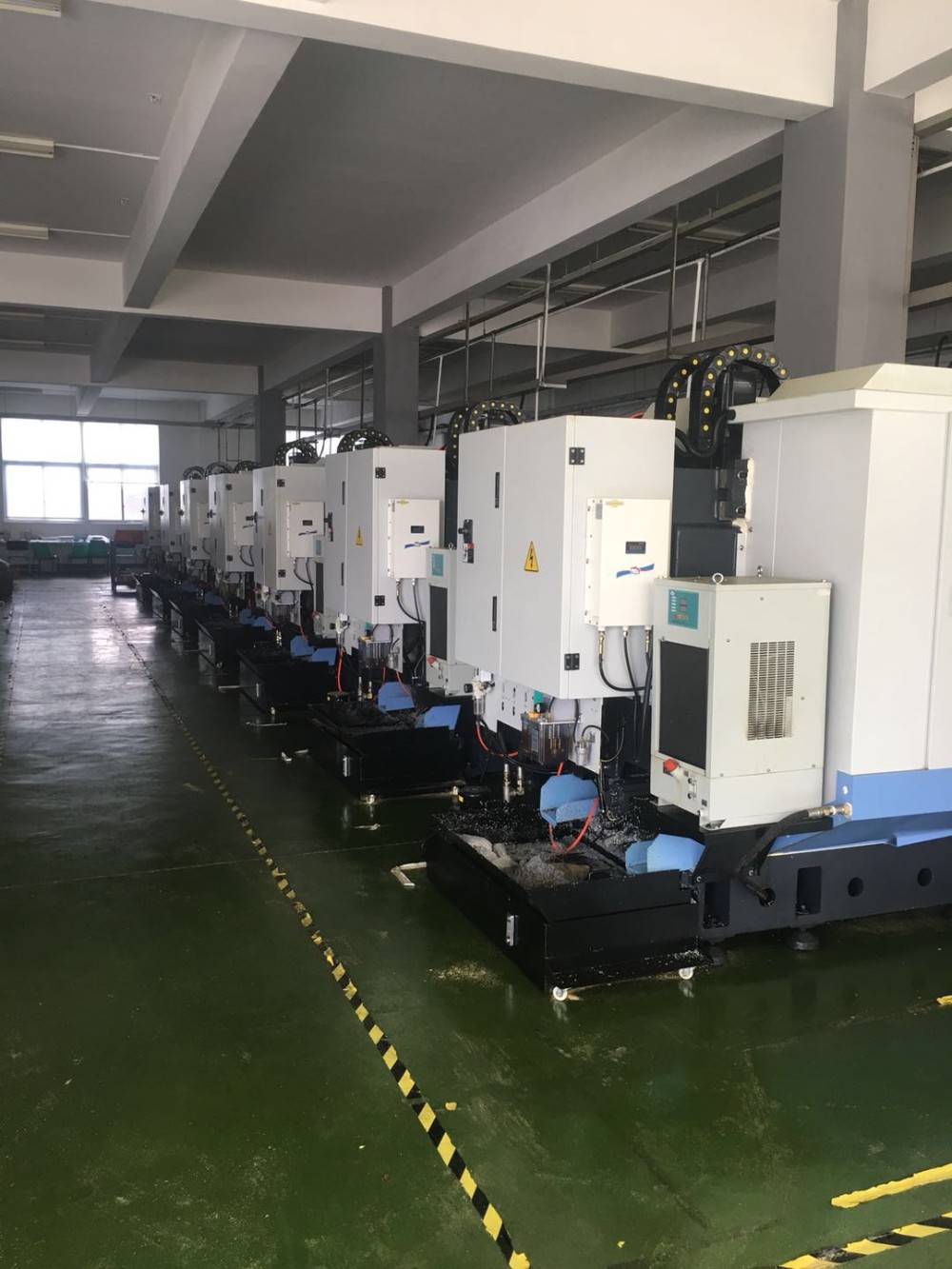

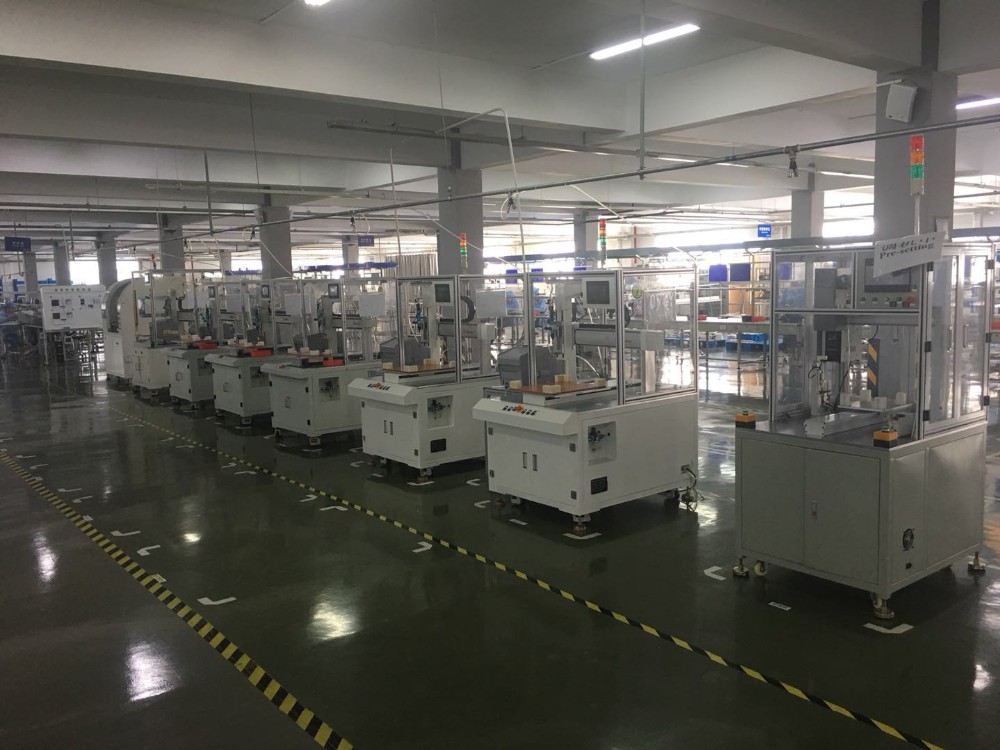

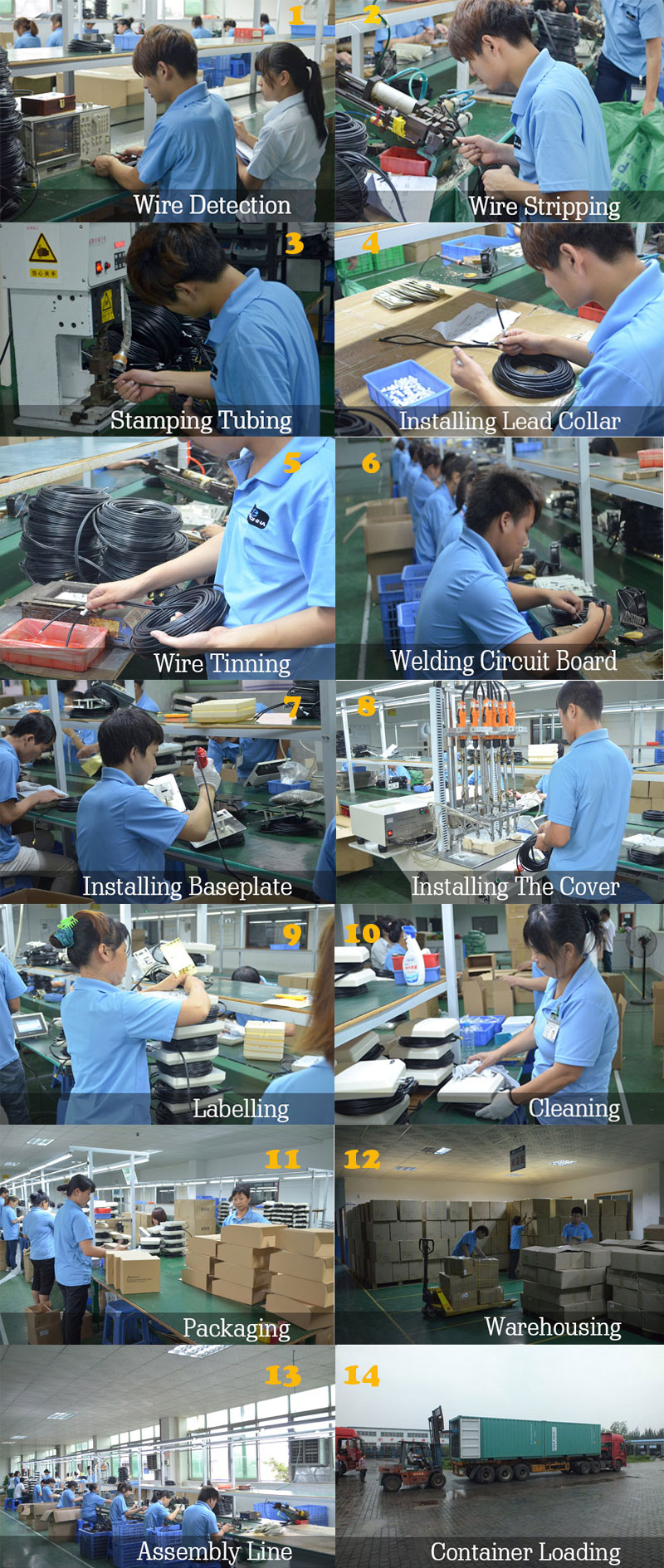

Manufacturing Technique

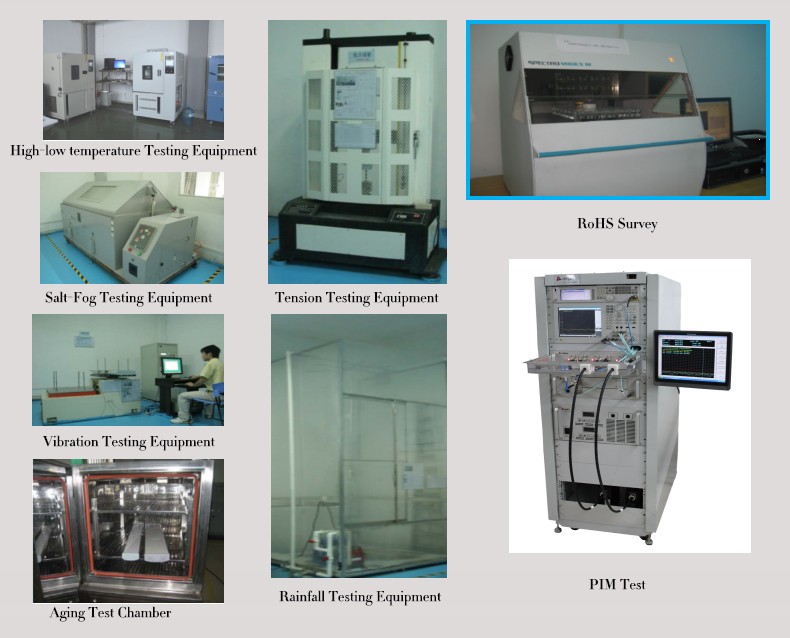

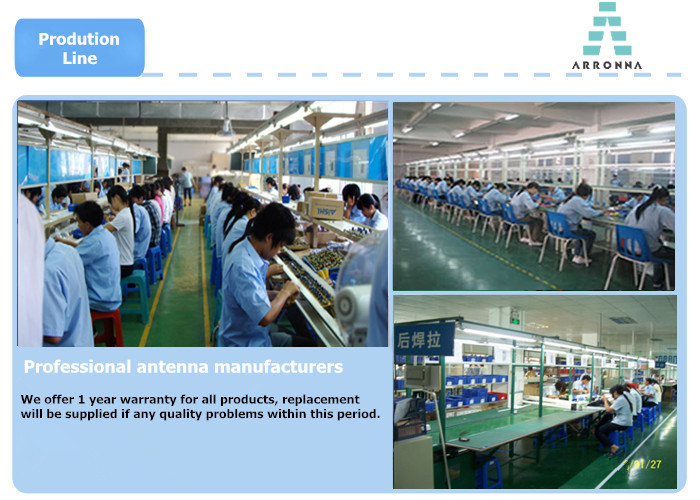

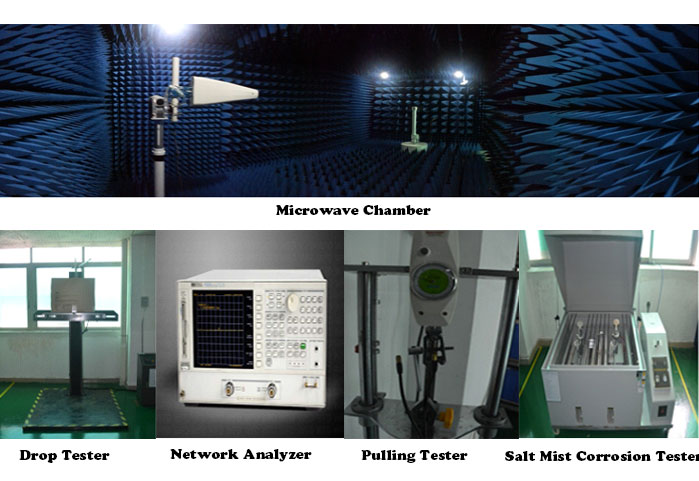

Equipment
Certifications
Exhibitions
