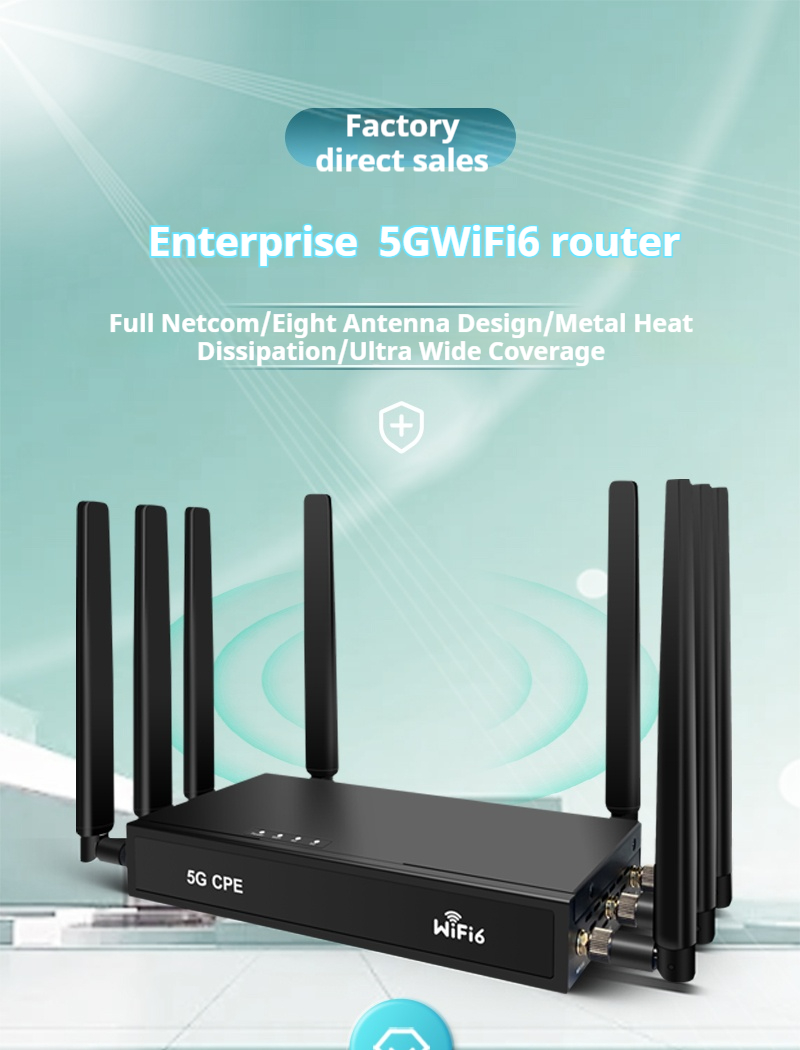

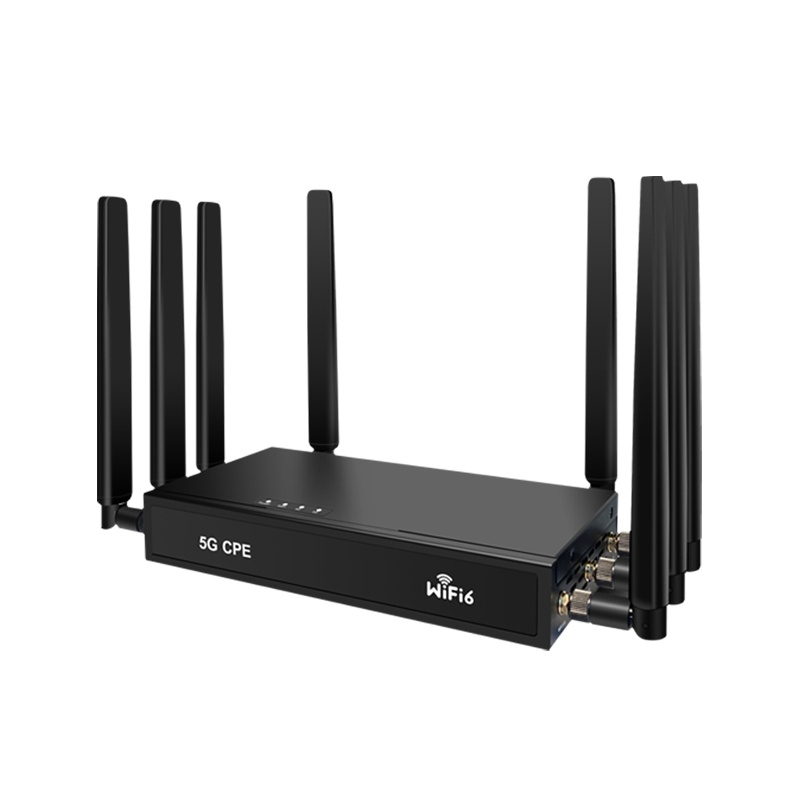

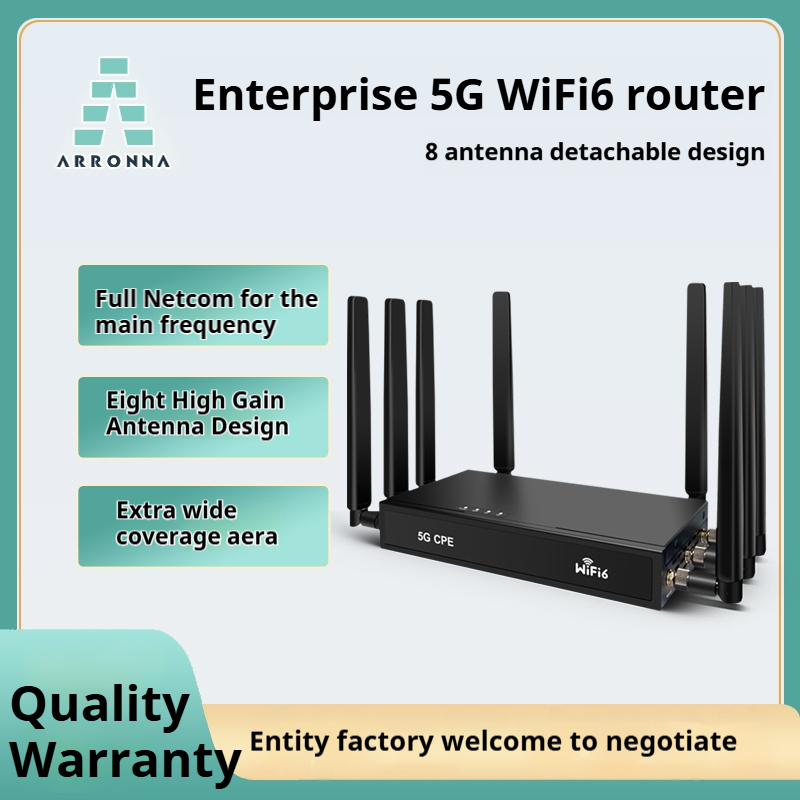

ARCPE1801K 5G WiFi CPE 8 Antenna NR 1800M WiFi6 MTK7621A+MT7905DAN+MT7975DN Enterprise-Grade Chip Wireless Router

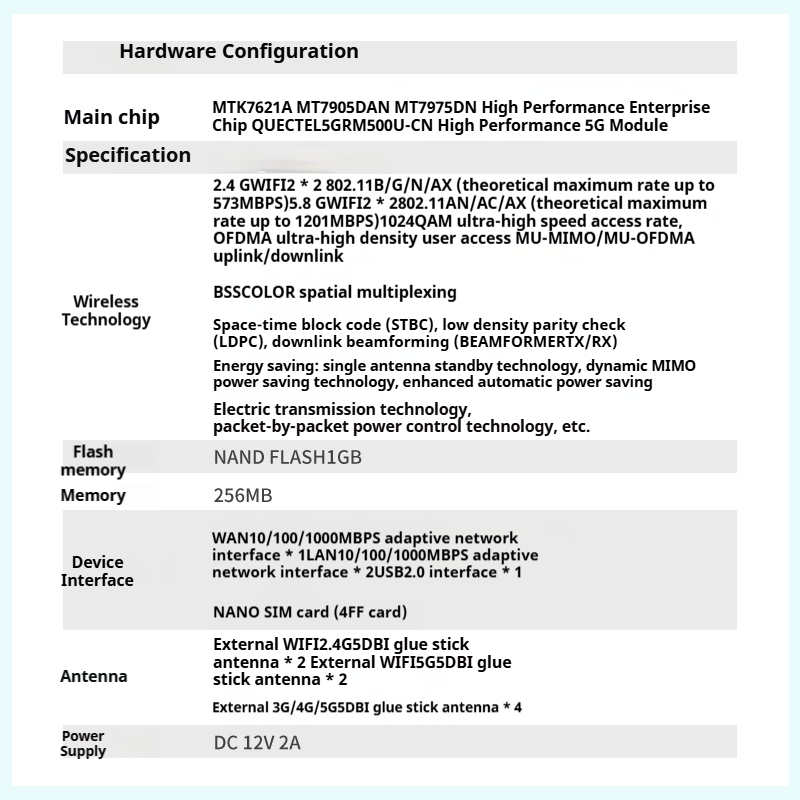

Hardware configuration

Main chipset

MTK7621A+MT7905DAN+MT7975DN

High-performance enterprise-grade chip

QUECTEL 5G RM500U-EA

High-performance 5G module

Main Frequency

Dual-core, 880MHz

Memory

256MB

Flash

NAND 128MB

Wireless Technology

-2.4G WiFi 2*2 802.11b/g/n/ax (Theoretical maximum speed up to 573Mbps)

-5.8G WiFi 2*2 802.11a/n/ac/ax (Theoretical maximum speed up to 1201Mbps)

-1024QAM for high-speed access, OFDMA for high-density user access

-MU-MIMO/MU-OFDMA for uplink/downlink

-BSS Color spatial reuse

-Space-Time Block Coding (STBC), Low-Density Parity Check (LDPC), Beamforming (Beamformer TX/RX) for uplink/downlink

-Power-saving features: Single antenna standby

technology, Dynamic MIMO power-saving technology, Enhanced automatic power-saving transmission

technology, Packet-by-packet power control

technology, etc.

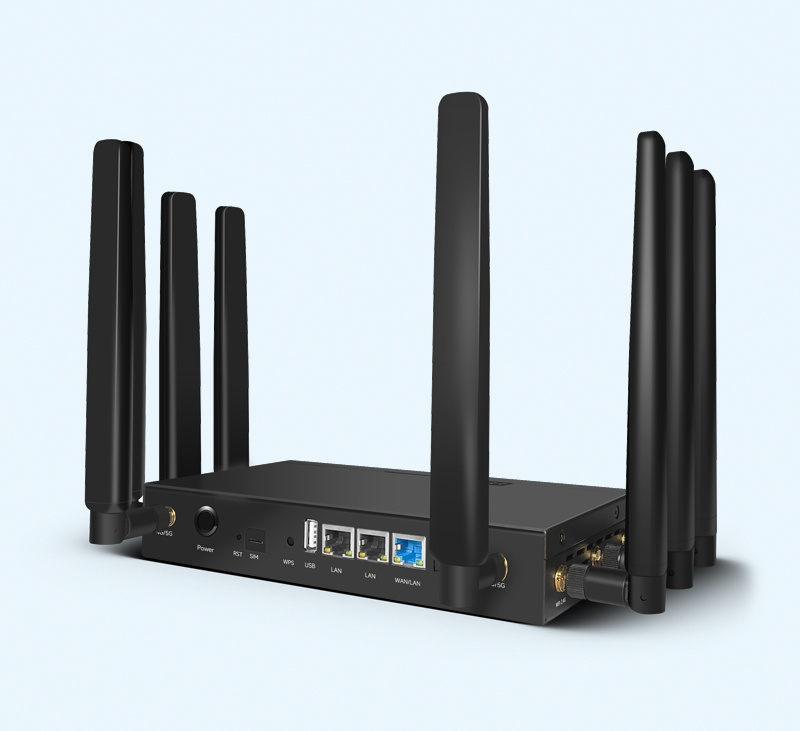

Device interfaces

-WAN 10/100/1000Mbps Adaptive Network Interface *1

-LAN 10/100/1000Mbps Adaptive Network Interface *2

-USB 2.0 Interface *1

-Nano SIM Card (4FF card))

Buttons

1*RESET button for reboot (long press within 3 seconds) and factory reset (long press for more than 3 seconds)

1*WPS button for easy wireless connection without a password

Indicators

PWR, WiFi, 5G, 4G, LAN indicators

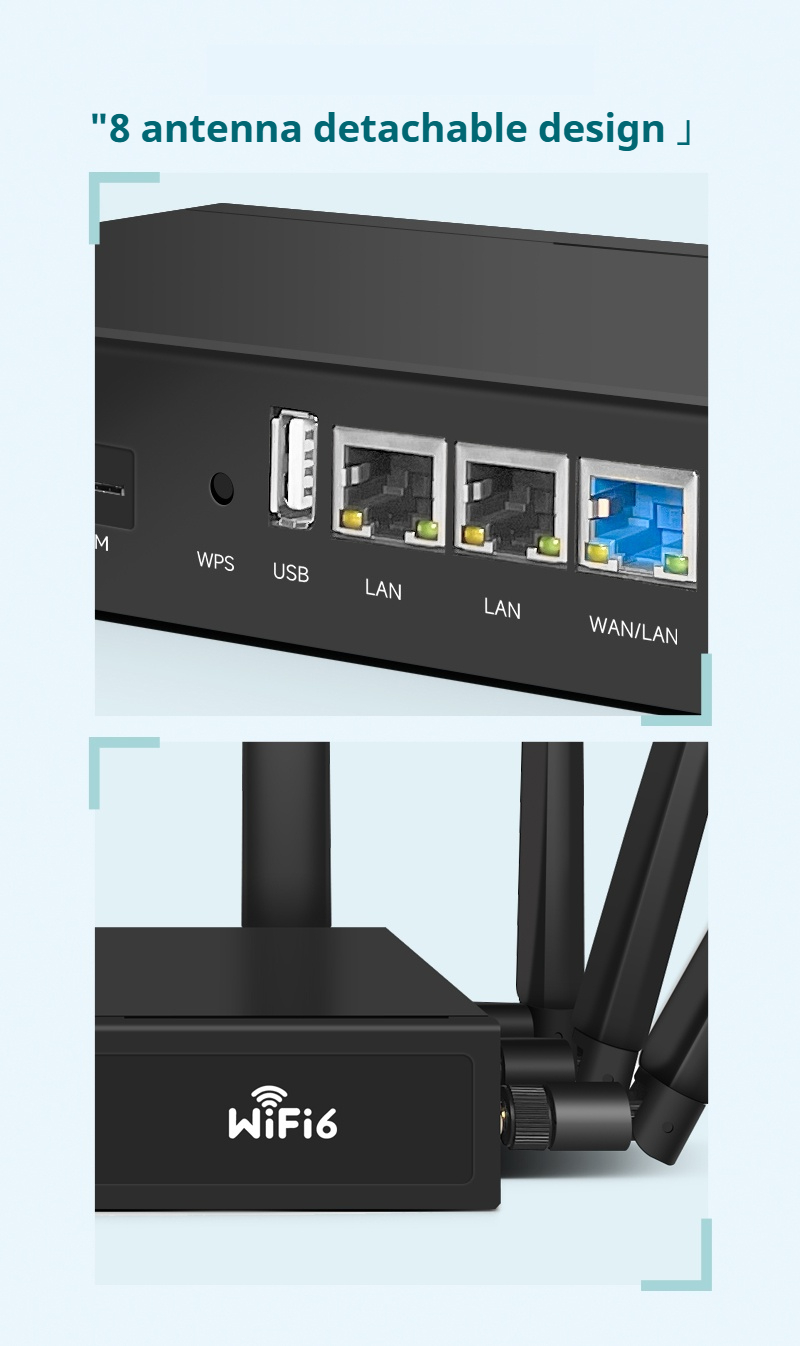

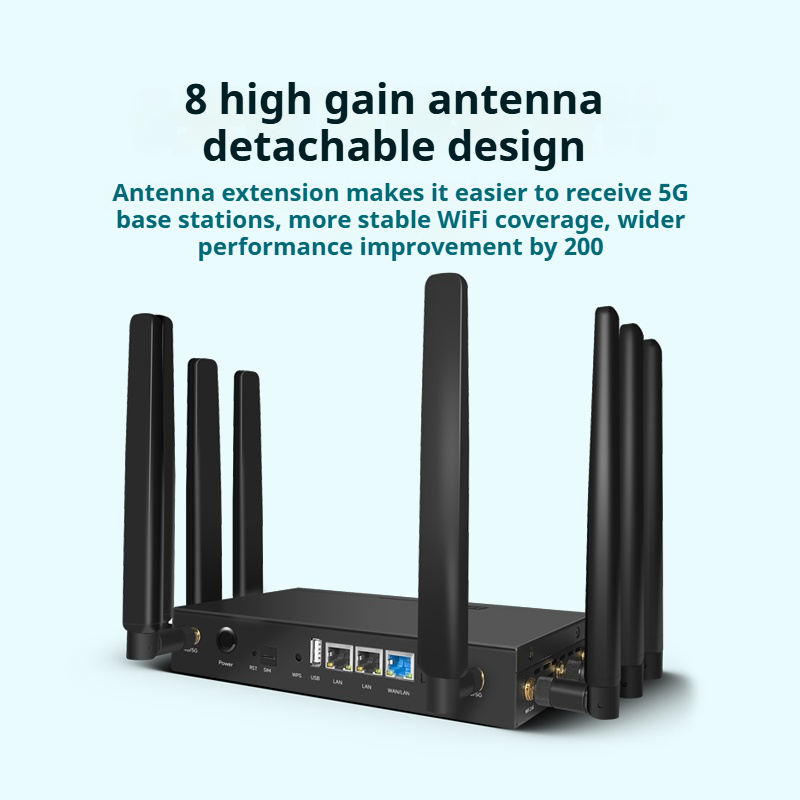

Antennas

-External detachable 2.4G WiFi 5dBi omnidirectional

antennas *2

-External detachable 5G WiFi 5dBi omnidirectional

antennas *2

-External detachable 3G/4G/5G 5dBi omnidirectional

antennas *4

Power

DC 12V/2A

Operating/Storage Temperature

-10℃~45℃/-20℃~70℃

Operating/Storage Humidity

5%~95%(non-condensing)

Dimensions

210X102X36mm(Without antenna)

Weight

Approximately 1.1KG (including antennas)

WiFi Spec

Frequency Range

2.4G:2.4~2.4835GHz

5G: UNII-1: 5.15~5.35GHz

UNII-2: 5.47~5.725GHz

UNII-3: 5.725~5.825GHz

Channel

2.4G: 1,2,3,4,5,6,7,8,9,10,11,12,13

5G: 36,40,44,48,52,60,64,149,153,157,161,165

Modulation

802.11b: DSSS (DQPSK, DBPSK, CCK)

802.11a/g: OFDM (BPSK, QPSK,16-QAM)

802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM)

802.11ac: OFDM (BPSK, QPSK,64-QAM, 256-QAM)

802.11ax: OFDMA (BPSK,256-QAM, 1024-QAM)

Transmission Rate

11b up 11Mbps,11a/g up 54Mbps,11n up 300Mbps,11ac up 864.7Mbps,11ax 2.4G up 573Mbps,11ax 5G up1201Mbps

Receiver

Sensitivity

2.4G:

11b:≤-119±1.5dBm @1Mbps,

≤-90±1.5dBm dBm@11Mbps

11g:≤-96±1.5dBm@6Mbps,

≤-78±1.5dBm @54Mbps

11n 20MHz:≤-96±1.5dBm@MCS0,

≤-76±1.5dBm @MCS7

11n 40MHz:≤-92±1.5dBm @MCS0,

≤-74±1.5dBm @MCS7

11ax 20MHz: ≤-96±1.5dBm @MCS0,

≤-66±1.5dBm @MCS11

11ax 40MHz: ≤-94±1.5dBm @MCS0,

≤-63±1.5dBm @MCS11

5G:

11a:≤-94±1.5dBm @6Mbps,

≤-78±1.5dBm @54Mbps

11n 20MHz:≤-94±1.5dBm@MCS0,

≤-74±1.5dBm @MCS7

11n 40MHz:≤-90±1.5dBm @MCS0,

≤-72±1.5dBm @MCS7

11ac 20MHz:≤-94±1.5dBm @MCS0,

≤-72±1.5dBm @MCS8

11ac 40MHz:≤-90±1.5dBm @MCS0,

≤-66±1.5dBm @MCS9

11ac 80MHz:≤-88±1.5dBm @MCS0,

≤-62±1.5dBm @MCS9

11ax 20MHz:≤-94±1.5dBm @MCS0,

≤-64±1.5dBm @MCS11

11ax 40MHz:≤-92±1.5dBm @MCS0,

≤-60±1.5dBm @MCS11

11ax 80MHz:≤-88±1.5dBm @MCS0,

≤-58±1.5dBm @MCS11

Transmit Power

11b: ≥20±1.5dBm@11Mbps

11g: ≥20±1.5dBm@54Mbps

11n(20/40MHz): ≥20±1.5dBm@MCS7

11ac(40/80MHz): ≥20±1.5dBm@MCS9

11ax(20/40/80M) : ≥20±1.5dBm@MCS11

5GModule Specifications

Frequency Band

5G NR:3GPP Release 15/Release 16 NSA/SA operation,Sub-6 GHz

5G NR NSA:n1/3/7/28/38/40/41/77/78

5G NR SA:n1/3/5/7/8/28/38/40/41/66/77/78

5G DL 4X4 MIMO:n1/3/7/28/38/40/41/66/77/78

   UP 2X2 MIMO: n38/40/41/77/78

   DL 2X2 MIMO: n5/8/20

LTE Category:DL Cat12,UP Cat13

LTE-FDD:B1/2/3/4/5/7/8/20/28/66

LTE-TDD:B38/40/41

LTE DL 2X2 MIMO:B1/2/3/4/5/7/8/20/28/38/40/41/66

UMTS WCDMA:B1/2/5/8

Maximum Data Transfer Rate

5G SA Sub-6:DL 2 Gbps; UL 1 Gbps

5G NSA Sub-6:DL 2.2 Gbps; UL 575 Mbps

LTE:DL 600 Mbps; UL 150 Mbps

UMTS:DL 42.2 Mbps; UL 11 Mbps

Software Functions

Working Mode

Router Mode,Bridge Mode

Number of

connected users

128 Peoples

Management Mode

English WEB Remote Management/SNMP/TR069

Remote Management and Online Upgrade Support

Status

Internet Status, Router, WiFi, Main Network Users,

Guest Network Users, LTE Carrier Aggregation

Network

Ethernet: Mode Selection (Router Mode, Bridge Mode), Internet Connection Method (Broadband Dial-up,

Dynamic IP, Static IP), DNS (Automatic, Manual Input),

Network Status: Connection Type, Internet Status

Mobile Connection: SIM (ESIM and External Plug-in

Card) Switching, Mobile Connection Switch, Data

Roaming, Dial-up Mode (Tether Dial-up, NDIS Dial-up),

Network Operator Selection, PCI Locking, Network

Mode Selection (Automatic, 5G+SA, 5G+NSA, 4G, 3G), Data Usage Settings, Band Locking

LAN: LAN Settings, DHCP Address Pool, Guest Network

Address Pool

Wireless

WiFi (Dual-Band, WiFi Switch, SSID, Encryption

Method, WiFi Password, Wireless Protocol, Channel

Bandwidth, Wireless Channel, Signal Strength,

Blacklist/Whitelist, WPS, Mesh

Advanced Network Settings

APN, IPV6, Guest Network, Parental Control, VPN

Client, UPnP, DDNS, Network Tools, Hardware

Forwarding, SNMP

SMS

Inbox, Outbox, Drafts

Firewall

ALG, Port Mapping, DMZ Settings, MAC Filtering, IP Filtering, NAT Settings, DDoS, URL Filtering

Management

SNTP, PIN Management, Device Information, Traffic Statistics, TR069, Change Password, Backup/Upgrade, Restart/Reset, Remote Access, Audit Logs, IP Probe

Setup Wizard

Time Zone-5G-WiFi-Summary
