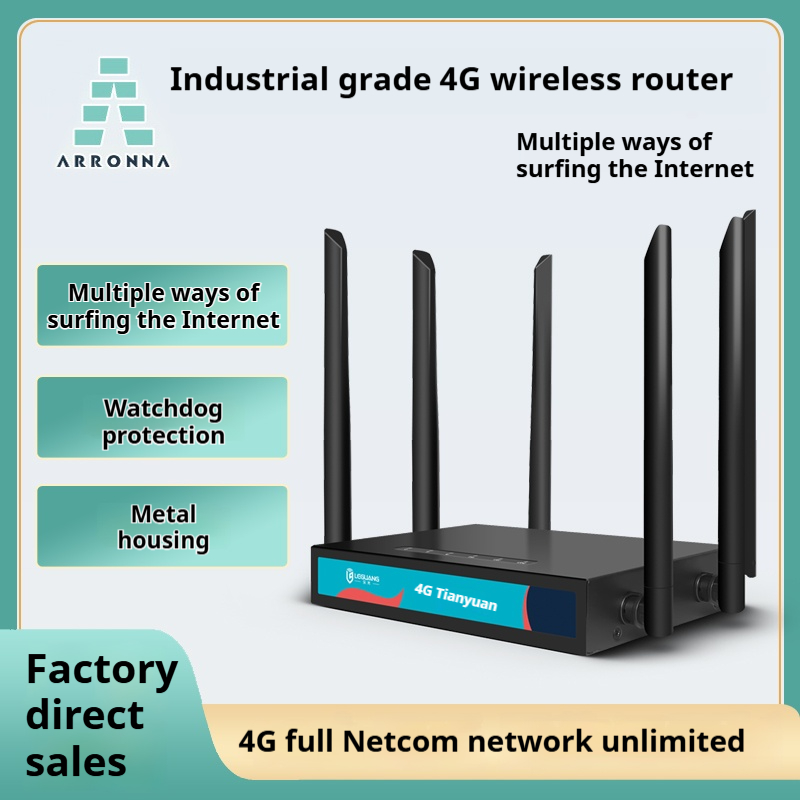

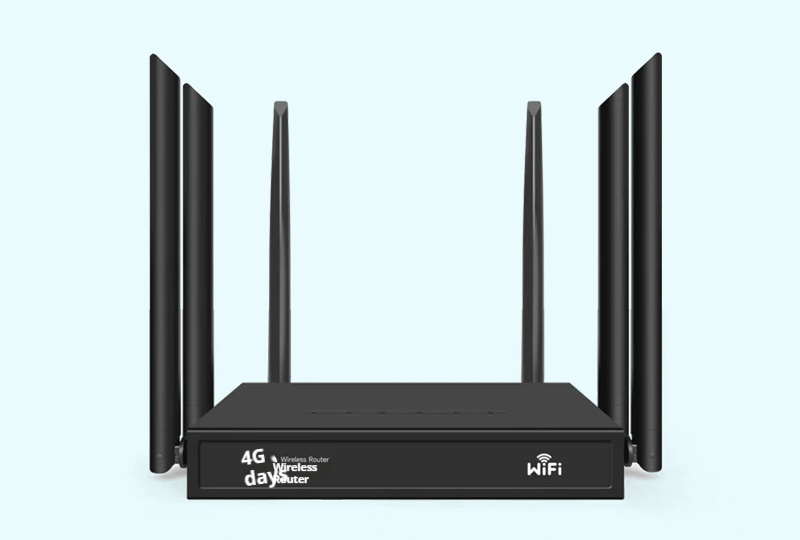

Hardware configuration |
|
|
Main chipset |
MT7628NN |
|
Clock Frequency |
575MHz |
|
Memory |
64MB |
|
Flash |
8MB |
|
Wireless Technology |
802.11b/g/n 300Mbps MIMO |
|
Device interface |
WAN*1/LAN*2 10/100Mbps auto-negotiation Standard SIM card (Mini-SIM) DC power supply interface, suitable for power plug with outer diameter of 5.5mm, inner diameter of 2.1mm, and length of over 9.5mm |
|
Button |
RESET, press and hold for 5 seconds to restore factory settings |
|
Indicator |
POWER,WiFi,4G,WAN,LAN1,LAN2 |
|
Antenna |
External 2.4G 5dBi rubber rod antennas *4 External 4G LTE 5dBi rubber rod antennas *2 |
|
Power |
DC 12V/1A, positive on the outer side and negative on the inner side. |
|
Operating/Storage Temperature |
-10℃~45℃/-20℃~70℃ |
|
Operating/Storage Humidity |
5%~95%(Non-condensing) |
|

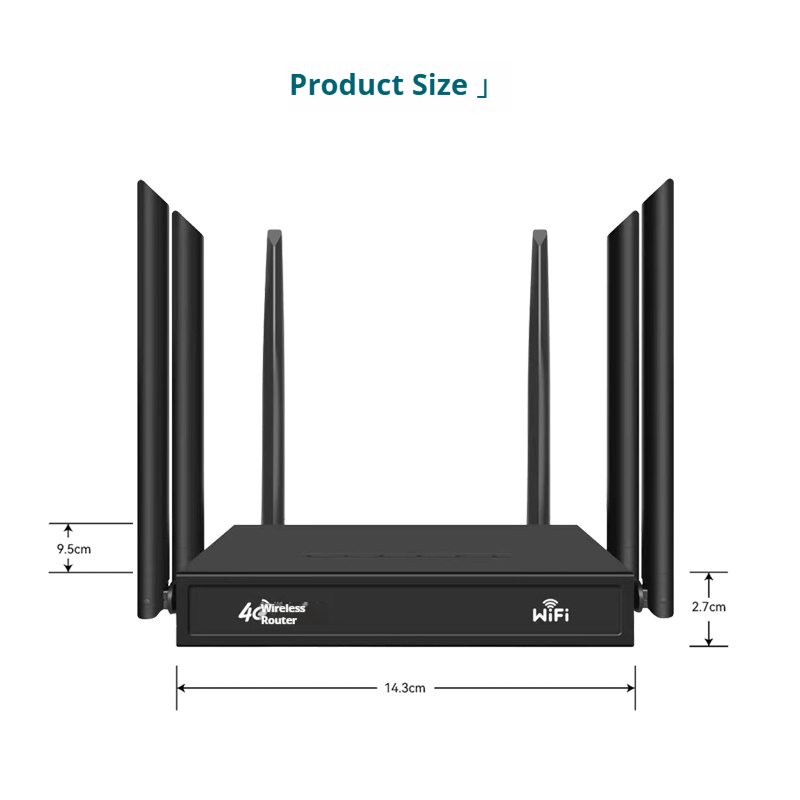

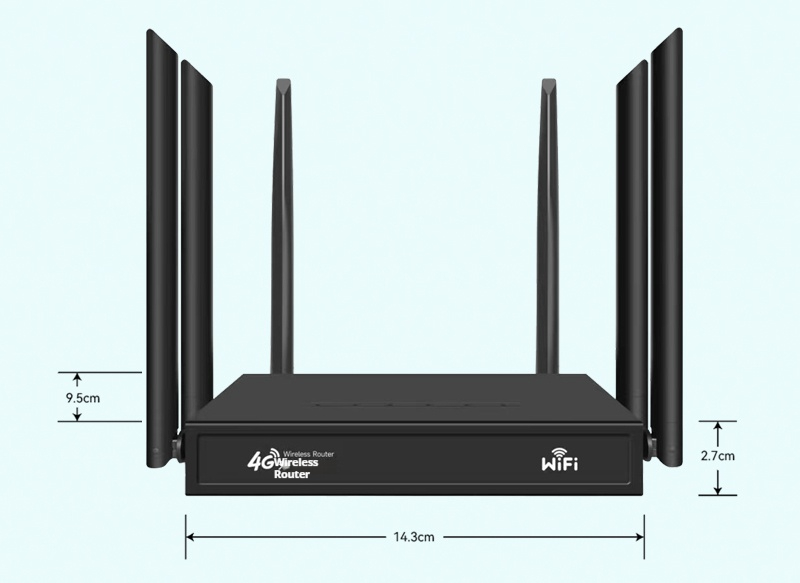

Size |
14.3*9.5*2.7cm |
|
Weight |
0.35kg |
|
WiFi Spec |
|
|
Frequency Range |
802.11b/g/n:2.4~2.4835GHz |
|
Channel |
1,2,3,4,5,6,7,8,9,10,11,12,13 |
|
Modulation |
802.11b: DSSS (DQPSK, DBPSK, CCK) 802.11g: OFDM (BPSK, QPSK,16-QAM) 802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM) |
|
Transmission Rate |
11b up 11Mbps,11g up 54Mbps,11n up 300Mbps |
|
Receiver Sensitivity |
11b:≤-90±1.5dBm @1Mbps, ≤-84±1.5dBm @11Mbps 11g:≤-86±1.5dBm @6Mbps, ≤-69±1.5dBm @54Mbps 11n 20MHz:≤-85±1.5dBm @MCS0, ≤-67±1.5dBm @MCS7 11n 40MHz:≤-82±1.5dBm @MCS0, ≤-64±1.5dBm @MCS7 |
|
Transmit Power |
11b: ≥20±1.5dBm@11Mbps 11g: ≥20dBm±1.5dBm@54Mbps 11n: ≥20dBm±1.5dBm@MCS7 |
|
4G Spec |
|
|
Network Standard |
LTE FDD/TDD |
|
LTE-FDD |
B1/B3/B5/B7/B8/B20/B28 (supporting hierarchical reception) |
|
LTE-TDD |
B38/B40/B41 (supporting hierarchical reception) |
|
Transmission Rate |
LTE FDD: Up 150Mbps(DL)/Up 50Mbps(UL) LTE TDD: Up 130Mbps(DL)/Up 30Mbps(UL) |
|
Transmit Power |
Class 3 (23dBm±2dB) LTE FDD Bands Class 3 (23dBm±2dB) LTE TDD Bands |
|
Receiver Sensitivity |
FDD B1: –99dBm (10M) FDD B3: –99dBm (10M) FDD B5: –100dBm (10M) FDD B8: –100dBm (10M) TDD B34: –98dBm (10M) TDD B38: –100dBm (10M) TDD B39: –98dBm (10M) TDD B40: –99dBm (10M) TDD B41: –99dBm (10M) |
|
Software Functions |
|
|
Working Mode |
4G/Router |
|
Number of connected users |
32 Peoples |
|
Management Mode |
English-language web remote management/support for TR069 remote management and online upgrades. |
|
Status |
Internet Status, LAN Status & Wireless Status & CPU & Memory Utilization, Connected Users |
|
Network |
Internet: System Modes (Auto, 4G, Router Mode) Local Area Network: IP Address/Subnet Mask Configuration, DHCP Address Pool APN: Built-in Four Groups of APN Settings |
|
Wireless |
Basic Settings: Wireless Switch, SSID, Hide SSID, Security Version, Encryption, Wireless Password, 2.4G Guest Network Advanced Settings: Wireless Mode, Channel Width, Wireless Channel, Transmission Power |
|
4G Traffic |
Used, Residual, Month Used, Day Used, Days to monthly settlement,Monthly Data Limit, Month Settlement Day, Traffic Control Switch Setting |
|
Advance |
Parental Control,Blacklist,Static Routing,Virtual Servers,VPN Client(PPTP,L2TP) |
|
System |
Configuration Management: Firmware Version, Firmware Upgrade, Reboot, Reboot Scheduled, Backup Configuration, Configuration Restore, Restore factory configurations TR069: ACS Server Source, ACS Server URL, ACS Server Username, ACS Server Password, Periodic Inform, Periodic Reporting Interval, Connection Request Username, Connection Request Password System Logs: Refresh to Obtain System Logs System Time: NTP Client, NTP Server, Time Zone Settings |
|
Quick Setup |
Internet-WiFi-Admin Password |
