Hardware configuration |
|
|
Main Chip |
MT7621A High-performance enterprise-level chip |
|
Frequency |
MIPS dual-core 880MHz |
|
Memory |
256MB |
|
Flash |
128MB |
|

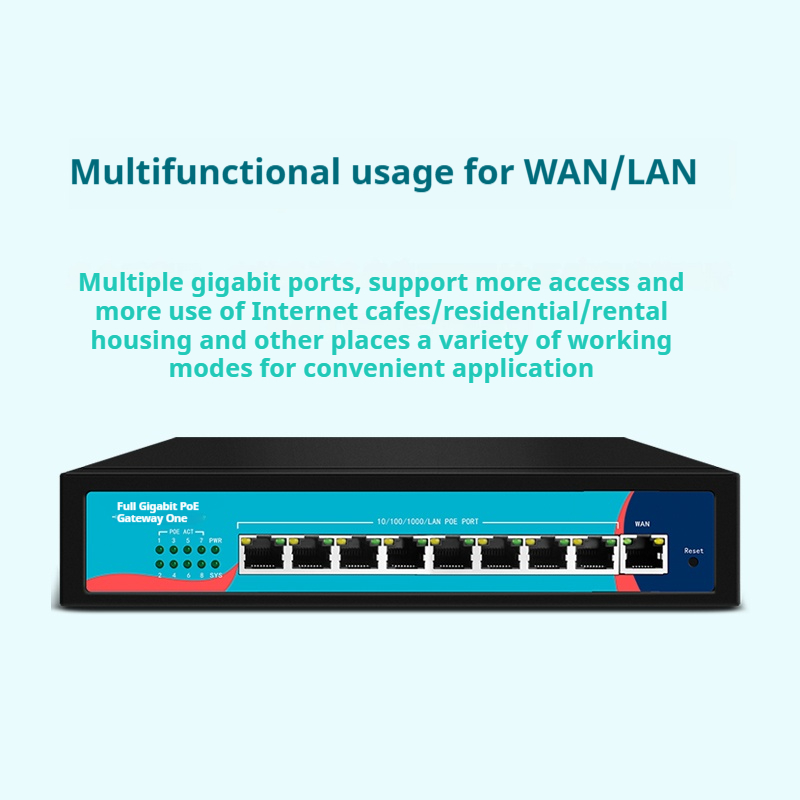

Device Interfaces |
-8* 10/100/1000Mbps adaptive LAN PoE network interfaces -1* 10/100/1000Mbps adaptive WAN network interface -AC power interface |
|
Button |
Reset button for restoring factory settings, press and hold for 6 seconds to restore factory settings. |
|
Indicators |
PWR,SYS,PoE status indicator light,Ethernet port status indicator light |
|
Power |
AC 100-240V ~50/60Hz |
|
Operating/Storage Temperature |
-20℃~50℃/-40℃~70℃ |
|
Operating/Storage Humidity |
10%~90%(non-condensing) / 5%~90%(non-condensing) |
|

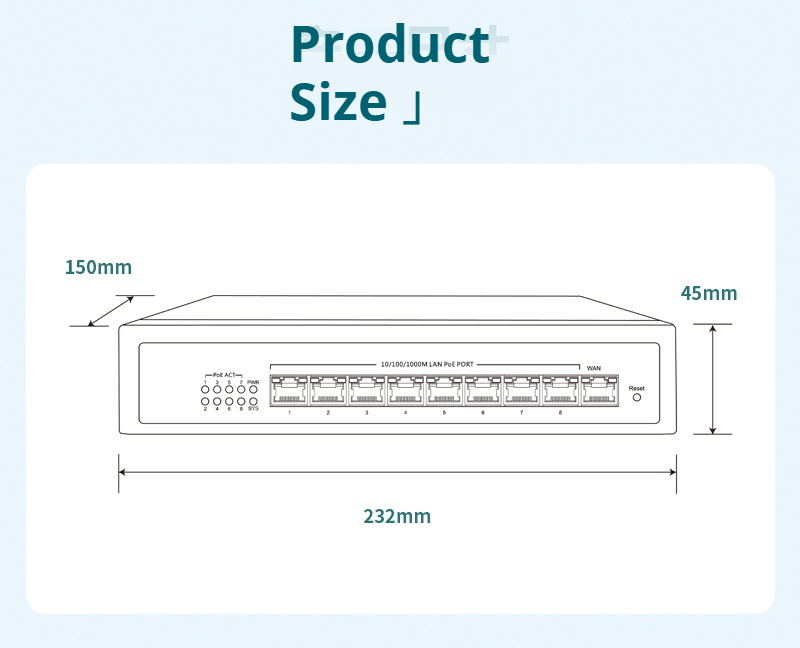

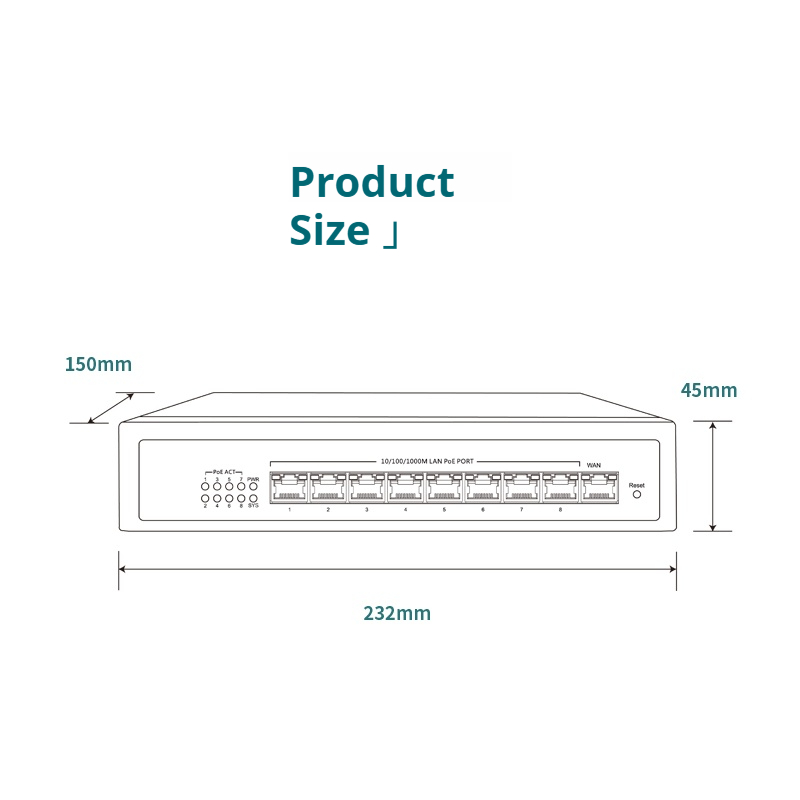

Dimensions |
232*150*45mm |
|
Weight |
1KG |
|
Software Functions |
|
|
Operating Mode |
Main Router/Bypass Mode |
|
Capacity |
100 Users |
|
Number of managed APs |
32 PCS |
|
Management |
English WEB remote management/cloud platform management/mini-program management |
|
Overview |
Currently logged in device, Health, Online user information, Global status, DPI protocol, Real time traffic, Historical flow, Historical user |
|
Monitoring |
Online users, WEB users, PPPoE users, DHCP users |
|
Interface |

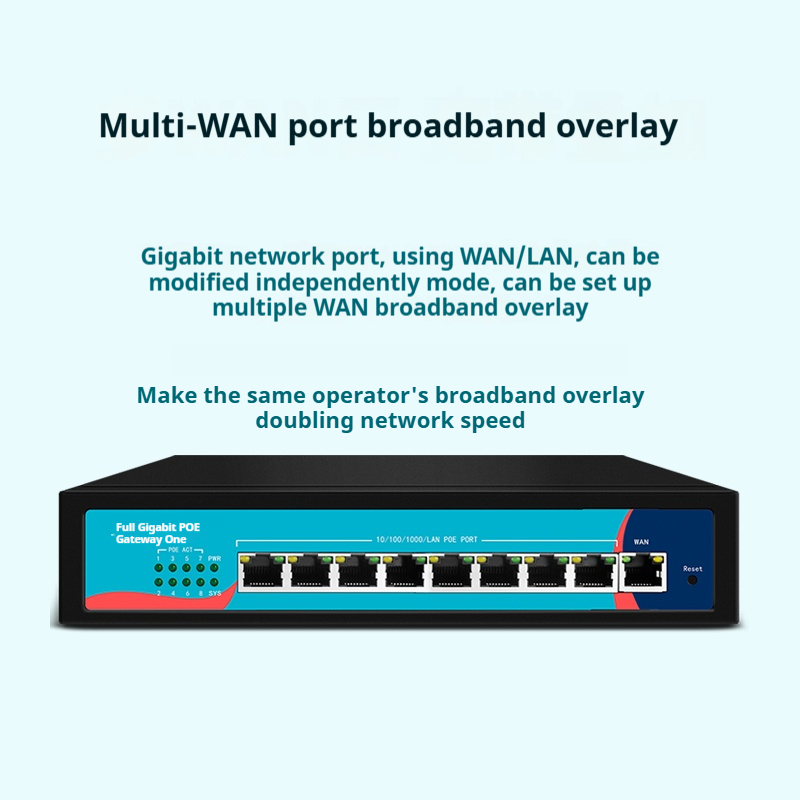

WAN settings (WAN settings, WAN extend, MultiDial, WAN group), LAN settings (LAN settings, DNS proxy), Policy routing (Policy routing, Load balancing, Address range, Line status, Log), IPv6 settings (IPv6 LAN setting, IPv6 WAN setting), Port aggregation, Port settings, PoE power supply, Bypass mode |
|
Router |
System state (Overview, Network status, Login record, System log), Flow control (Priority Setting, Bandwidth limitation, Bandwidth guarantee, Control exception), Security (ARP list, Access control, ARP defense, MAC filtering, Connection limit, DDoS Defense, Ping WAN port, Connection setting), Behavior (Time group, IP address group, Behavior recognition, Domain name, QQ filtering), VPN (IPSec settings, L2TP IPSEC, PPTP), Advanced (Port mapping, UPNP setting, DMZ setting, NAT conversion, Routing settings, DNS policy, Dynamic domain name, Port Mirror, NAT fast forwarding, Wake on LAN), USB storage, Diagnosis (Network health index, Network tools) |
|
Auth |
User management, Authentication settings (Basic, Exemption from certification , Page management), PPPoE server, PPPoE limit group, Radius setting |
|
Wireless |
AP list, Wireless users, wifi roam, Group management, Template management (2.4G template, 5.8G template), Wireless settings (2.4G settings, 5.8G settings ), User Management (Online black and white list, User access log), Device management, DHCP defense |
|
Switch |
Switch |
|
Intelligent cloud Manager |
Intelligent cloud Manager |
|
System |
Access setting, Router name, Configuration Management (Backup and import, Restore factory setting), Device restart (Device restart, Timed restart), System upgrade (Local upgrade, Apply feature library updates), System time |
