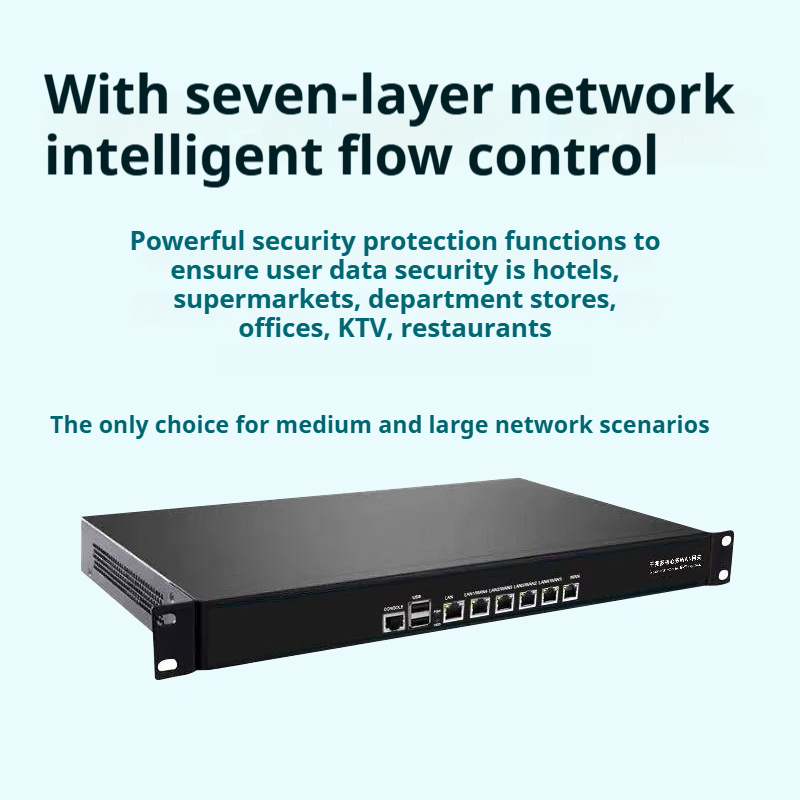

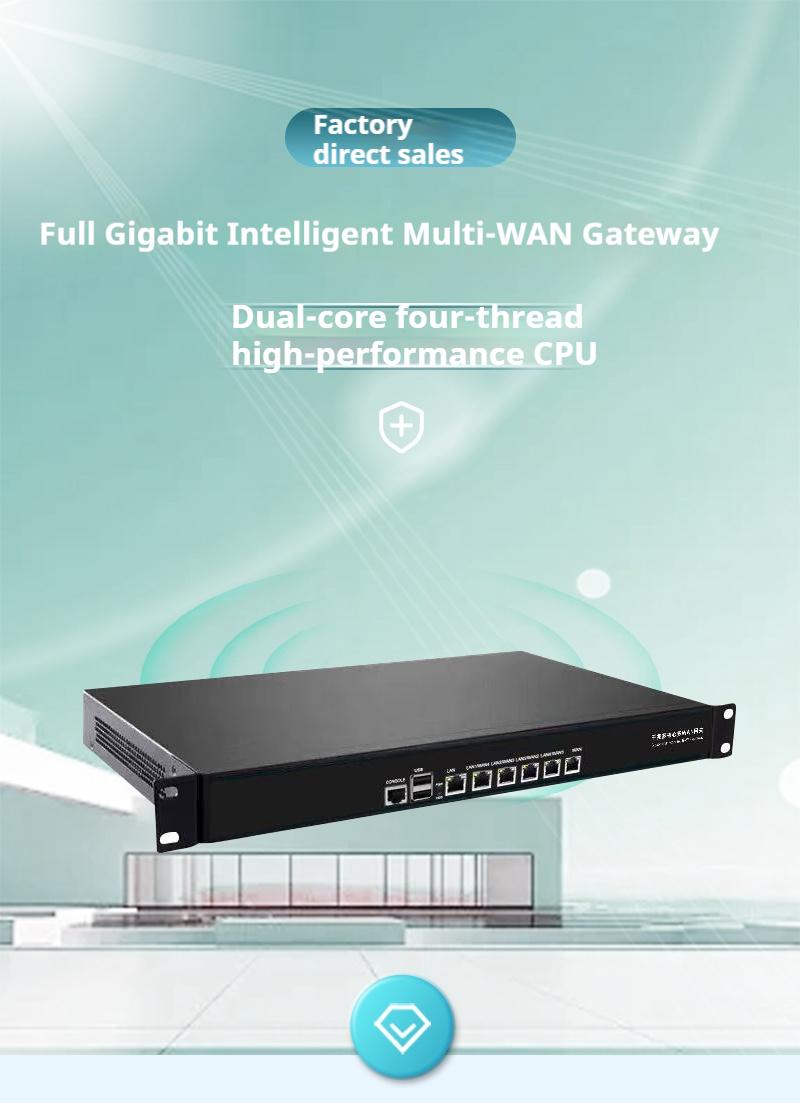

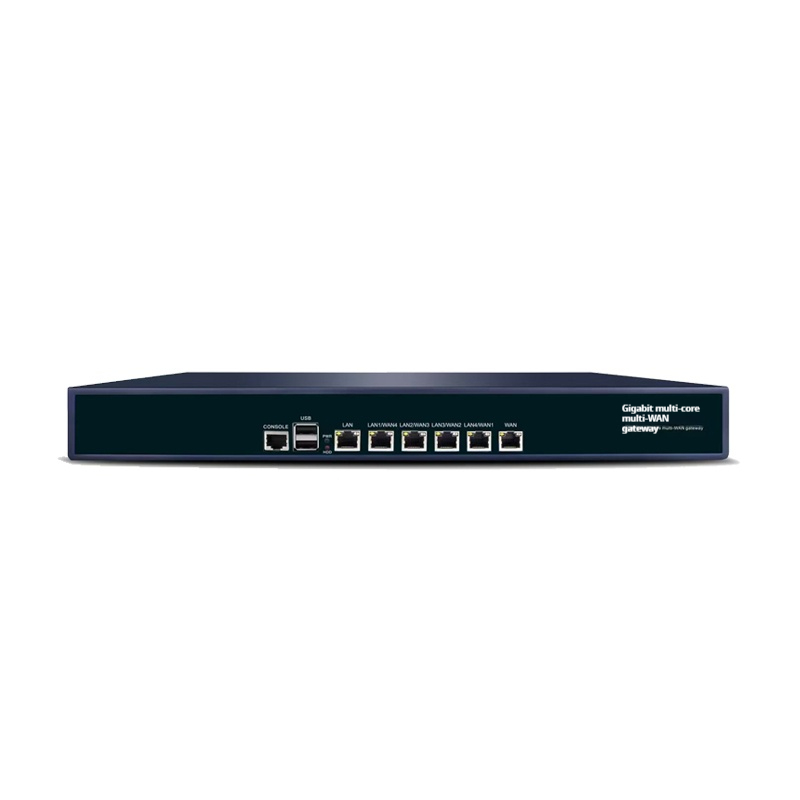

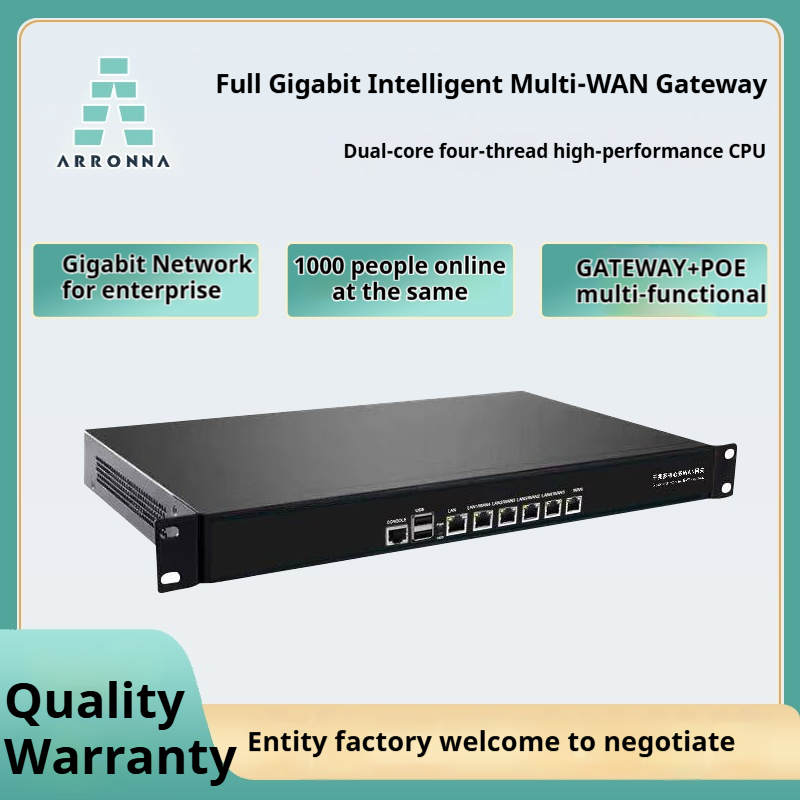

ARZW500S 1.8GHz Gigabit Multi-WAN Gateway Intel D525 Dual-core Quad-thread 2GB Memory 32GB Flash 500 Users Managed

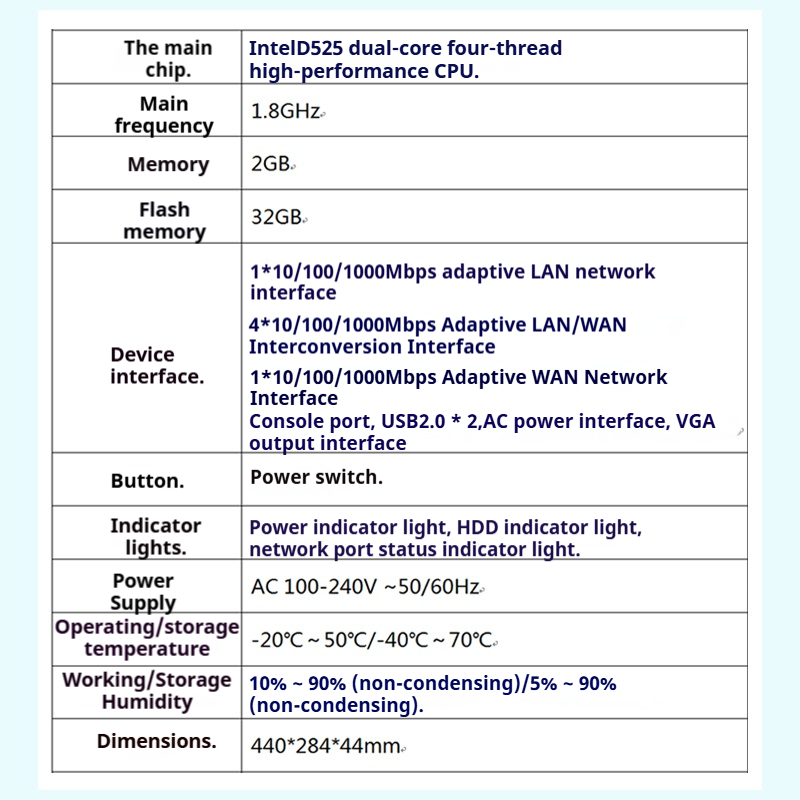

Hardware configuration

Main Chip

Intel D525

Dual-core quad-thread high-performance CPU

Frequency

1.8GHz

Memory

2GB

Flash

32GB

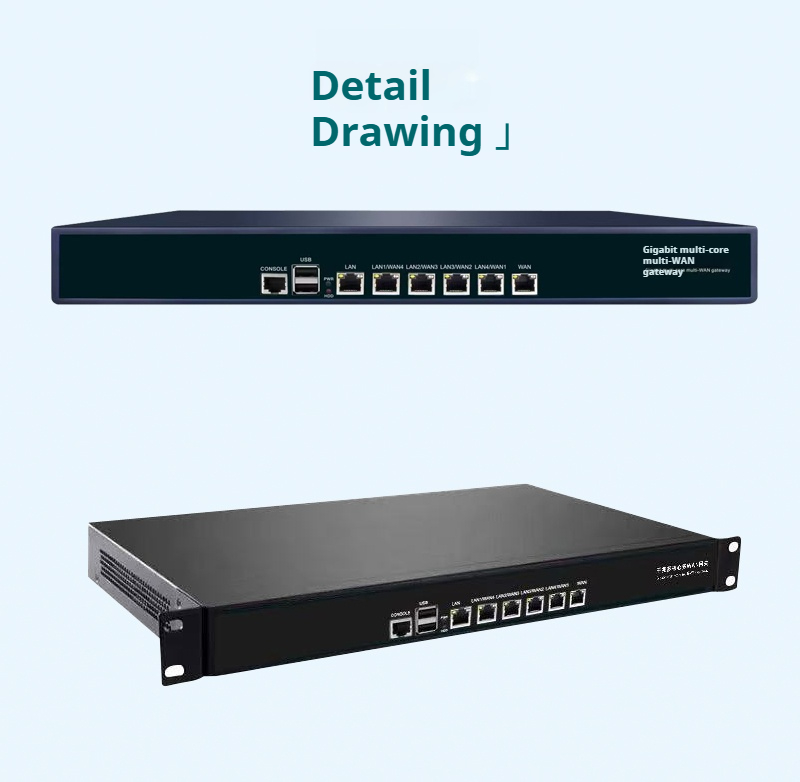

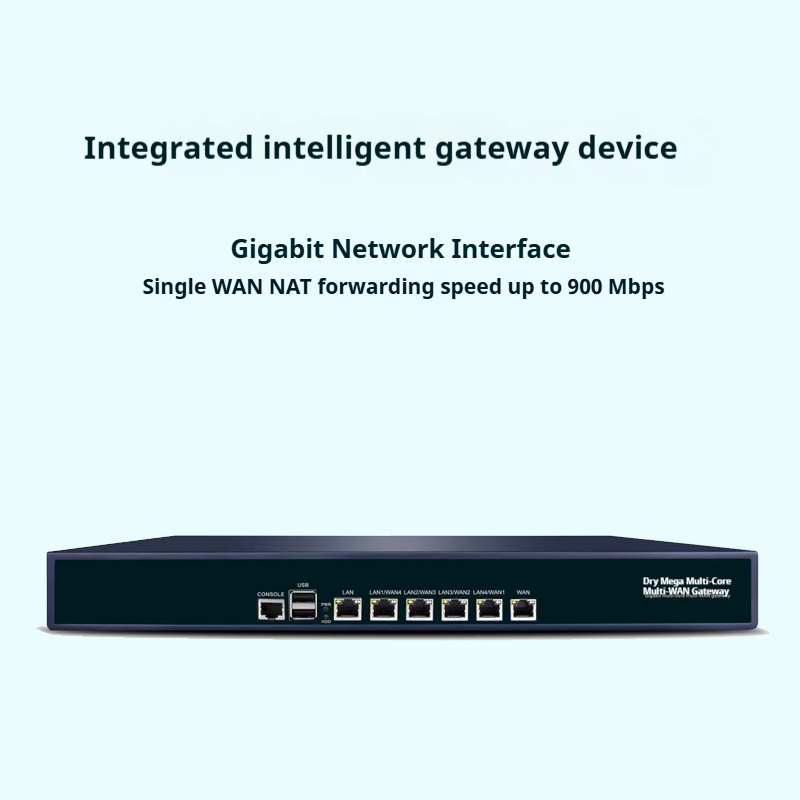

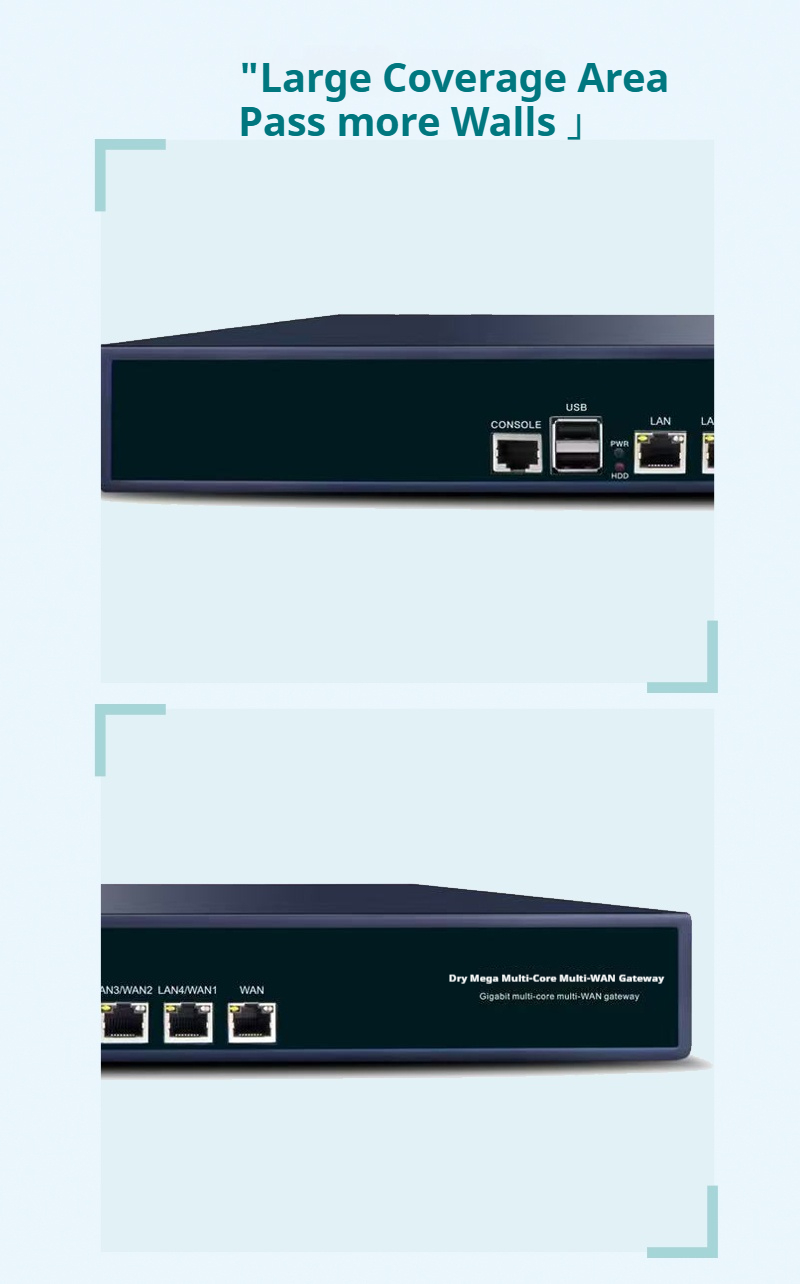

Device Interfaces

-1* 10/100/1000Mbps adaptive LAN network interfaces

-4*10/100/1000Mbps adaptive LAN network interfaces

-1* 10/100/1000Mbps adaptive WAN network

interfaces

Console port*1,USB2.0*2,AC Power interface,

VGA output interface

Button

Power switch

Indicators

Power indicator light, HDD indicator light, Ethernet port status indicator light

Power

AC 100-240V ~50/60Hz

Operating/Storage Temperature

-20℃~50℃/-40℃~70℃

Operating/Storage Humidity

10%~90%(non-condensing) /

5%~90%(non-condensing)

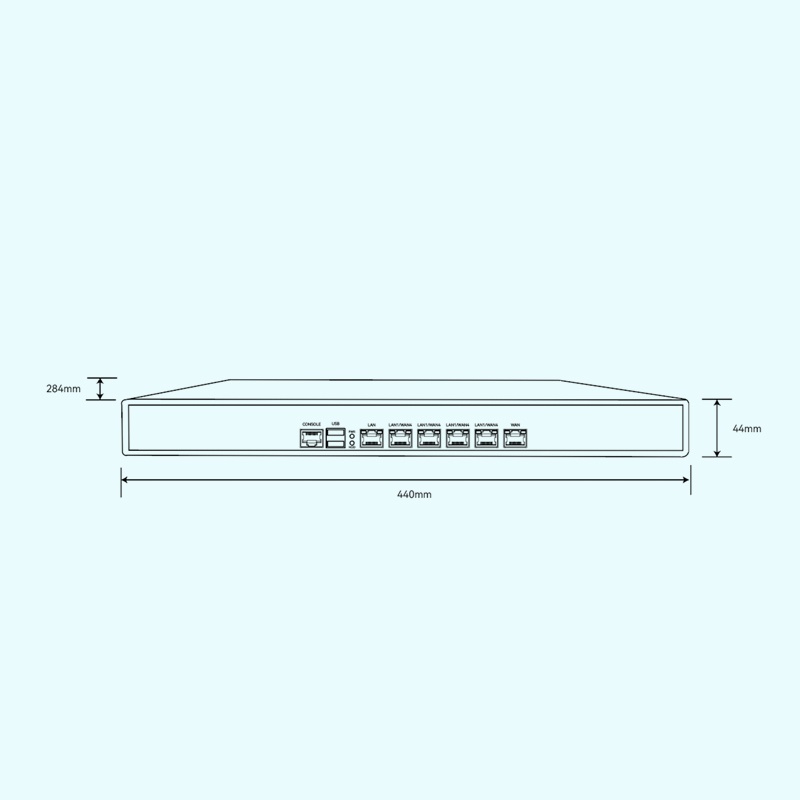

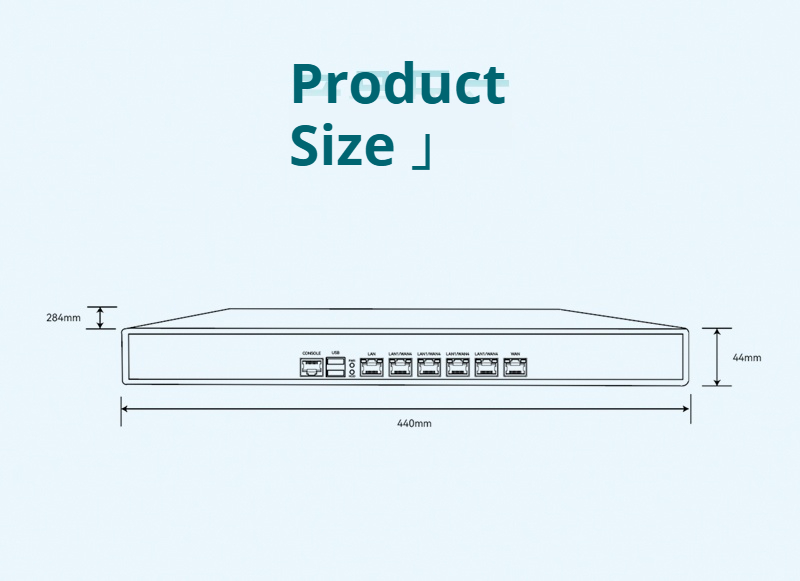

Dimensions

440*284*44mm

Weight

<4.2KG

Software Functions

Operating Mode

Main Router/Bypass Mode

Capacity

500 Users

Number of managed APs

128 PCS

Management

English WEB remote management/cloud platform

management/mini-program management

Overview

Currently logged in device, Health, Online user

information, Global status, DPI protocol, Real time

traffic, Historical flow, Historical user

Monitoring

Online users, WEB users, PPPoE users, DHCP users

Interface

WAN settings (WAN settings, WAN extend, MultiDial,

WAN group), LAN settings (LAN settings, DNS proxy),

Policy routing (Policy routing, Load balancing, Address

range, Line status, Log), IPv6 settings (IPv6 LAN

setting, IPv6 WAN setting), Port aggregation, Port

settings, 4G Internet service, Bypass mode

Router

System state (Overview, Network status, Login record,

System log), Flow control (Priority Setting, Bandwidth

limitation, Bandwidth guarantee, Control exception),

Security (ARP list, Access control, ARP defense, MAC

filtering, Connection limit, DDoS Defense, Ping WAN

port, Connection setting), Behavior (Time group, IP

address group, Behavior recognition, Domain name, QQ filtering), VPN (IPSec settings, L2TP IPSEC, PPTP),

Advanced (Port mapping, UPNP setting, DMZ setting,

NAT conversion, Routing settings, DNS policy,

Dynamic domain name, Port Mirror, NAT fast

forwarding, Wake on LAN), USB storage, Diagnosis

(Network health index, Network tools)

Auth

User management, Authentication settings (Basic,

Exemption from certification , Page management),

PPPoE server, PPPoE limit group, Radius setting

Wireless

AP list, Wireless users, wifi roam, Group management,

Template management (2.4G template, 5.8G template),

Wireless settings (2.4G settings, 5.8G settings ), User

Management (Online black and white list, User access

log), Device management, DHCP defense

Switch

Switch

Intelligent cloud

Manager

Intelligent cloud Manager

System

Access setting, Router name, Configuration

Management (Backup and import, Restore factory

setting), Device restart (Device restart, Timed restart),

System upgrade (Local upgrade, Apply feature library

updates), System time
