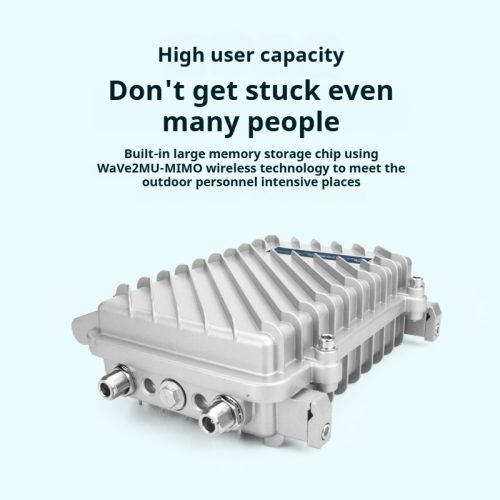

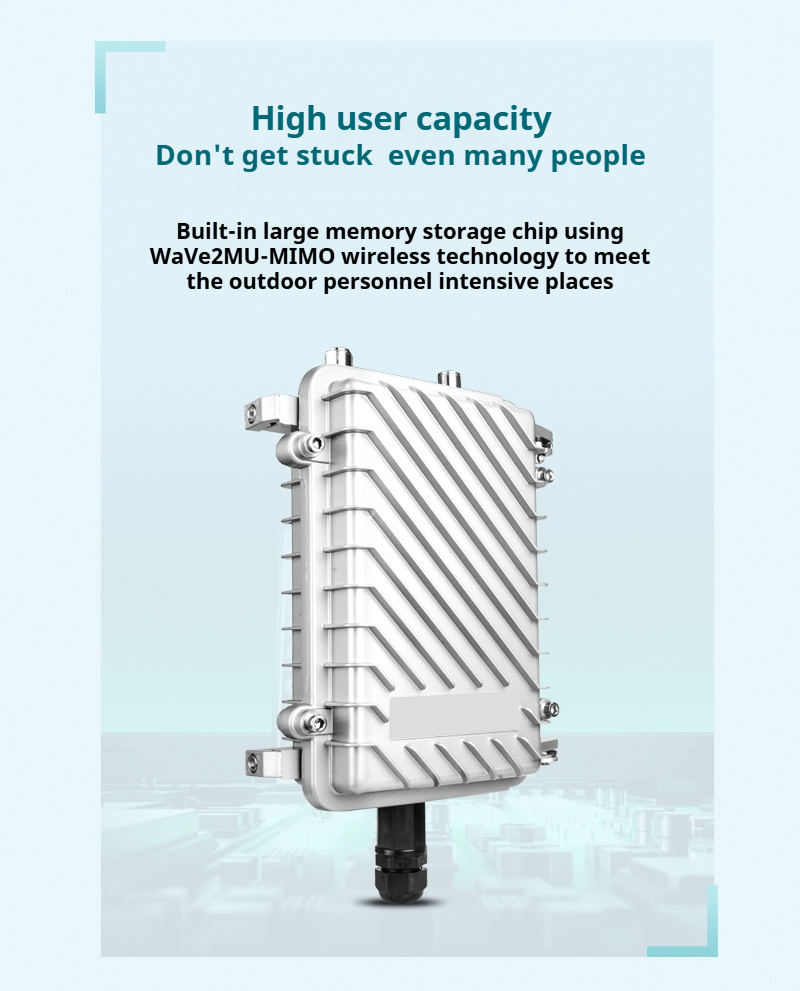

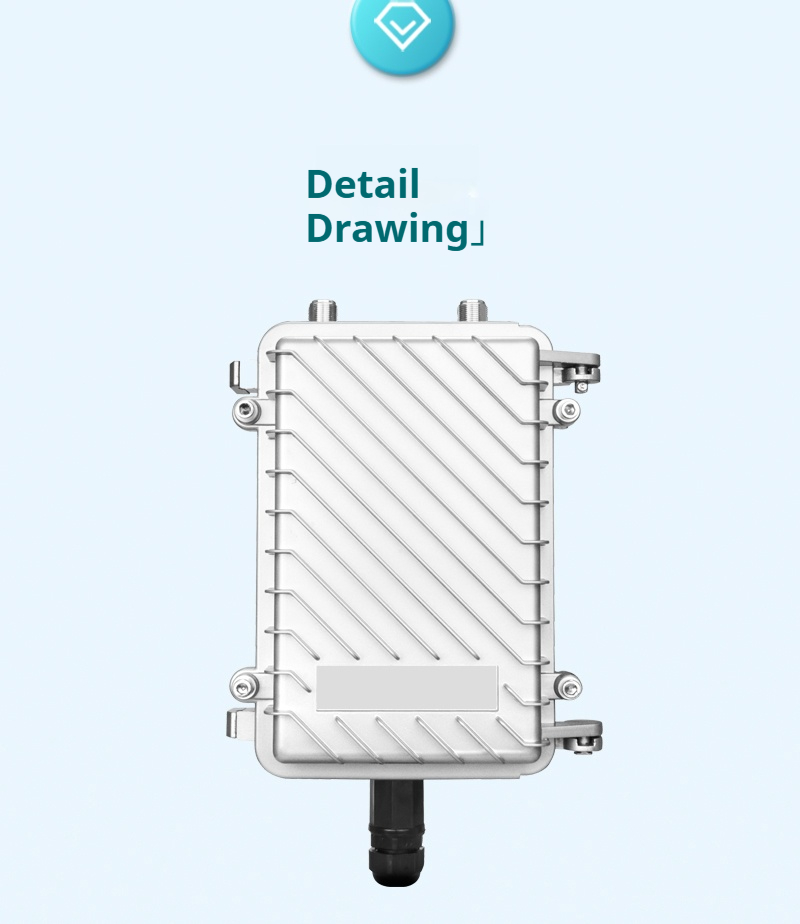

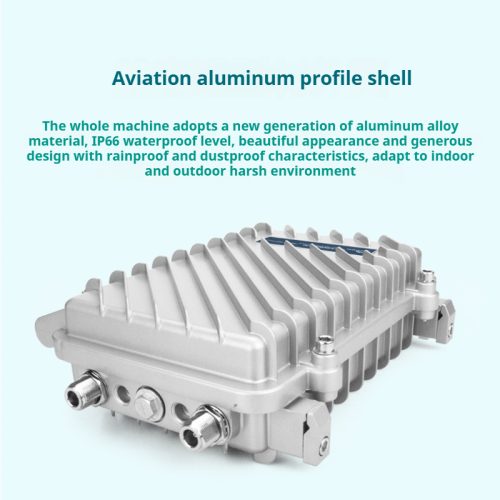

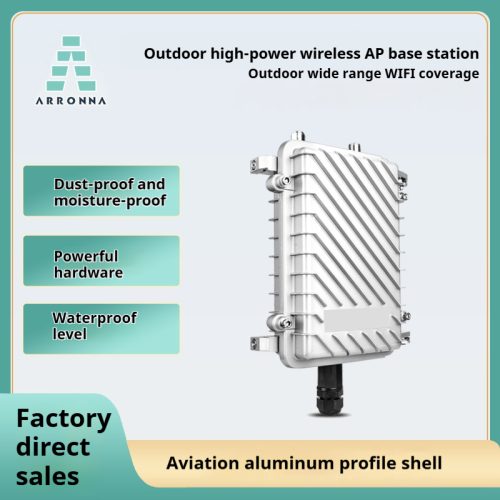

ARRONNA ARHWA20 300M IP65 Waterproof High-Speed WiFi Access Point QCA9531 Chipset 2T2R MIMO Technology for Long-Range Outdoor

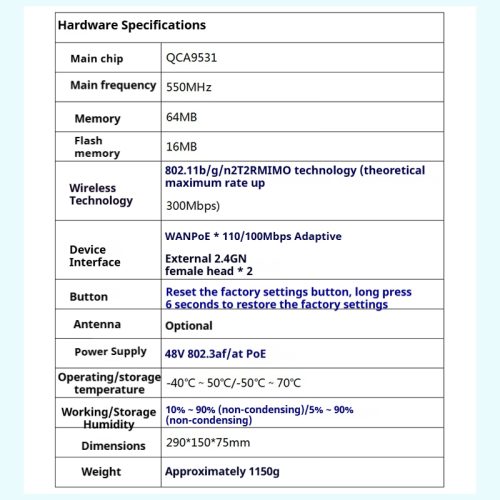

Hardware specifications

Main Chip

QCA9531

Frequency

550MHz

Memory

64MB

Flash

16MB

Wireless Technology

802.11b/g/n 2T2R MIMO technology (theoretical

maximum speed of up to 300Mbps)

Device Interfaces

WAN PoE*1 10/100Mbps adaptive

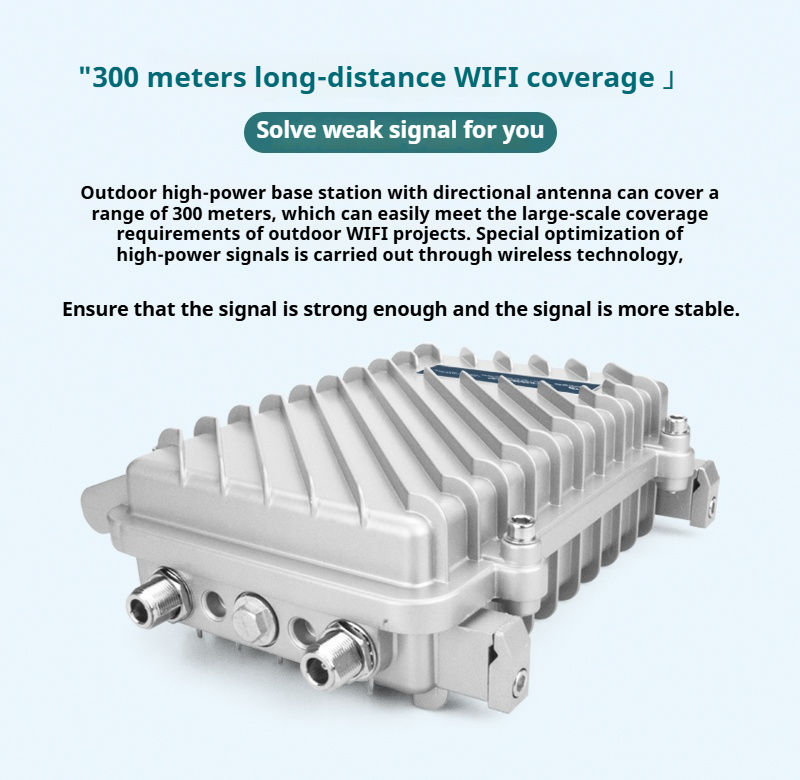

External 2.4GHz N-type female connector *2

Buttons

Reset button for factory reset (long press for 6 seconds to reset)

Antenna

optional

Power

48V 802.3af/at PoE (Power over Ethernet)

Operating/Storage Temperature

-40℃~50℃/

-50℃~70℃

Operating/Storage Humidity

10%~90%(non-condensing) /

5%~90%(non-condensing)

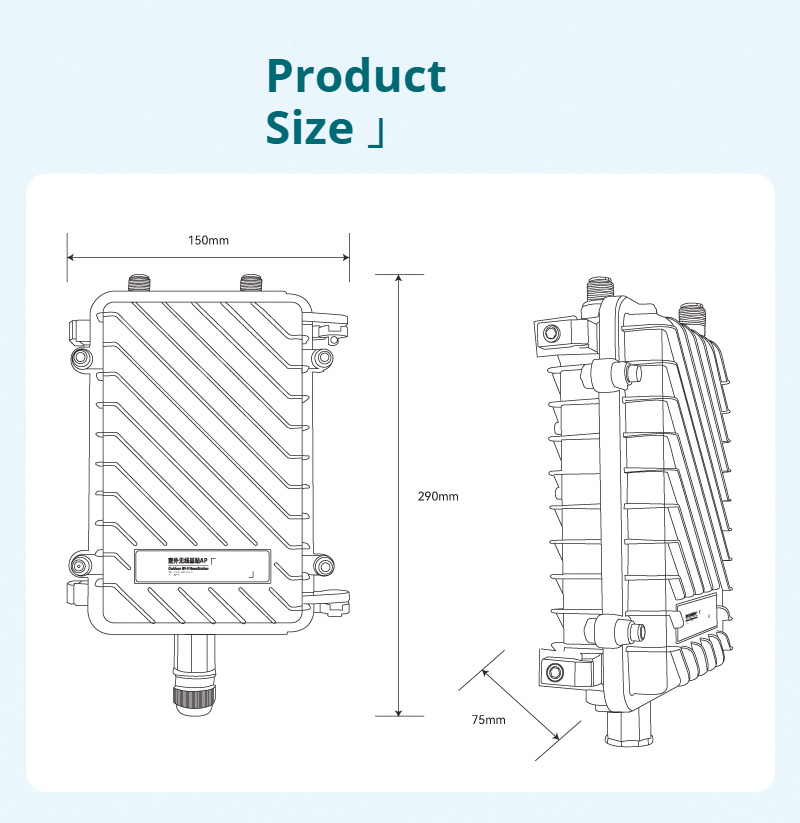

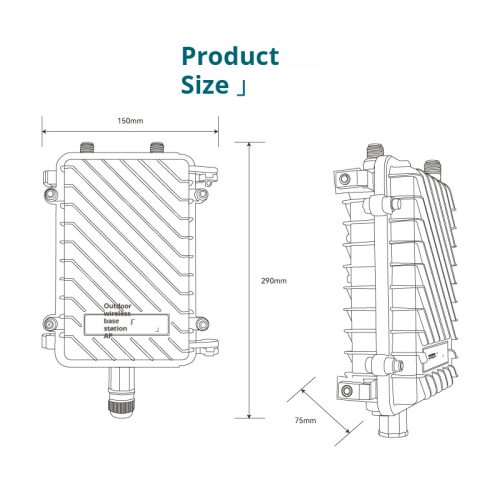

Dimensions

290*150*75mm

Weight

Approximately 1150g

WiFi Spec

Frequency Range

2.4G:2.4~2.4835GHz

Channel

1,2,3,4,5,6,7,8,9,10,11,12,13

Modulation

802.11b: DSSS (DQPSK, DBPSK, CCK)

802.11g: OFDM (BPSK, QPSK,16-QAM)

802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM)

Transmission Rate

11b up 11Mbps,11g up 54Mbps,11n up 300Mbps

Receiver

Sensitivity

11b:<-90±1.5dBm @1Mbps,

<-84±1.5dBm dBm@11Mbps

11g:<-86±1.5dBm@6Mbps,

<-69±1.5dBm @54Mbps

11n 20MHz:<-85±1.5dBm@MCS0,

<-67±1.5dBm @MCS7

11n 40MHz:<-82±1.5dBm @MCS0,

<-64±1.5dBm @MCS7

Transmit Power

11b: 27dBm±1.5dBm@11Mbps

11g: 27dBm±1.5dBm@54Mbps

11n(20/40MHz): 27dBm±1.5dBm@MCS7

Software functions

Working Mode

Integrated Fat-Thin

Capacity

32 Users

Management mode

English WEB remote management / Cloud platform

management / Mini Program management

Status

– Device Status: CPU usage, remaining memory,

number of wireless users, device information (device

name, device model, software version, serial number,

MAC address, system time, total memory, remaining

memory, uptime)

– System Log

Basic Management

– LAN Settings: Automatic/Static IP, WAN Port VLAN,

LAN Port VLAN, MAC Address

– DHCP Configuration: Disabled/Normal/Advanced

Settings

– Mode Switching: Router/AP, DHCP Server

(Enable/Disable)

Wireless

2.4GHz Wireless Configuration:

– SSID Settings: SSID (GB2312/UTF-8), VLAN ID,

Encryption, WiFi password (supports up to 5 SSIDs)

– Basic Settings: Wireless Network On/Off, Region,

Channel, Bandwidth, Transmission Power, AP Advanced

(Network Mode/AP Isolation/Multicast [Off/Multicast to Multicast/Multicast to Unicast]/Weak Signal

Disconnection)

– WDS Settings: WDS Mode (Off/Self-learning

Mode/Bridge Mode/Repeater Mode), Connection

Status

– User List (IP Address, MAC Address, Signal Strength,

Transmission Rate, Reception Rate)

ARP List

ARP List (IP Address, MAC Address, Interface, Type,

Status, Action [Static/Unique])

Supports All Unique, All Static, All Dynamic, Export List

Information, Export Binding Information, Import

Binding Information, Add Binding, Refresh

AC Platform Client

Status switch, Server Address, Device Name, Group

Name, Maximum Number of Users, Transmission Power, AP Isolation, Remark, DHCP Defense, Current

Connection Status

Network Tools

Ping Test, TraceRoute

System Management

– Configuration Management: Backup and Import,

Factory Reset

– System Upgrade: Local Upgrade

– Device Restart: Immediate Restart/Scheduled Restart

– Device Name: Project Name, Device Name, Host

Name, Internal Domain Name
