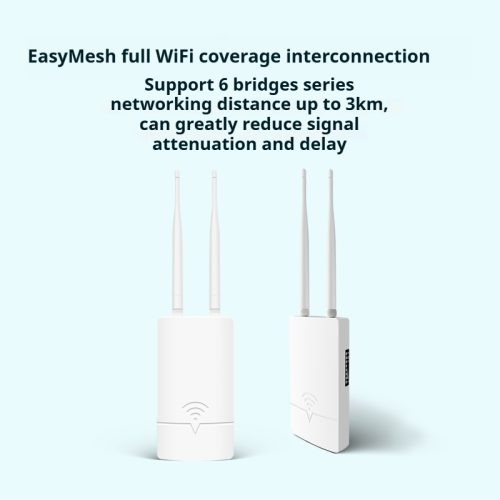

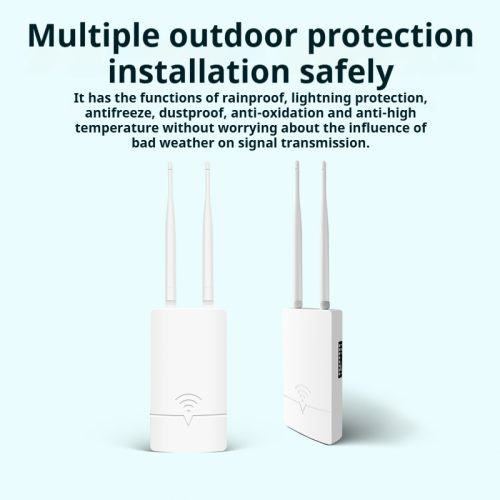

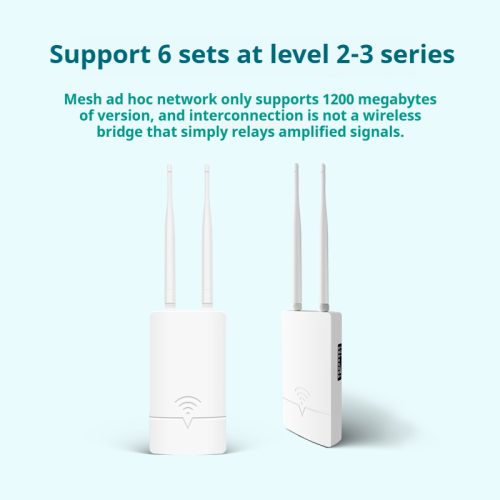

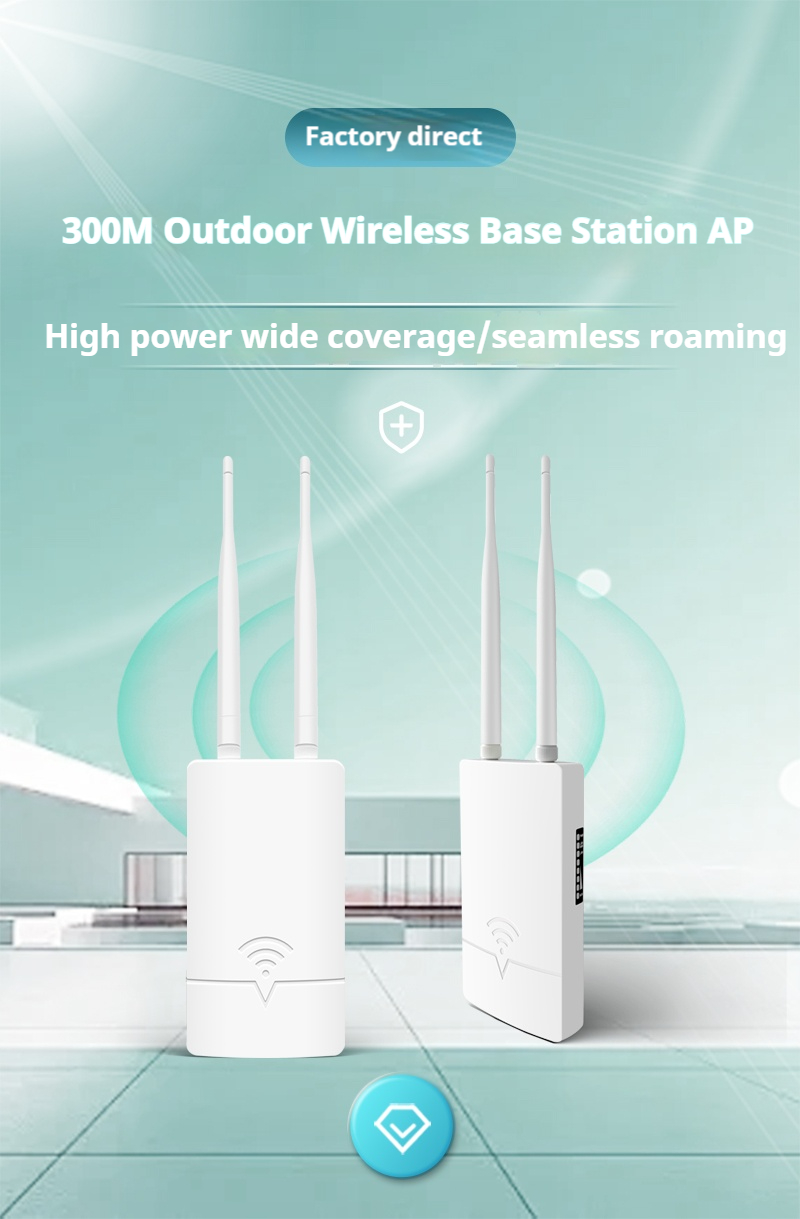

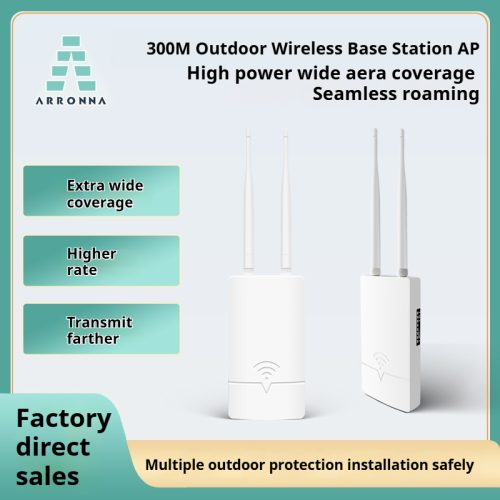

ARRONNA ARN595 802.11AC 1200M Outdoor Wireless Access Point with MT7628AN+MT7613BEN Chipset Supporting 2.4GHz/5.8GHz ISM Band

Hardware specifications

Main Chip

MT7628AN+MT7613BEN

Frequency

580MHz

Memory

128MB

Flash

16MB

Wireless Technology

802.11b/g/n 2T2R MIMO technology (theoretical

maximum speed of up to 300Mbps)

802.11a/n/ac 2T2R MIMO technology (theoretical

maximum speed of up to 867Mbps)

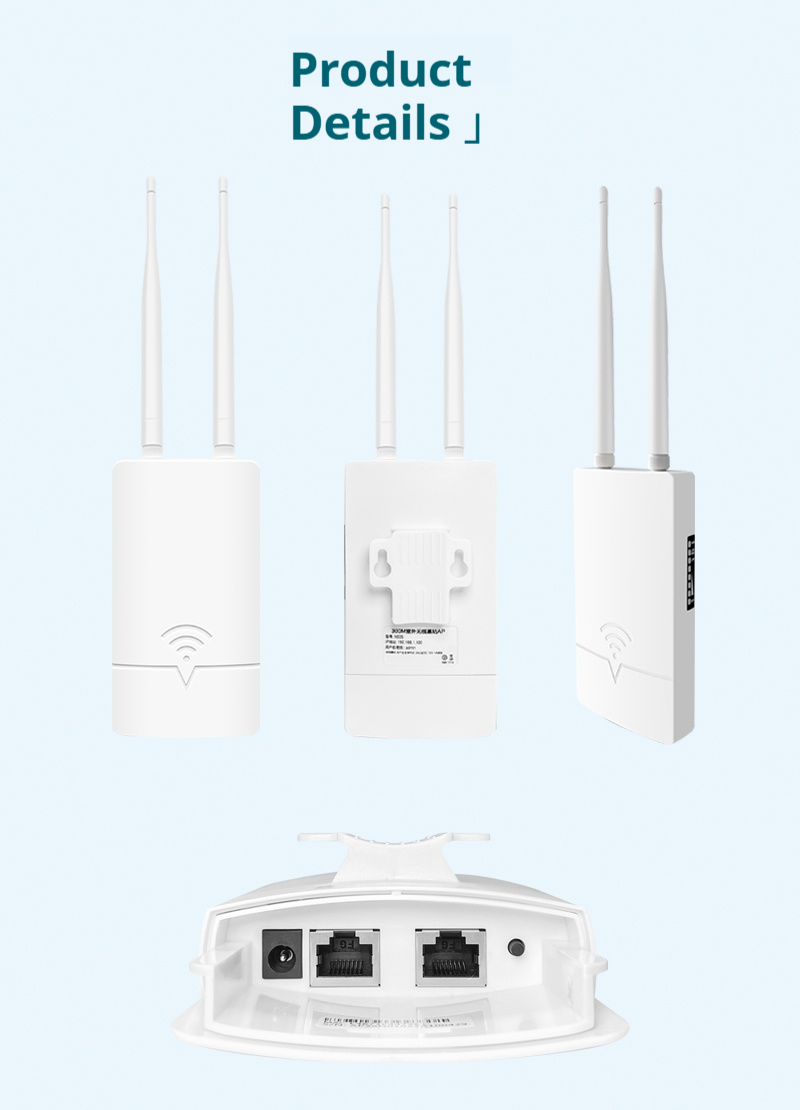

Device Interfaces

WAN PoE*1/LAN*1 10/100Mbps adaptive

DC power supply interface, suitable for power plug

with outer diameter of 5.5mm, inner diameter of

2.1mm, and length of at least 9.5mm.

RP-SMA external threaded and internal pin connectors *2

Buttons

Reset button for factory reset (long press for 6 seconds to reset)

Indicators

PWR,LAN/WAN,LAN,WLAN*4

Antennas

External 2.4G 5dBi outdoor omnidirectional rubber rod antenna *2

Power

24V/0.5A PoE power supply,DC 12V/1A

Operating/Storage Temperature

-40℃~55℃/

-50℃~70℃

Operating/Storage Humidity

10%~90%(non-condensing) /

5%~90%(non-condensing)

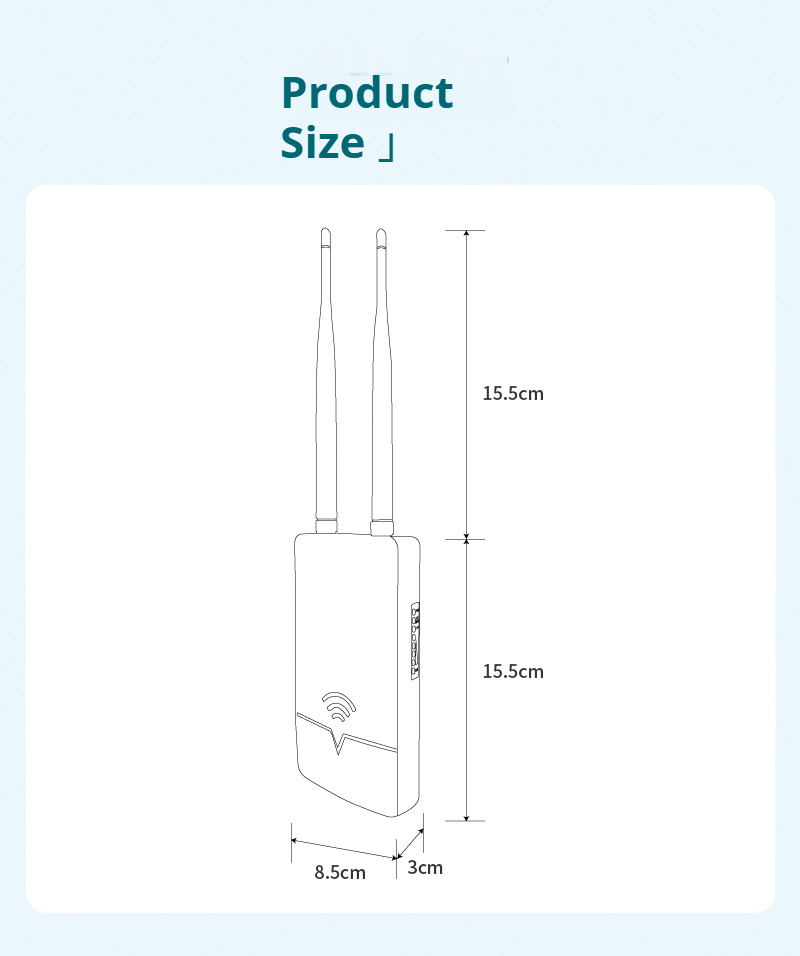

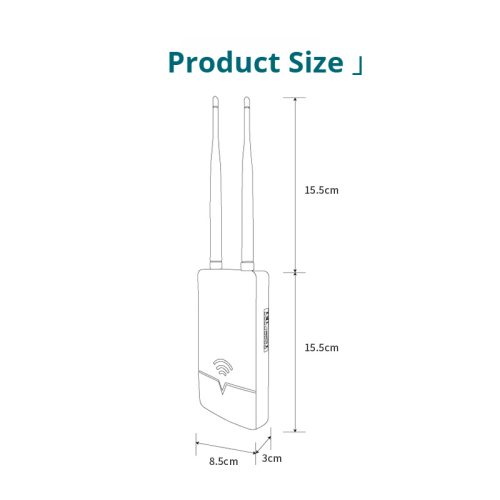

Dimensions

15.5*8.5*3CM(Excluding antennas, antenna length is 15.5cm)

Weight

0.1KG

WiFi Spec

Frequency Range

2.4G:2.4~2.4835GHz

5G: UNII-1: 5.15~5.35GHz

UNII-2: 5.47~5.725GHz

UNII-3: 5.725~5.825GHz

Channel

2.4G: 1,2,3,4,5,6,7,8,9,10,11,12,13

5G: 36,40,44,48,52,60,64,149,153,157,161,165

Modulation

802.11b: DSSS (DQPSK, DBPSK, CCK)

802.11g: OFDM (BPSK, QPSK,16-QAM)

802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM)

802.11ac: OFDM (BPSK, QPSK,64-QAM, 256-QAM)

Transmission Rate

11b up 11Mbps,11g up 54Mbps,11n up 300Mbps

11ac up 867Mbps

Receiver

Sensitivity

2.4G:

11b:<-90±1.5dBm @1Mbps,

<-84±1.5dBm dBm@11Mbps

11g:<-86±1.5dBm@6Mbps,

<-69±1.5dBm @54Mbps

11n 20MHz:<-85±1.5dBm@MCS0,

<-67±1.5dBm @MCS7

11n 40MHz:<-82±1.5dBm @MCS0,

<-64±1.5dBm @MCS7

5G:

11a:<-86±1.5dBm @6Mbps,

<-69±1.5dBm @54Mbps

11n 20MHz:<-85±1.5dBm@MCS0,

<-67±1.5dBm @MCS7

11n 40MHz:<-82±1.5dBm @MCS0,

<-64±1.5dBm @MCS7

11ac 20MHz:<-84±1.5dBm @MCS0,

<-59±1.5dBm @MCS8

11ac 40MHz:<-82±1.5dBm @MCS0,

<-56±1.5dBm @MCS9

11ac 80MHz:<-78±1.5dBm @MCS0,

<-52±1.5dBm @MCS9

Transmit Power

11b: 27dBm±1.5dBm@11Mbps

11g: 27dBm±1.5dBm@54Mbps

11n(20/40MHz): 27dBm±1.5dBm@MCS7

11ac(40/80MHz): 27dBm±1.5dBm@MCS9

Software functions

Working Mode

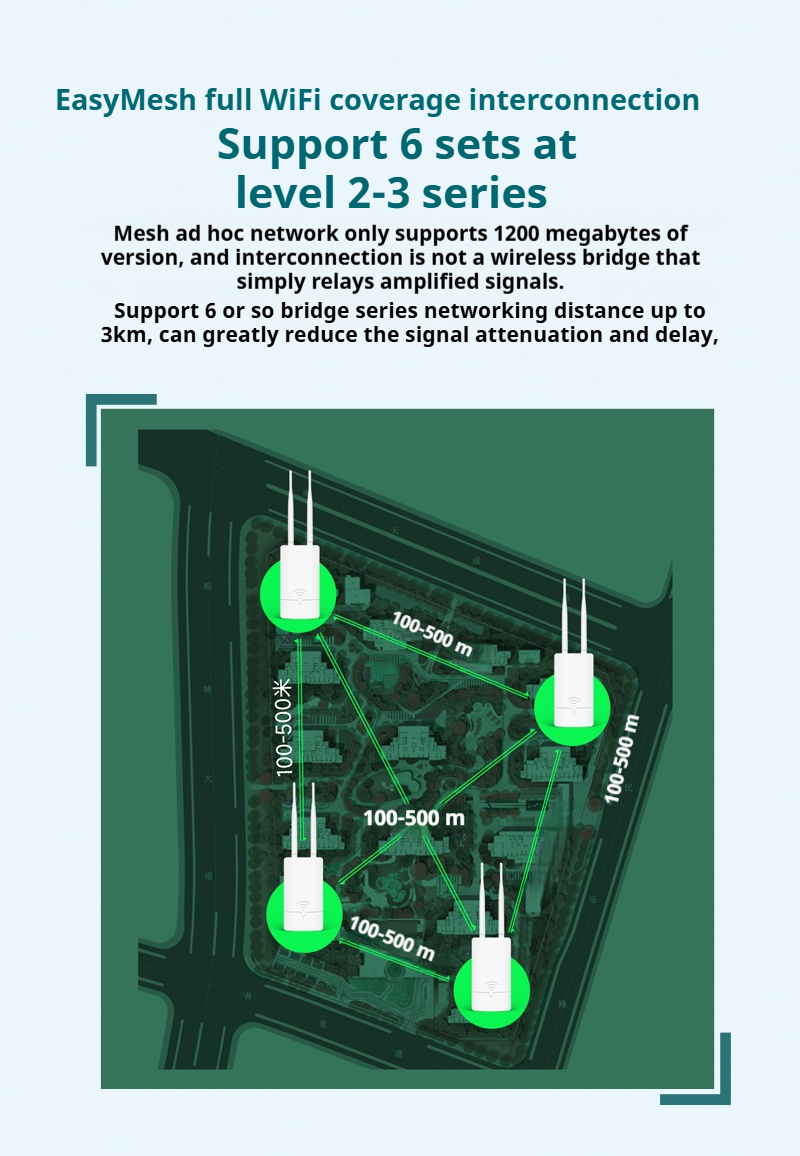

AP/Route/MESH

Capacity

64 Users

Management mode

English/Chinese WEB remote management

Status

System/Wireless/Real-time traffic

Network

DHCP/Static IP/PPPoE

Wireless

Wireless switch, SSID, encryption, Password, Wireless multimedia, Isolation, Hidden

System

Device name, system upgrade, configuration restore, backup configuration, factory reset, reboot device.

Advanced configuration

RF configuration, multiple wireless configuration,

Scheduled switch, Ping watchdog, Scheduled reboot,

Change password, Time management, Diagnostics
