Electrical Specification
|
|
|

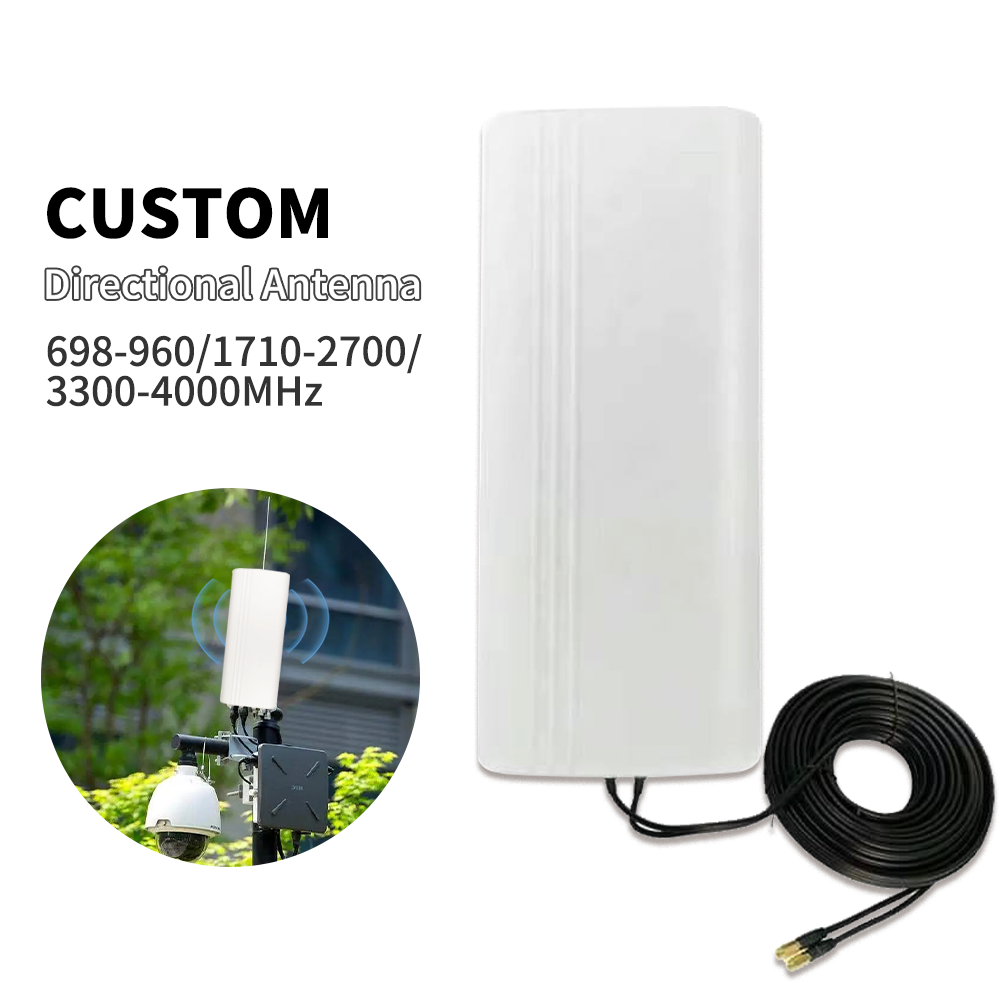

Frequency Range
|
698-960/1710-2700/3300-4000MHz
|
|
Gain
|
4×8 dBi
|
|
Polarization
|
Vertical
|
|

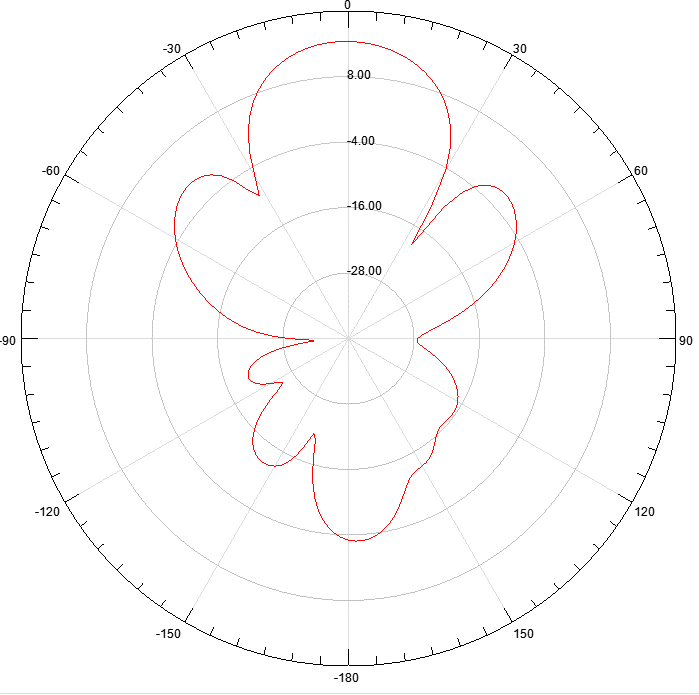

Horizontal Half-power Beam width
|
45±3º
|
|
Vertical Half-power Beam width
|
45±3º
|
|
Front to back ratio(dB)
|
≥23
|
|
VSWR
|
≤1.5
|
|
Input Impedance
|
50Ω
|
|
Maximum input power
|
100W
|
|
Lightning protection
|
DC Ground
|
|
Mechanical Specification
|
|
|

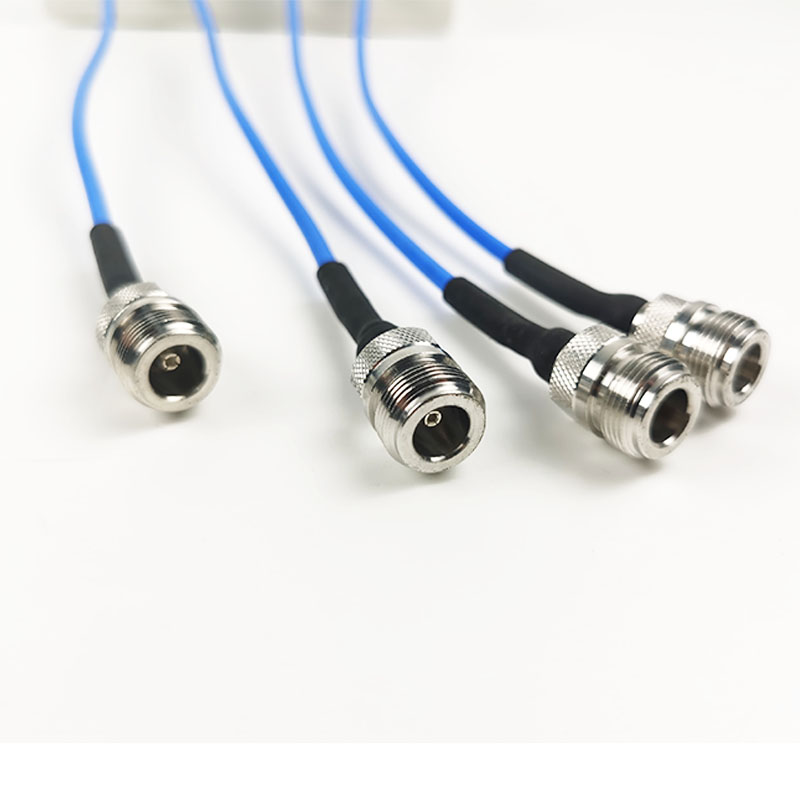

Input connector type
|
N Female or Customized
|
|

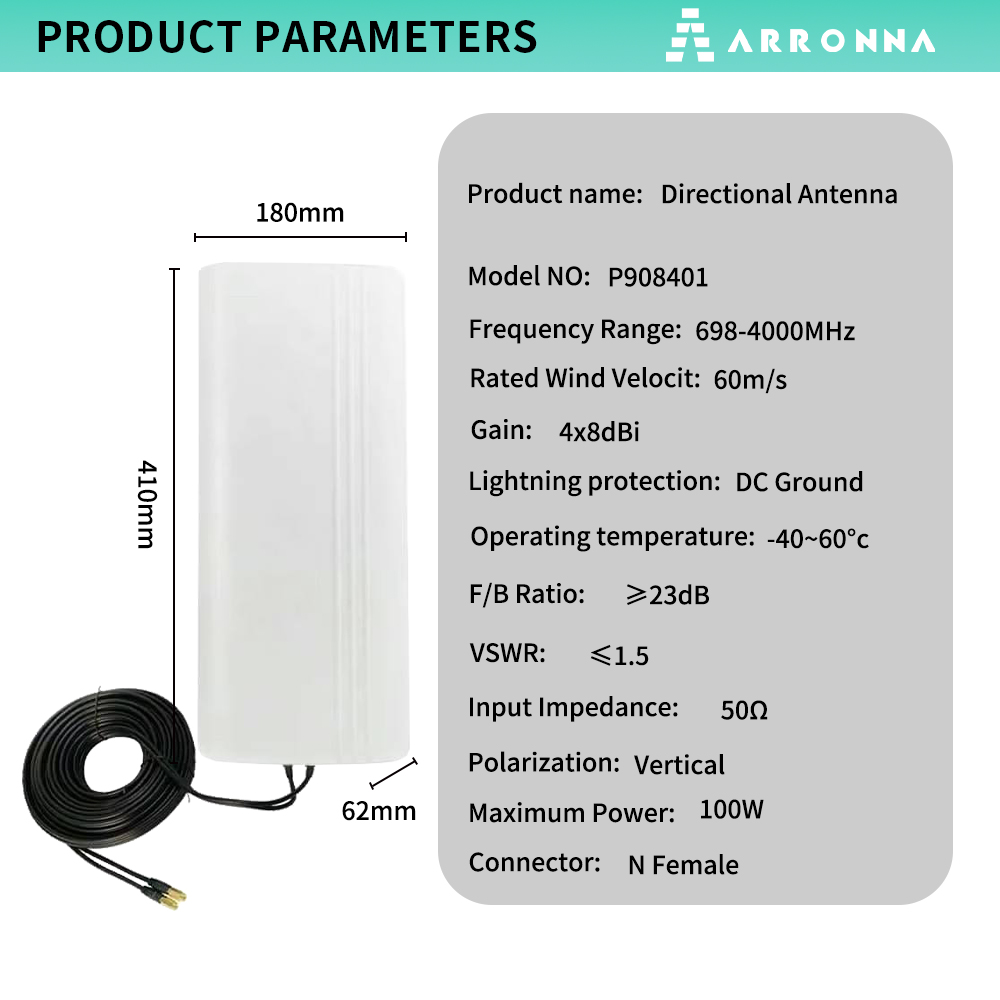

Dimensions(Heigh/width/depth)
|
410*180*60mm
|
|
Antenna weight
|
1.20kg
|
|
Radome material
|
UPVC
|
|
Radome color
|
Gray
|
|
Mechanical tilt
|
0°~10°
|
|
Operating temperature
|
-40℃~60℃
|
|
Rated Wind Velocit
|
60m/s
|
|

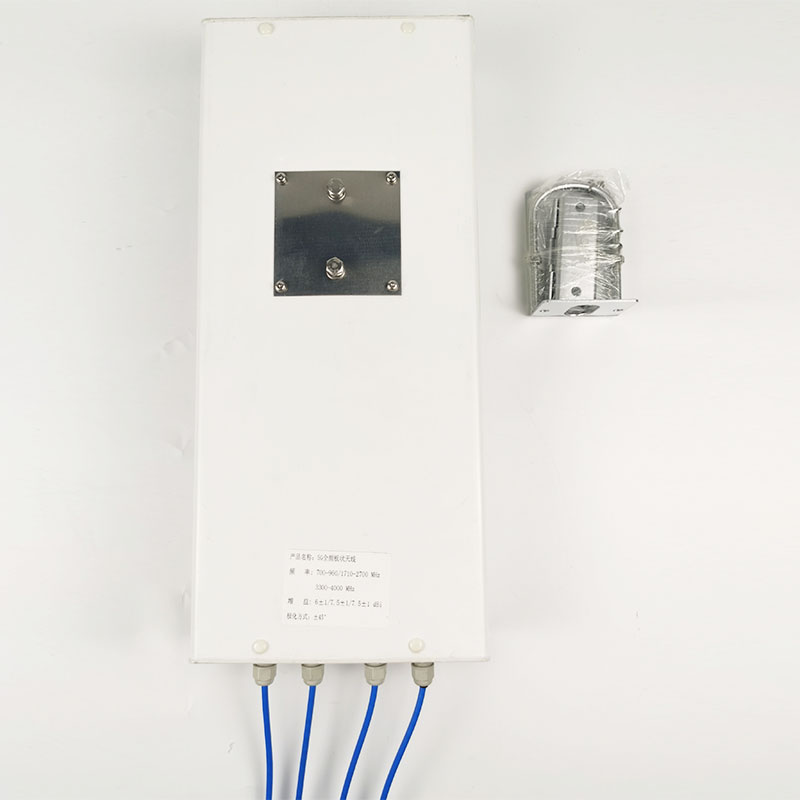

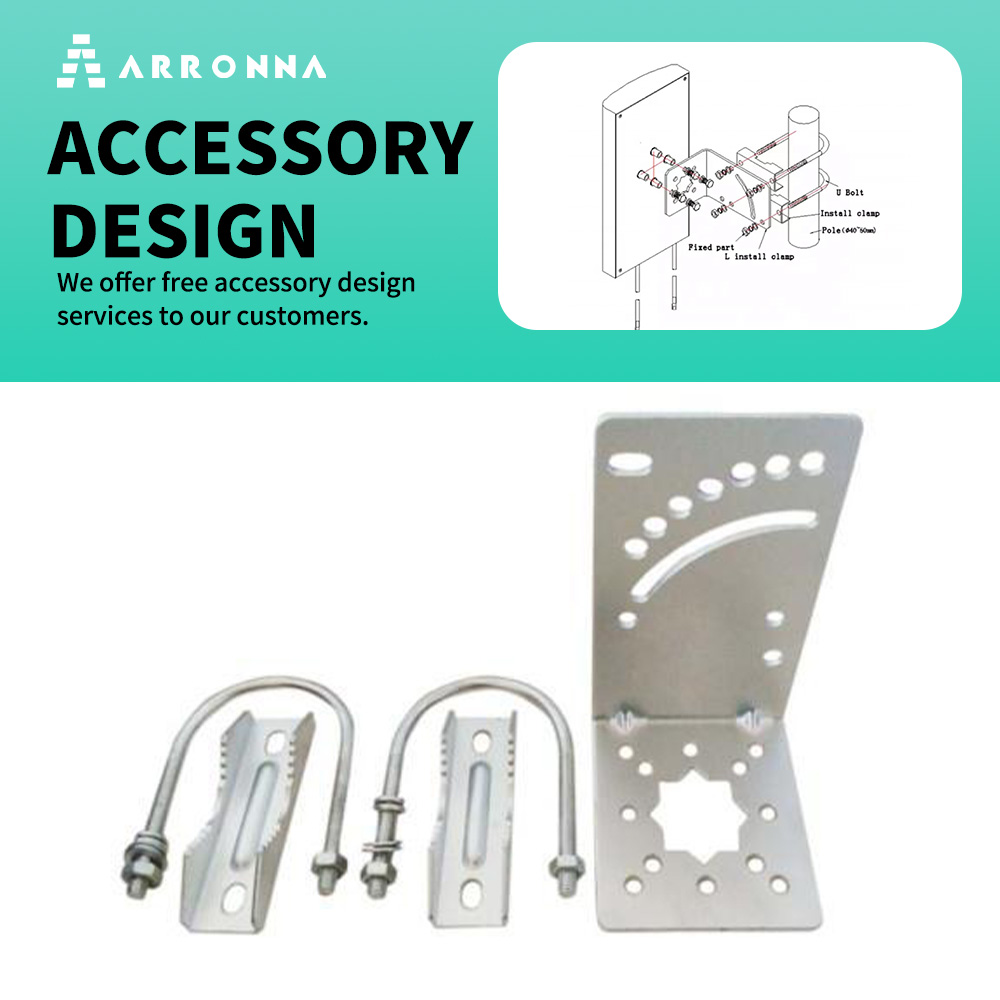

Mounting hardware
|
φ35mm~φ90mm
|
Q1: Can I print my logo on the product? Can I customize the colors and finish type?
A: Yes, all appearances are customizable.
Q2: I like the design but want to change the solution, is it possible?
A: Yes we can do that.
Q3: I like the solution/audio but want my own design, is it possible?
A: Yes, we specialize in customized designs for our customers, we can even do new designs for you and give you concepts within a week time.
Q4: I want a different type of packaging, is it possible?
A: Yes. Currently 1000 charges, more than 2,000 the number of and free .(according to the type of carton or plastic packaging).
Q5: I want samples with my own logo, is it possible?
A: Yes it is possible. A small charge may apply depending on requirements.
Q6: How long is the sample time? And the payment term?
A: Samples will be transport in 7-10 days normally, OEM samples will be 10-15 days. You can pay sample fee via Paypal ,Western Union or T/T.
Q7: Are you factory or trading company? And how many stuff do you own?
A: Our enterprises in Shenzhen to create antenna at least ten years of production experience. Our staff in factory 100-200.
