描述
| Electrical Specifications | ||||||

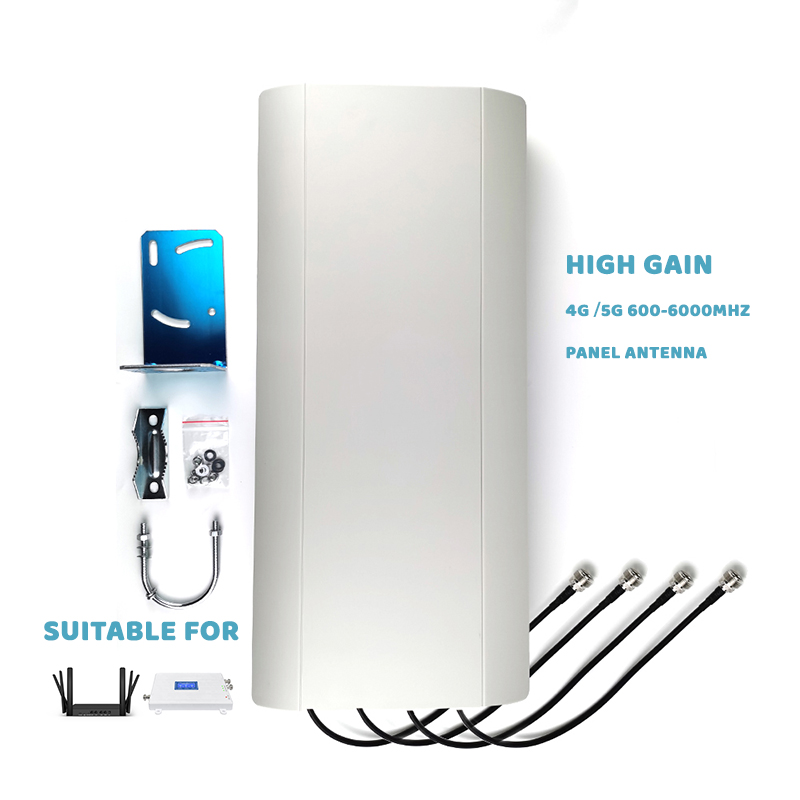

| Frequency range(MHz) | 600-698 | 698-960 | 1710-2700 | 3300-6000 | ||
| Gain(dBi) | 6±0.5 | 7±0.5 | 8±0.5 | 8±0.5 | ||
| Polarization | Vertical and Horizontal | |||||
| Half-power beam width(°) | H:95 V:85 | H:85 V:75 | H:75 V:65 | H:73 V:60 | ||
| VSWR | ≤2.0 | |||||
| Isolation between ports (dB) | ≥14 | ≥15 | ≥20 | ≥22 | ||
| Input Impedance(Ω) | 50 | |||||
| Maximum input power(W) | 100 | |||||
| Lightning protection | DC Ground | |||||
| Input connector type | 4 x N Female / 4 x 4.3-10 Female | |||||
| Mechanical Specifications | ||||||

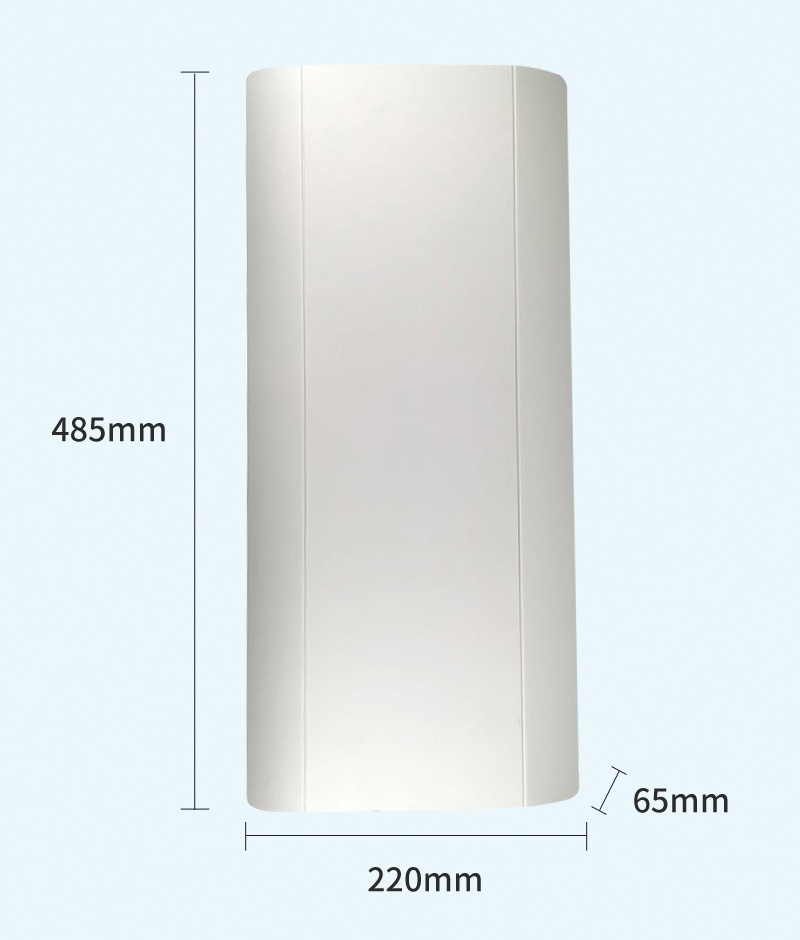

| Dimensions(mm) | 485*220*65 | |||||
| Antenna weight(kg) | 1.5 | |||||
| Package size (mm) | 540*224*110 | |||||
| Operating temperature(°c) | -40~60 | |||||
| Radome material | ABS | |||||
| Radome color | Grey | |||||

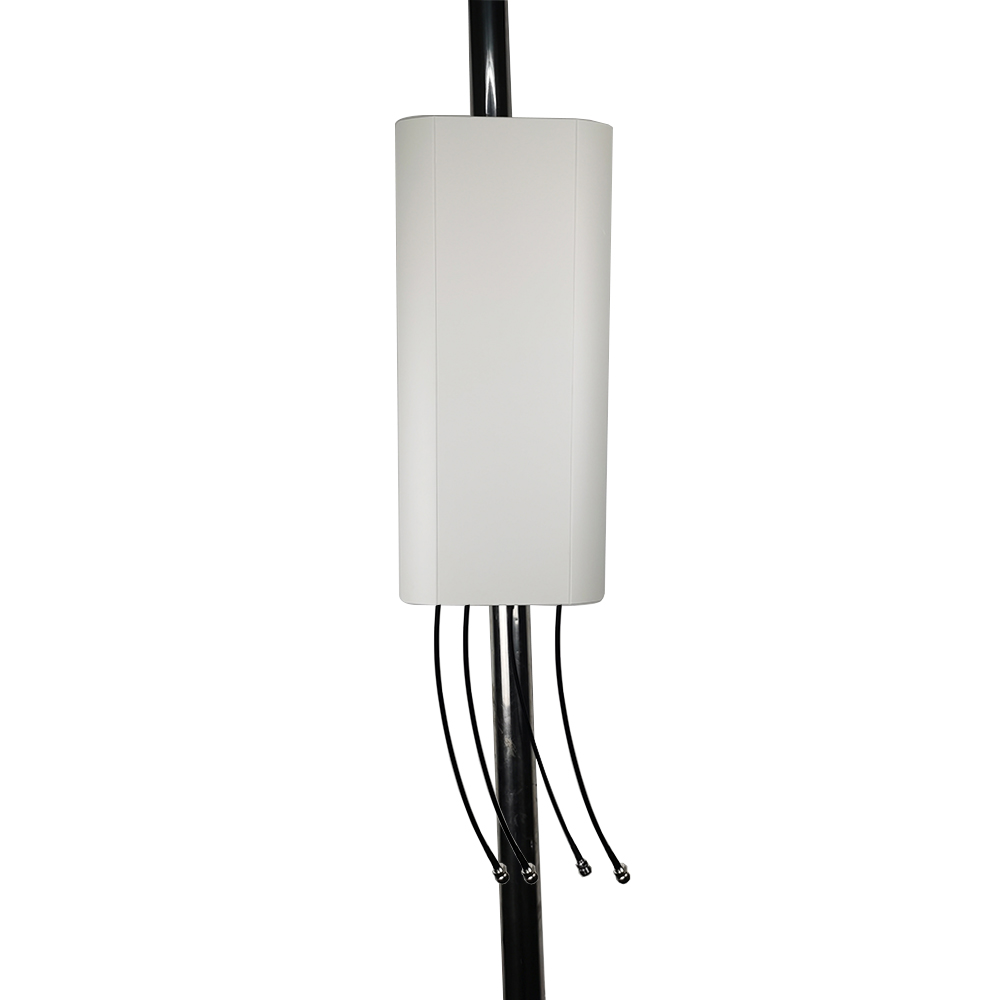

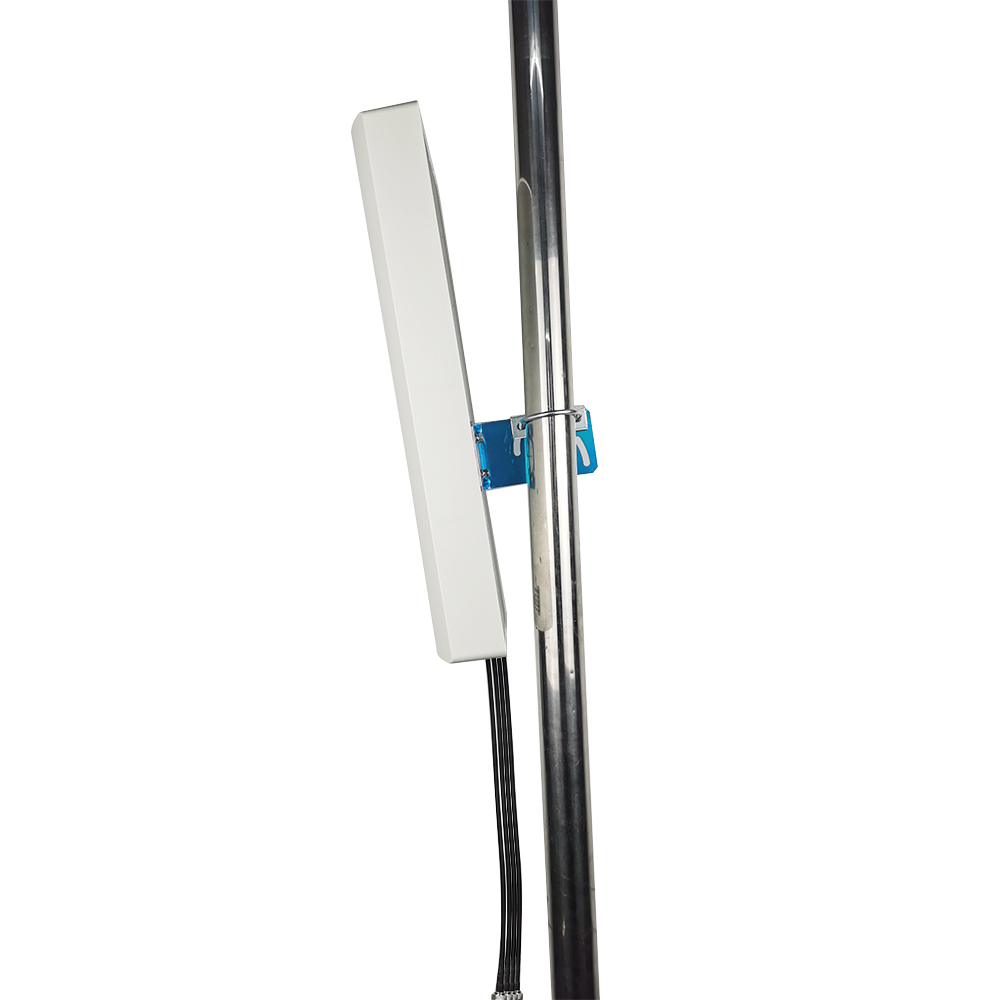

| Mounting way | pole-holding | |||||

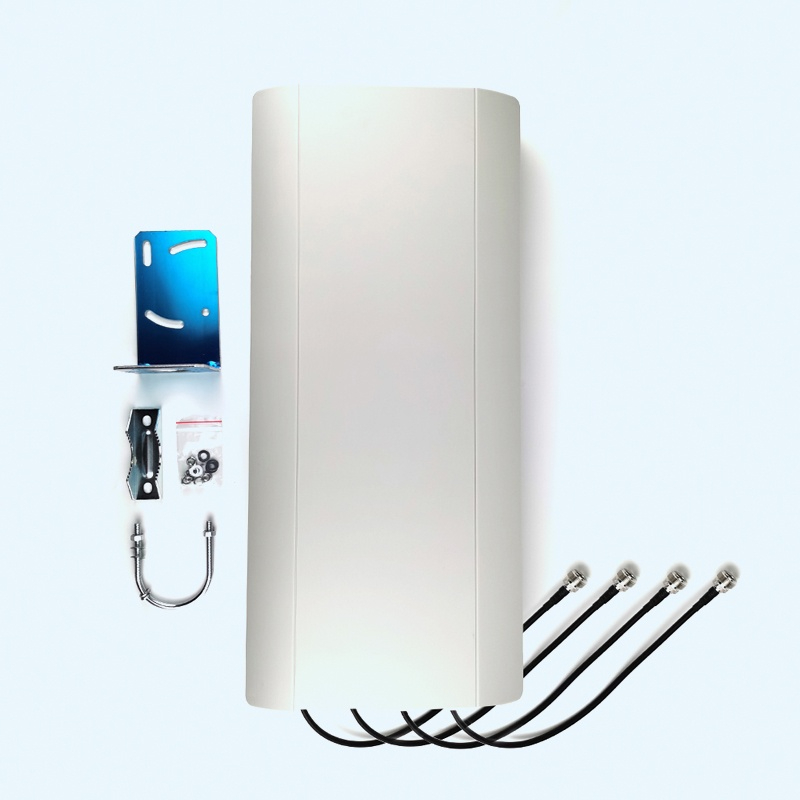

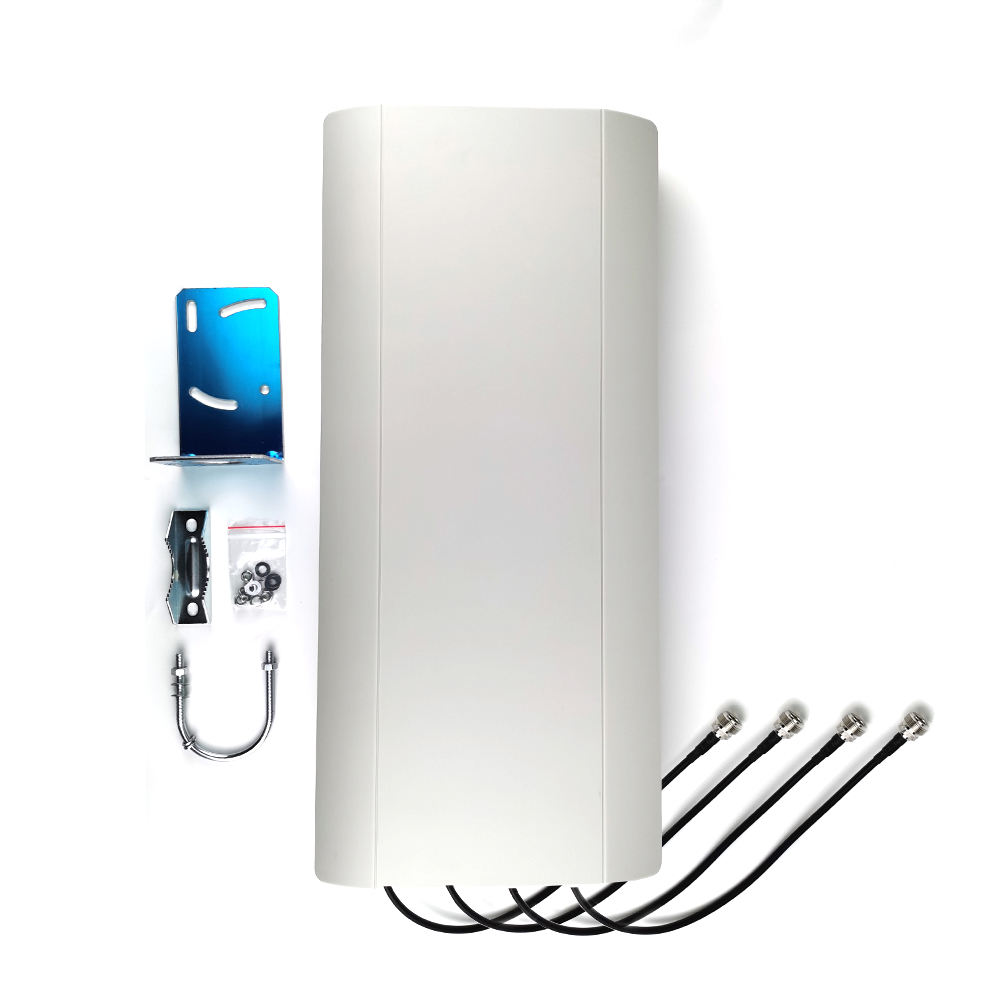

| Mounting hardware(mm) | φ35~φ50 | |||||
Q1: Can I print my logo on the product? Can I customize the colors and finish type?
A: Yes, all appearances are customizable.
Q2: I like the design but want to change the solution, is it possible?
A: Yes we can do that.
Q3: I like the solution/audio but want my own design, is it possible?
A: Yes, we specialize in customized designs for our customers, we can even do new designs for you and give you concepts within a week time.
Q4: I want a different type of packaging, is it possible?
A: Yes. Currently 1000 charges, more than 2,000 the number of and free .(according to the type of carton or plastic packaging).
Q5: I want samples with my own logo, is it possible?
A: Yes it is possible. A small charge may apply depending on requirements.
Q6: How long is the sample time? And the payment term?
A: Samples will be transport in 7-10 days normally, OEM samples will be 10-15 days. You can pay sample fee via Paypal ,Western Union or T/T.
Q7: Are you factory or trading company? And how many stuff do you own?
A: Our enterprises in Shenzhen to create antenna at least ten years of production experience. Our staff in factory 100-200.
