5G LTE Antenna
|
Antenna Name
|

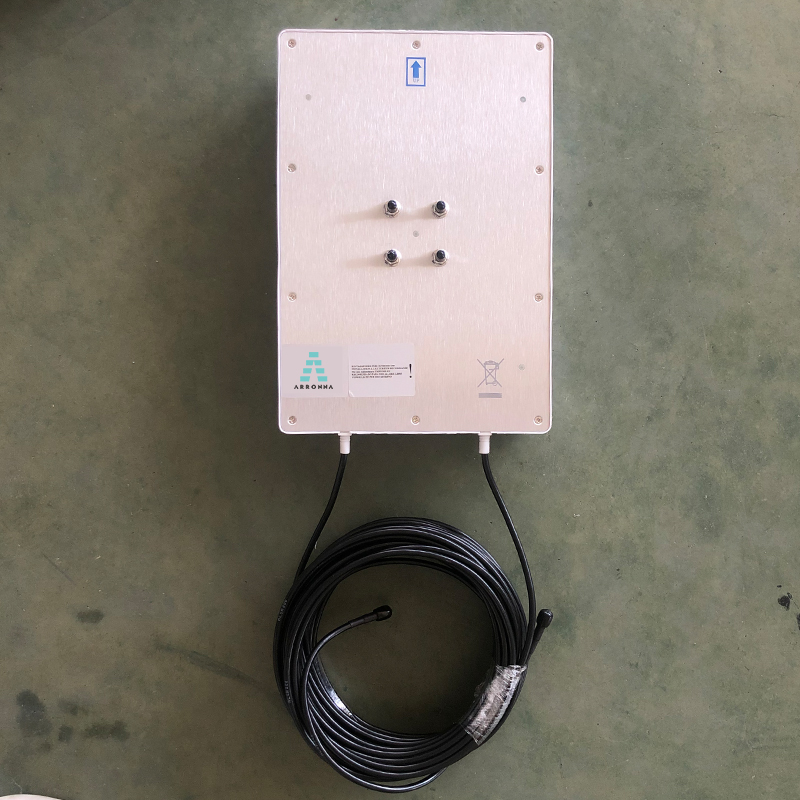

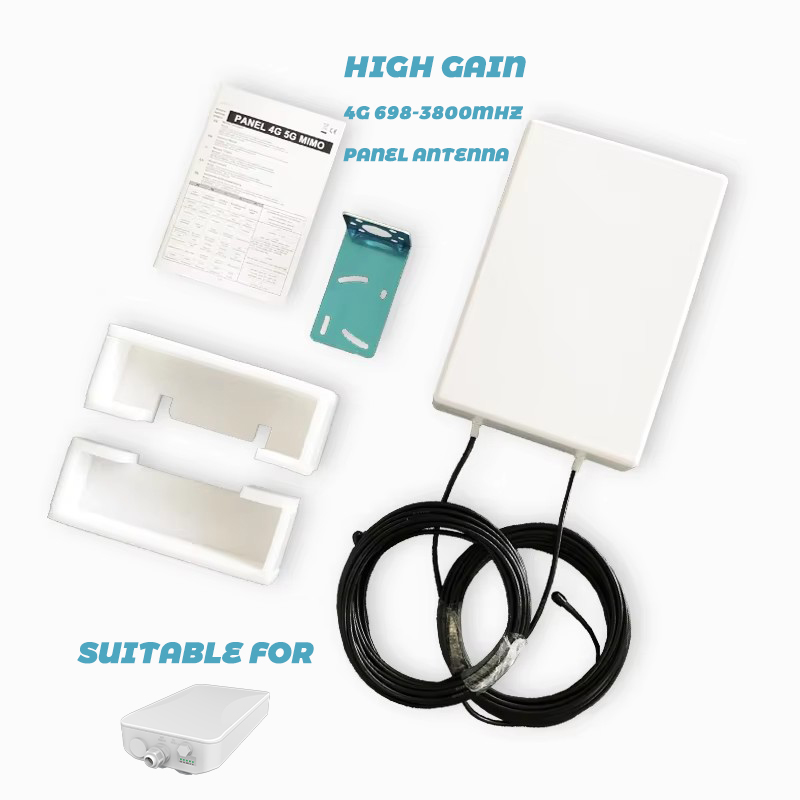

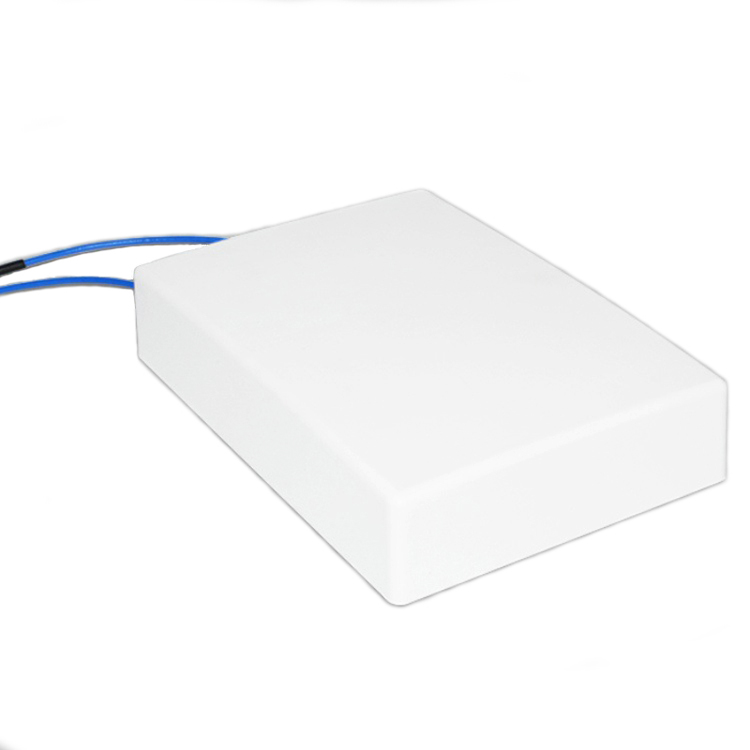

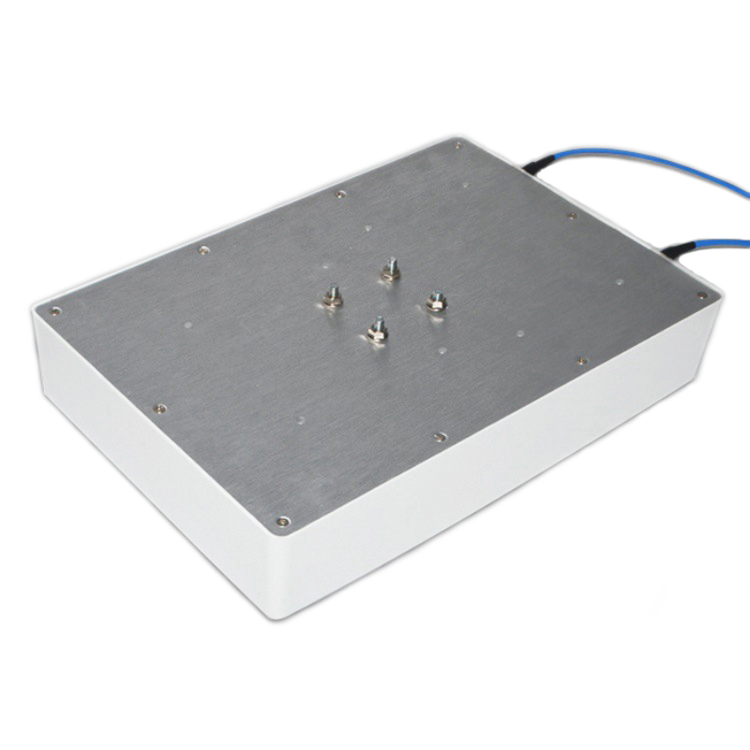

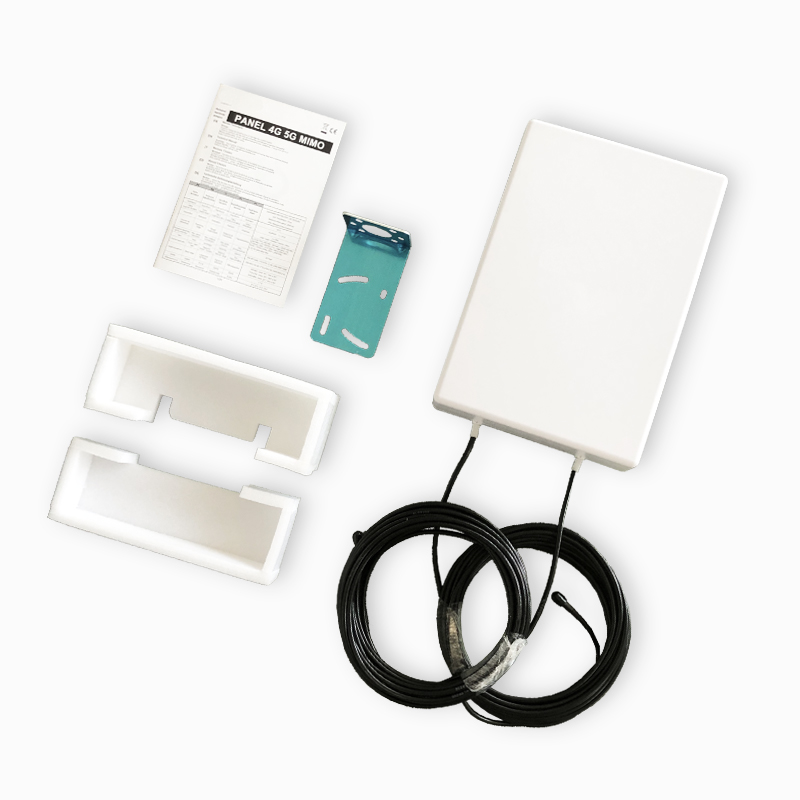

700-3800MHz Dual-polarization Panel Antenna
|
|||||
|
Model No.
|
P512201
|
|||||
|
Electric Specification
|
||||||
|
Frequency Range-MHz
|
698-960
|
1710-2700
|
3300-3800
|
|||
|
Gain-dBi
|
9
|
12
|
12
|
|||
|
Horizontal half-power beam
width (°) |
65
|
30
|
28
|
|||
|
Vertical half-power beam width
(°) |
75°
|
55°
|
65°
|
|||
|
VSWR
|
≤1.5
|
≤1.5
|
≤1.5
|
|||
|
Polarization
|
±45°
|
±45°
|
±45°
|
|||
|
F/B Ratio(dB)
|
≥20
|
≥23
|
≥23
|
|||
|
Isolation(dB)
|
18
|
22
|
22
|
|||
|
Input Impedance
|
50Ω
|
|||||
|
Power capacity (W)
|
50
|
|||||
|
Connector Type
|

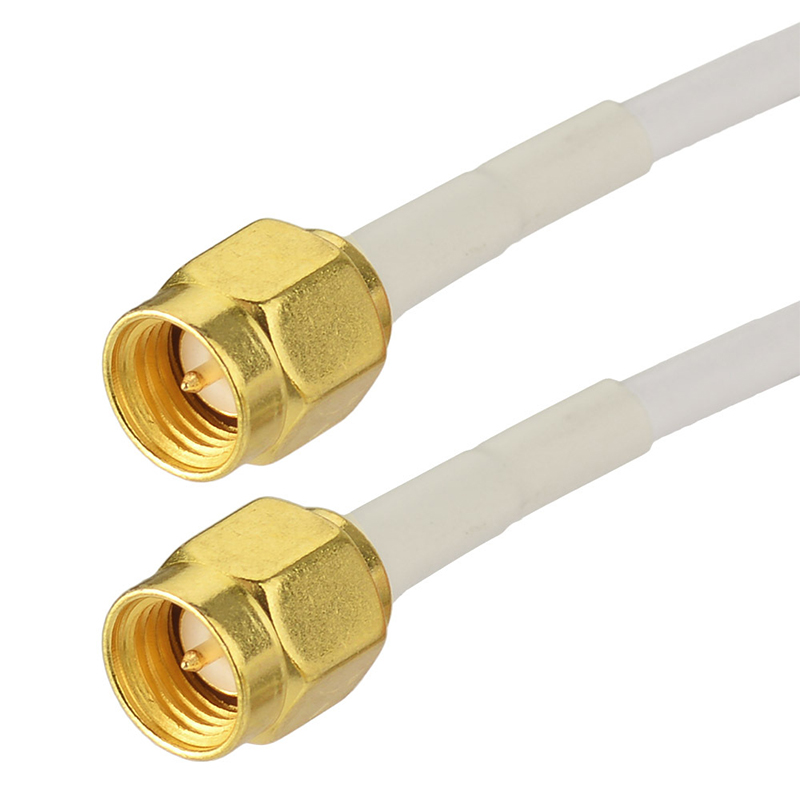

2×SMA（male），RG58 Cable 1 meter
|
|||||
|
Lightning protection
|
DC Ground
|
|||||
|
Mechanical Specification
|
||||||
|
Product Dimensions -mm
|
300*205*65
|
|||||
|
Product Weight-KG
|
≤5kg
|
|||||
|
Radiator material
|
aluminum/PCB
|
|||||
|
Mechanical adjustment range (°)
|
±35°
|
|||||
|
Radome material
|
ABS
|
|||||
|
Installation method
|

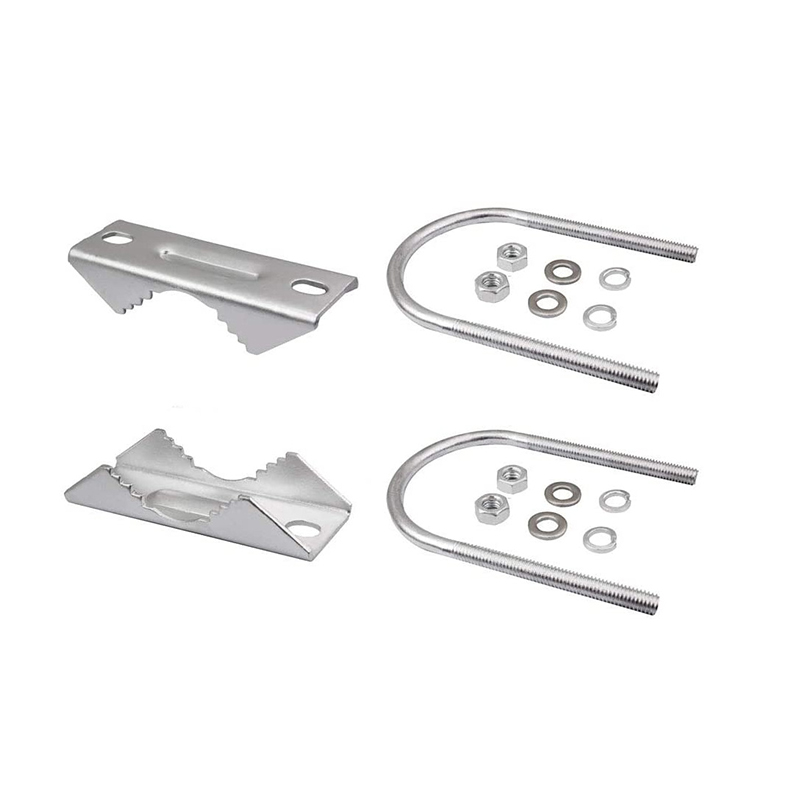

Pole installation / mount installation
|
|||||
|
Environmental requirements
|
||||||
|
Ambient temperature(℃)
|
Working temperature：-40℃～+60℃；
Limit temperature：-55℃～+75℃ |
|||||
|
Relative humidity
|
≤95%
|
|||||
|
Ice thickness
|
10mm
|
|||||
|
Maximum wind speed
|
200km/h
|
|||||
|
Waterproof and dustproof
|
IP60
|
|||||
