描述

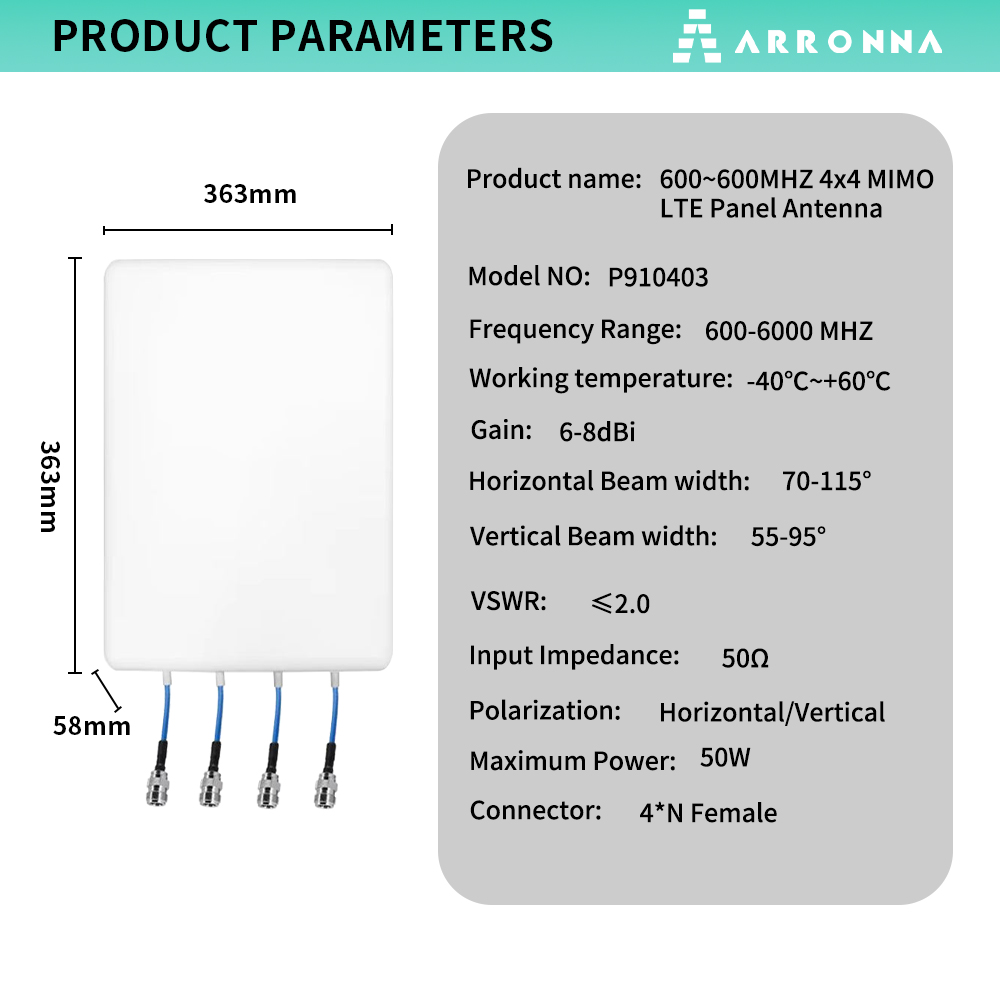

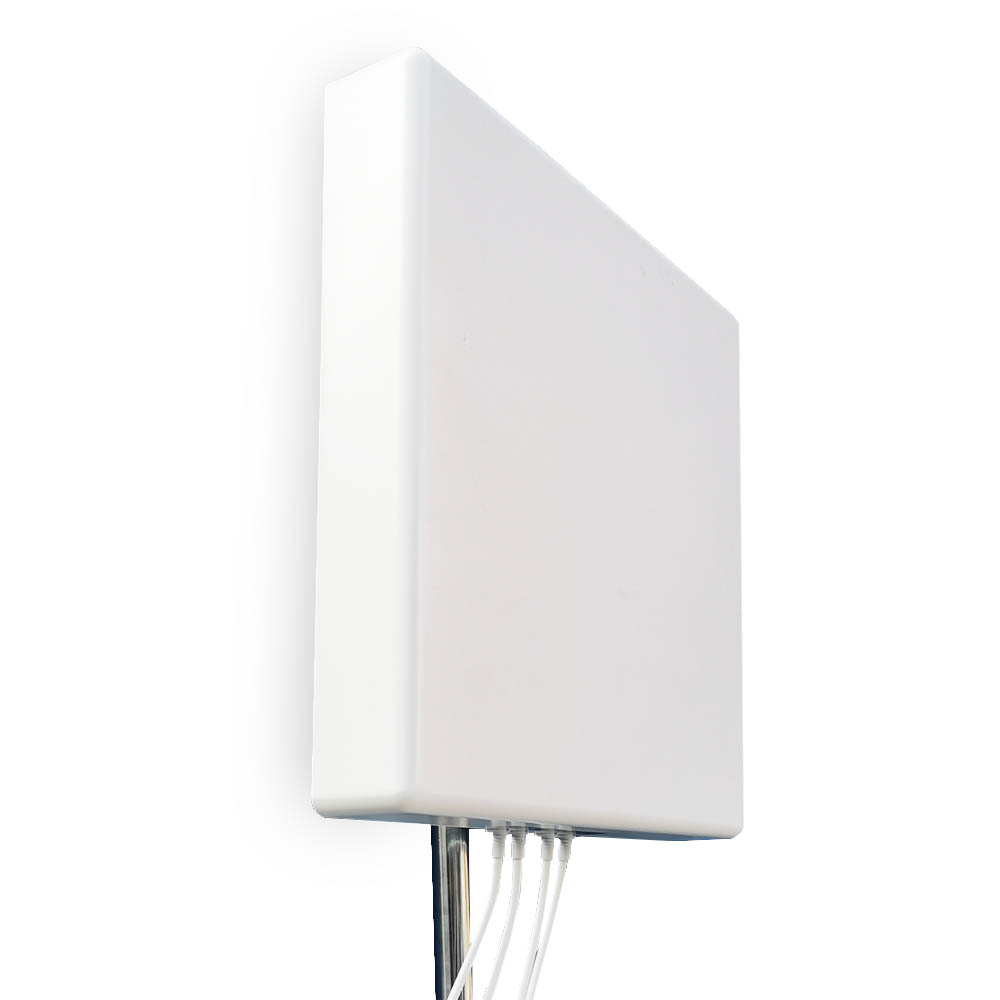

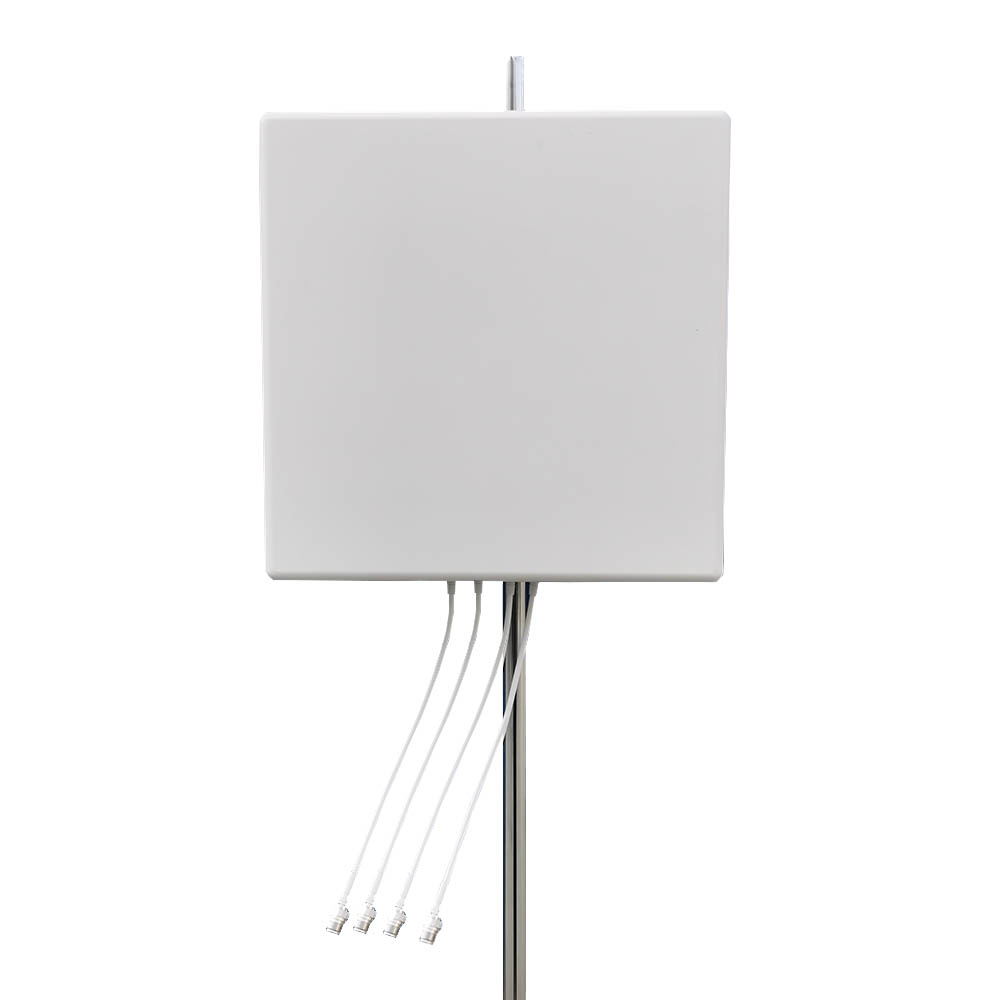

| Product Name | 600~600MHZ 4×4 MIMO LTE Panel Antenna | ||||
| Electric Specification | |||||
| Model No. | P910403 | ||||
| Frequency Range-MHz | 600-698Mhz | 698-960Mhz | 1710-2700Mhz | 3300-4200Mhz | 4900-6000Mhz |
| Gain-dBi | 6±0.5 | 7±0.5 | 8±0.5 | 8±0.5 | 6±0.5 |
| V.S.W.R. | ≤ 2.0 | ≤ 2.0 | ≤ 2.0 | ≤ 2.0 | ≤ 2.5 |
| Horizontal | 115 | 95 | 75 | 73 | 70 |
| half-power beam width (°) | |||||
| Vertical | 95 | 60 | 50 | 60 | 55 |
| half-power beam width (°) | |||||
| Isolation(dB) | ≥14 | ≥15 | ≥20 | ≥22 | ≥22 |
| Input Impedance Ω | 50 | ||||
| Polarization | Horizontal and Vertical | ||||
| Power capacity (W) | 50 | ||||
| Connector Type | 4*N Female | ||||
| Lightning protection | DC Ground | ||||
| Mechanical Specification | |||||

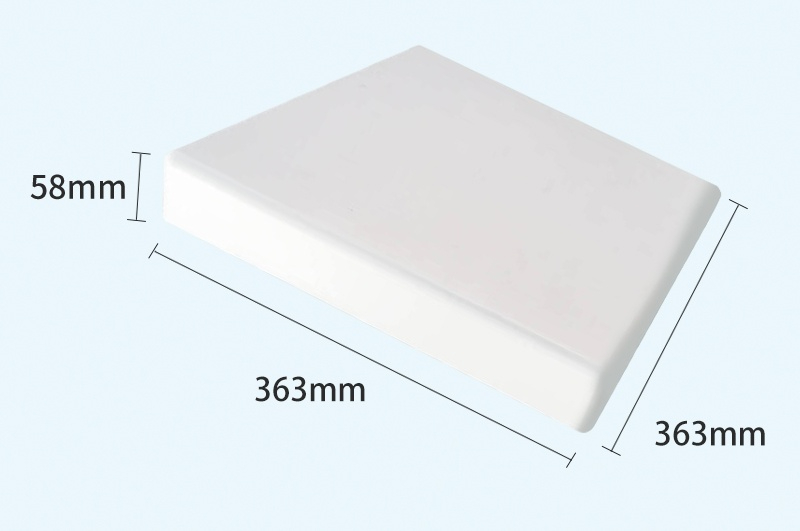

| Product Size-mm | 363*363*58 | ||||
| Radone Color | White | ||||
| Radone Material | ABS, Aluminum, Fiberglass, Galvanized steel | ||||
| Weight KG | 2 | ||||
| Working temperature(℃) | -40℃~+60℃ | ||||

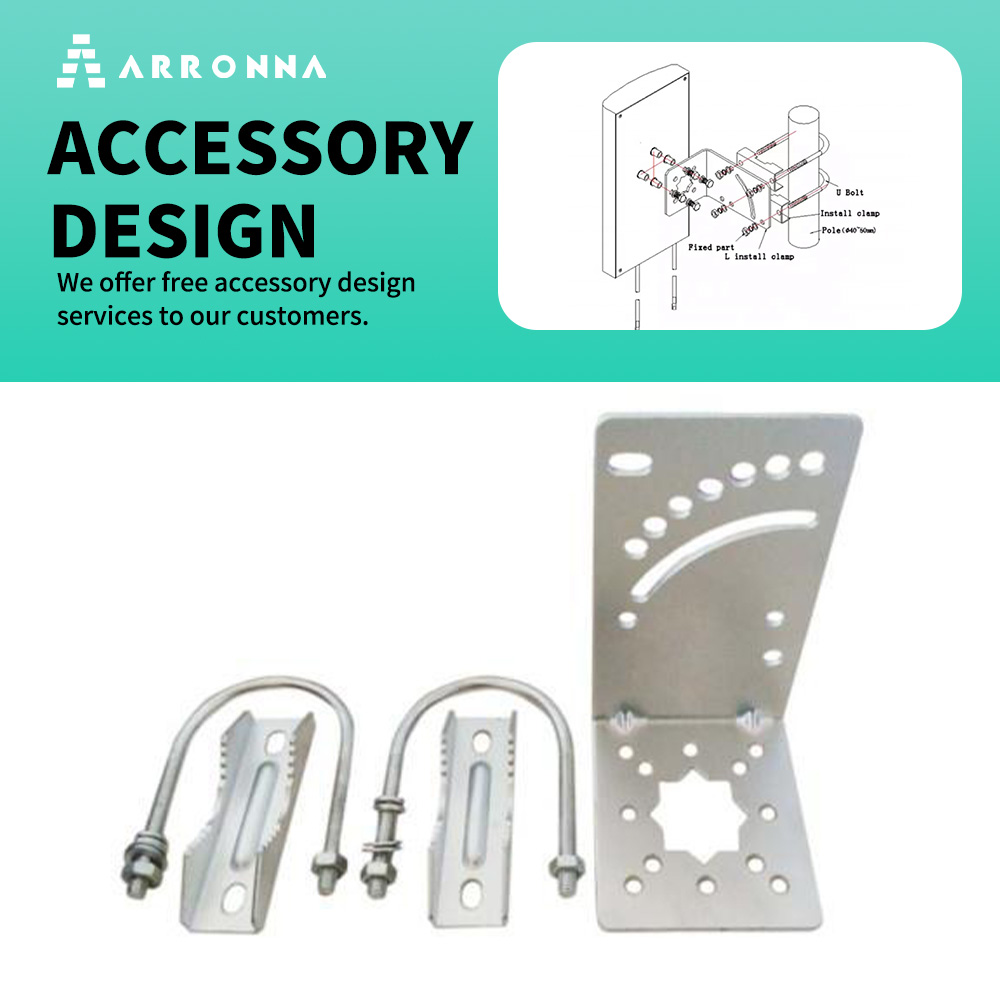

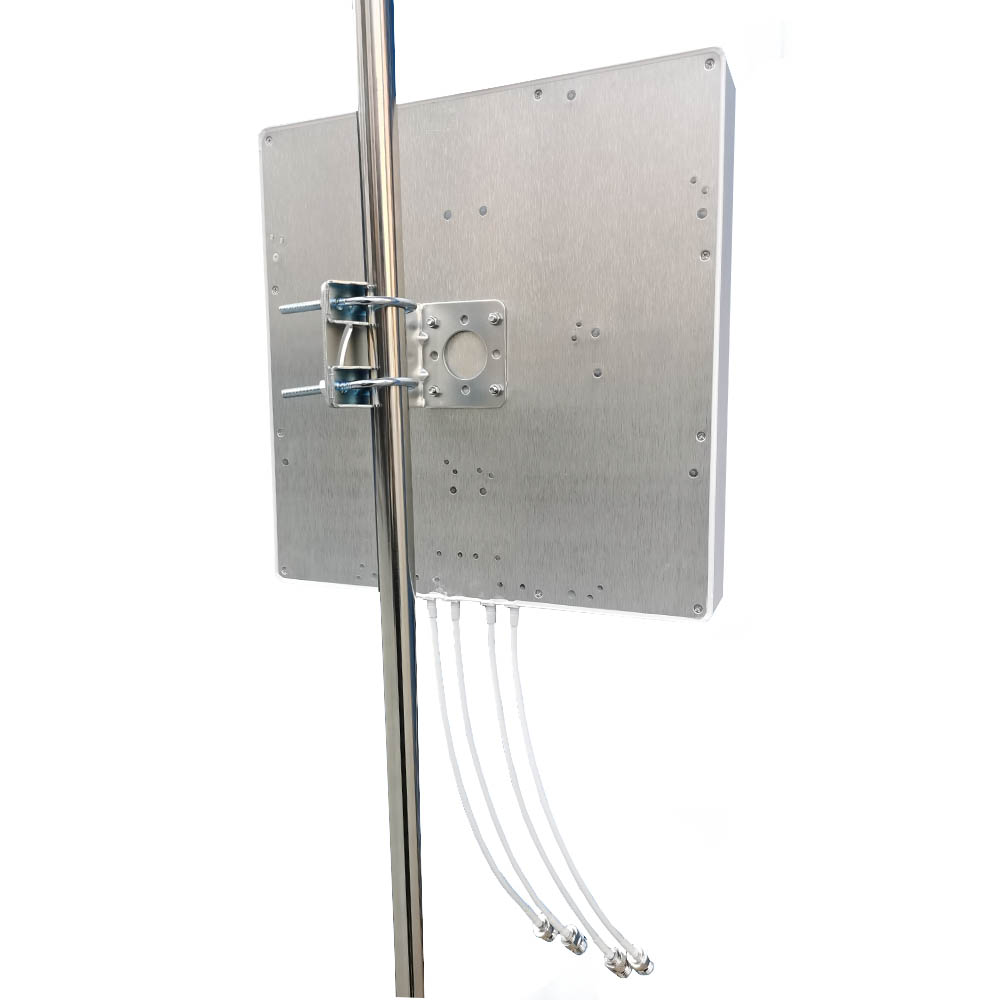

| Mounting Way | Pole installation | ||||
| Installation-mm | Φ35~Φ50 | ||||
Q1: Can I print my logo on the product? Can I customize the colors and finish type?
A: Yes, all appearances are customizable.
Q2: I like the design but want to change the solution, is it possible?
A: Yes we can do that.
Q3: I like the solution/audio but want my own design, is it possible?
A: Yes, we specialize in customized designs for our customers, we can even do new designs for you and give you concepts within a week time.
Q4: I want a different type of packaging, is it possible?
A: Yes. Currently 1000 charges, more than 2,000 the number of and free .(according to the type of carton or plastic packaging).
Q5: I want samples with my own logo, is it possible?
A: Yes it is possible. A small charge may apply depending on requirements.
Q6: How long is the sample time? And the payment term?
A: Samples will be transport in 7-10 days normally, OEM samples will be 10-15 days. You can pay sample fee via Paypal ,Western Union or T/T.
Q7: Are you factory or trading company? And how many stuff do you own?
A: Our enterprises in Shenzhen to create antenna at least ten years of production experience. Our staff in factory 100-200.
