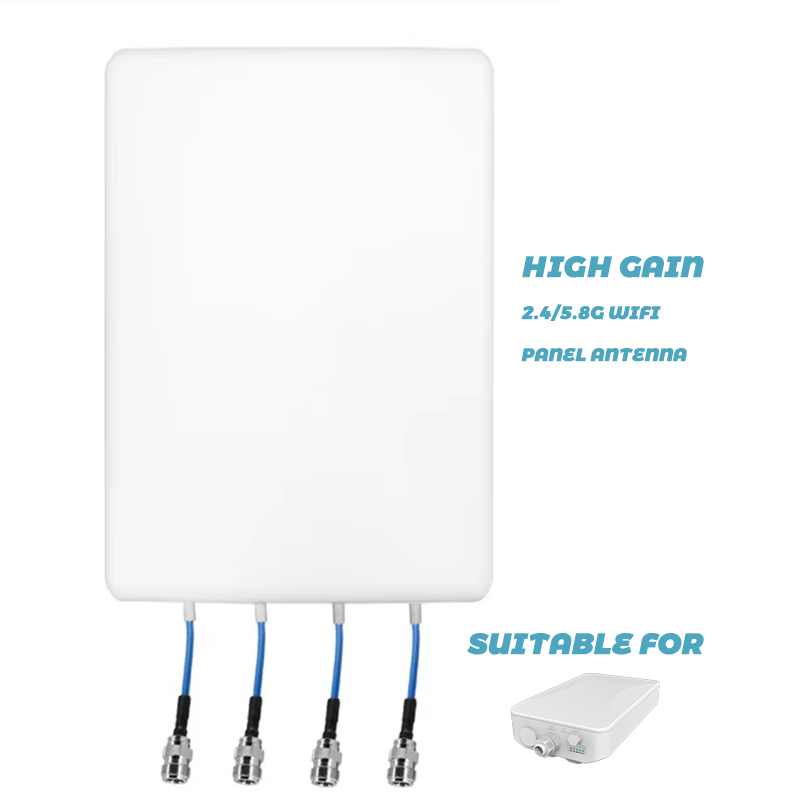

2.4G/5.8G Communication Antenna
Dual band 4 interface High Gain 2.4g/5.8g Wifi Outdoor Directional
Mimo Panel wifi antenna long range
Products Description
|
Product name
|
2400-2500/5750-5850MHZ-14DBI Dual polarization Panel antenna
|
|||
|
Electric Specification
|
||||
|
Model No.
|
P714463
|
|||
|
Frequency range-MHz
|
2400-2500MHZ
|
5750-5850MHZ
|
||
|
Bandwidth －MHz
|
100
|
100
|
||
|
Gain-dBi
|
14
|
|||
|
VSWR
|
≤ 1.5
|
≤ 2.0
|
||
|
Horizontal Beam width－°
|
38
|
|||
|
Vertical Beam width－°
|
35
|
|||
|
Input Impedance -Ω
|
50
|
|||
|
Polarization
|
Horizontal and Vertical
|
|||
|
Maximum input power -W
|
50
|
|||
|
Connector
|

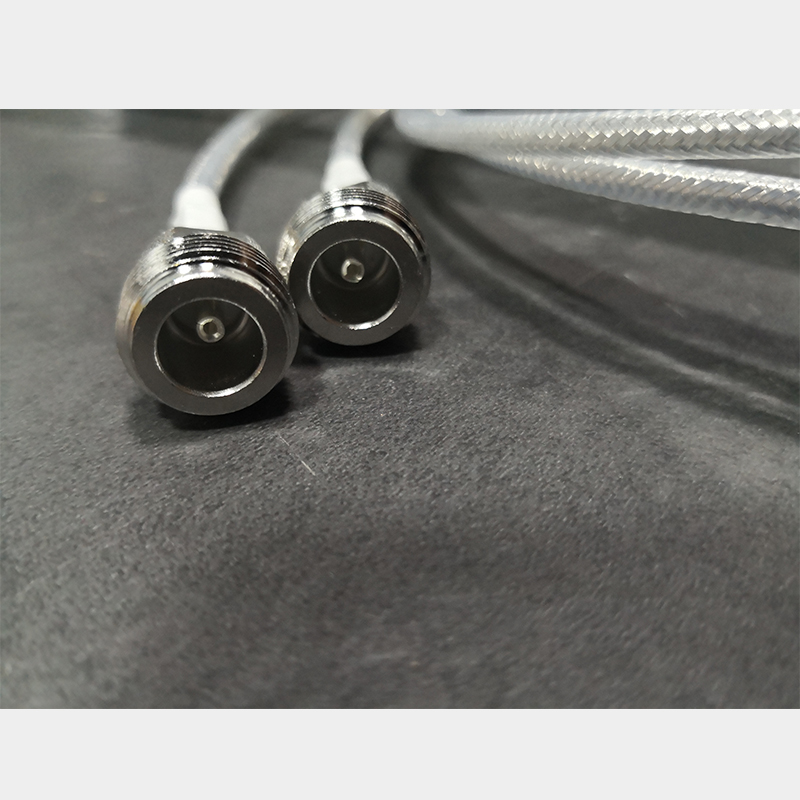

4*N-Female
|
|||
|
Mechanical Specification
|
||||
|
Dimensions -mm
|
300*205*65
|
|||
|
Weight -kg
|
0.8KG
|
|||
|
Pole-mm
|
Φ25-52
|
|||

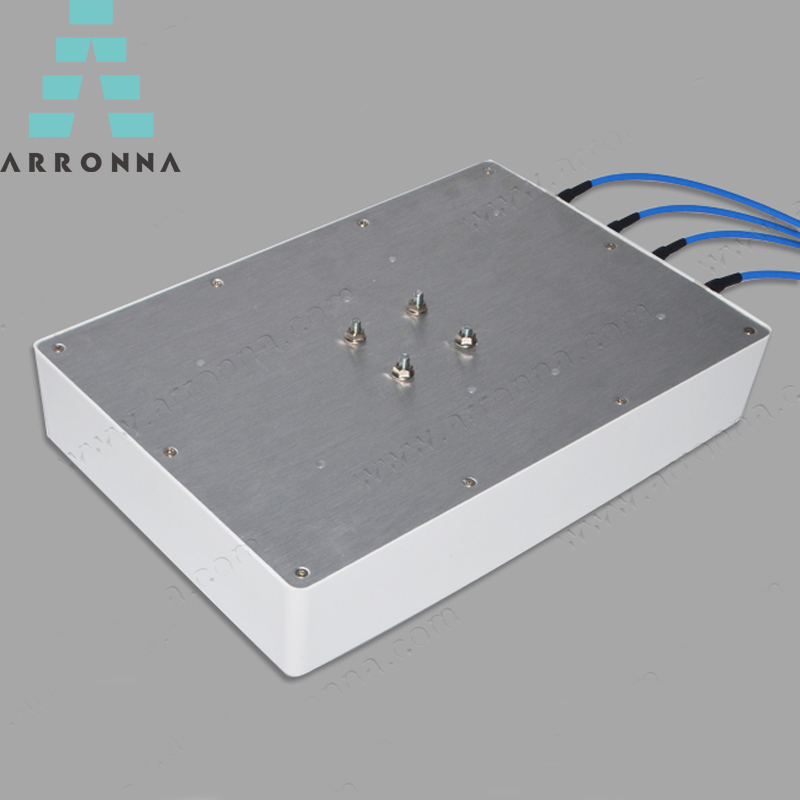

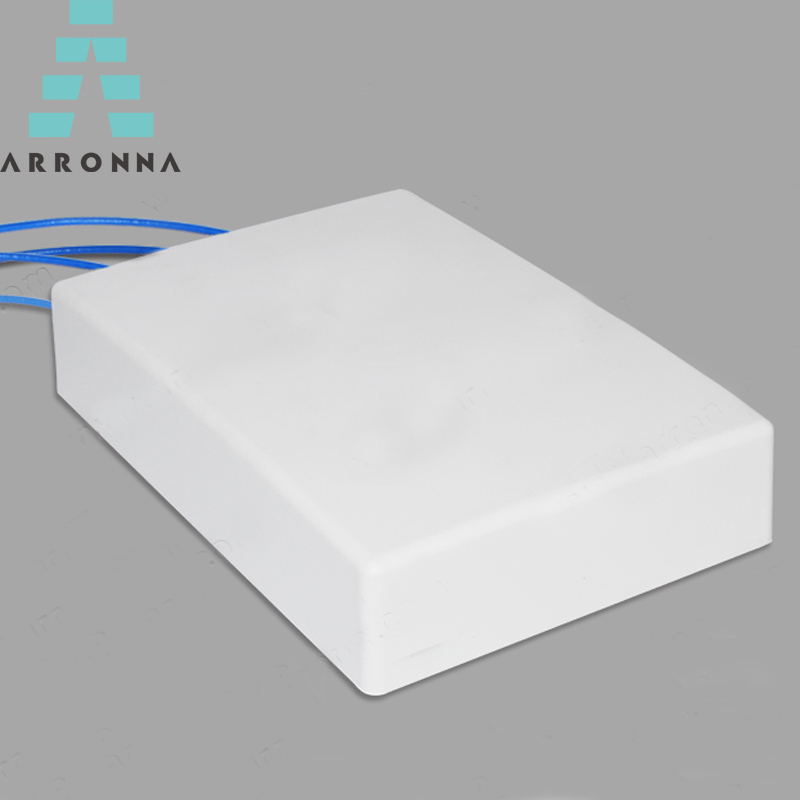

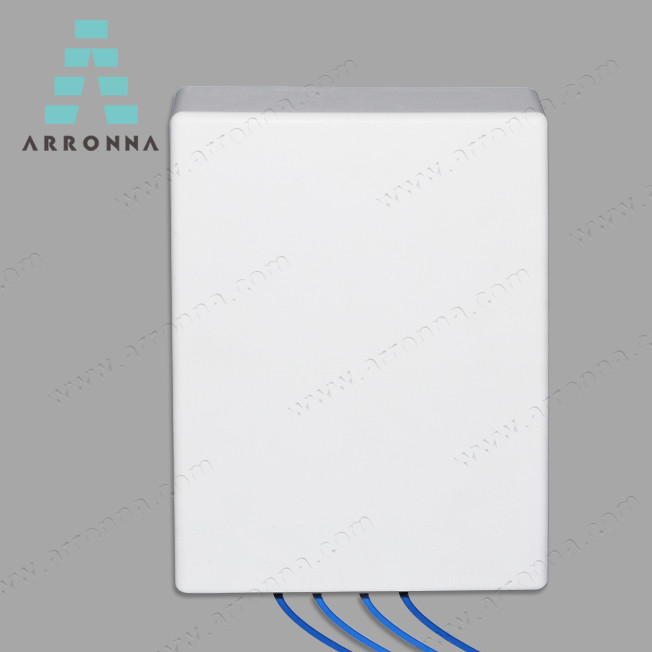

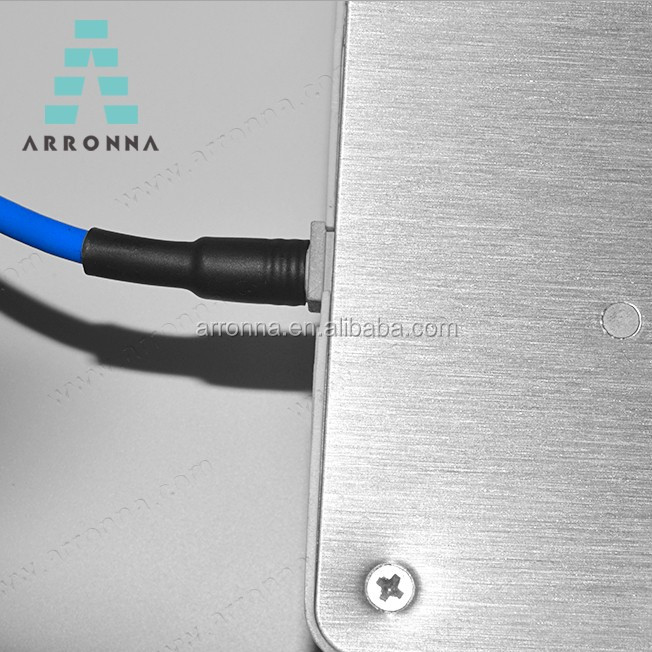

Details Images
Company Pictures
Manufacturing Technique
Equipment
Certifications
Exhibitions
