1710-2700MHz 5-10km Wifi Wimax 4g Lte Base Station Sector Panel Antenna for signal Booster Amplifier Repeater Router Bridge
Type:Directional antenna
Brand Name:Arronna
[Other attributes]
Model Number:S814215
Place of Origin:Guangdong, China
Return Loss:≤1.5

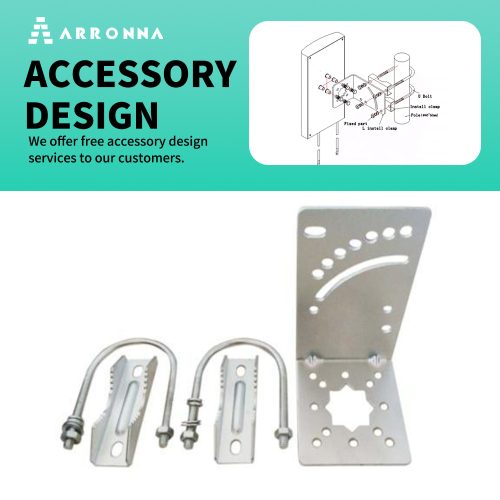

Installation:Bracket
Connector Type:2xN Female
Polarization:Horizontal Vertical
Maximum input power:100W
Terminals:n type female
Antenna Frequency:1710-2700MHz
Antenna Gain:14dbi
Number Of Bands:1
Mechanically adjustable inclination:0~30°
Polarization:Horizontal Vertical
Internal structure:copper-aluminum assembly
Radome Material:PVC
Impedance:50Ω
Working temperature:-40~60℃

|

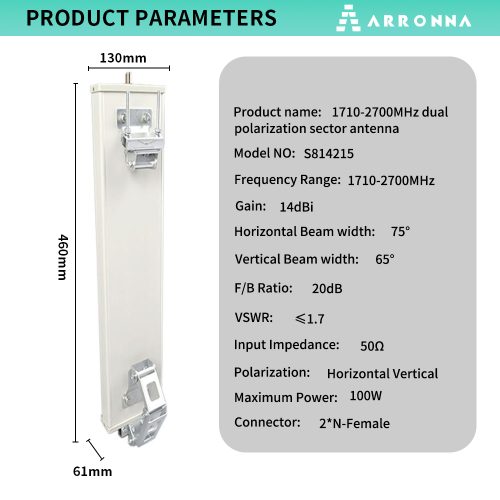

Product name |
1710-2700MHz dual polarization sector antenna |
|
Electric Specification |
|
|
Model |
S814215 |
|
Frequency Range-MHz |
1710-2700 |
|
Gain-dBi |
14 |
|
Horizontal beam width–° |
75 |
|
Vertical beam width–° |
65 |
|
F/B Ratio-dB |
20 |
|
VSWR |
≤1.7 |
|
Input Impedance-Ω |
50 |
|
Polarization |
Horizontal Vertical |
|
Maximum Power-W |
100 |
|
Connector-type |
2*N-Female |
|
Mechanical Specification |
|
|
Dimension-mm |
460*130*61 |
|
Weight-kg |
1.70 |











| Specification | size:130*61*460mm |
|---|
