描述
Features:
1, Ultra wideband covering 2G/3G/4G/WIFI frequency, switch freely when crossing different telecom system no matter in telecom system or internet system;
2,The latest MIMO technology of LTE system and transport the signal faster and stable;
3, Two connectors @698-960/1710-2700MHZ can help the subscriber connect two different equipment at the same time，both connectors can be available for the GSM/3G/WIFI/LTE frequency;
4, Low VSWR can increase the signal transport efficiency, small and simple installation way easy to install.
|
Product parameters:
|
||||
|
Electric Specification
|
||||
|
Product name
|

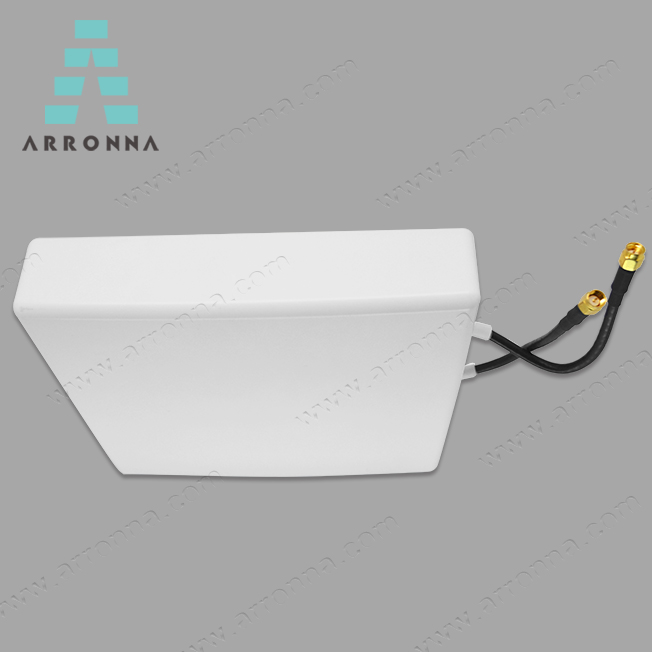

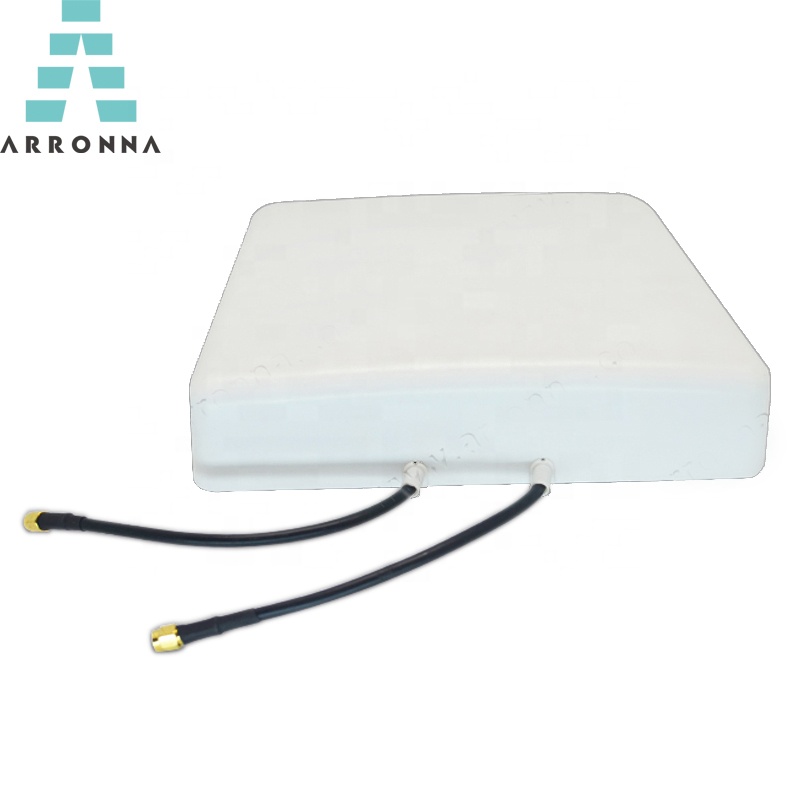

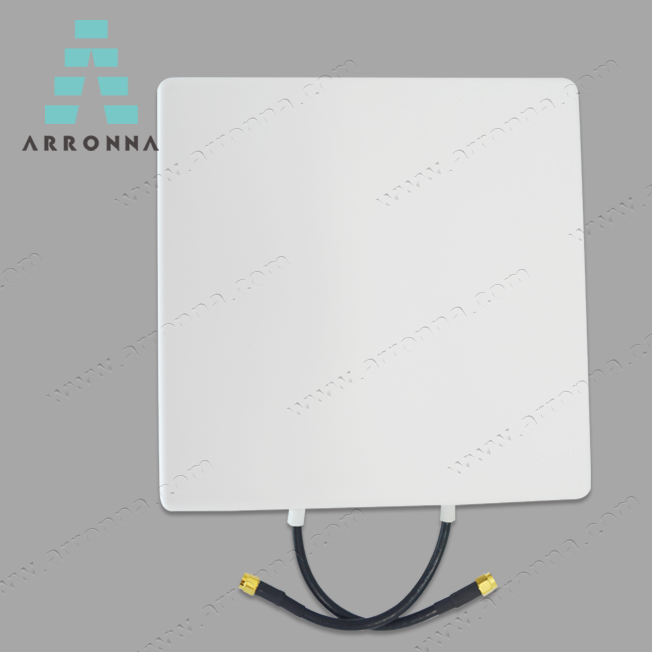

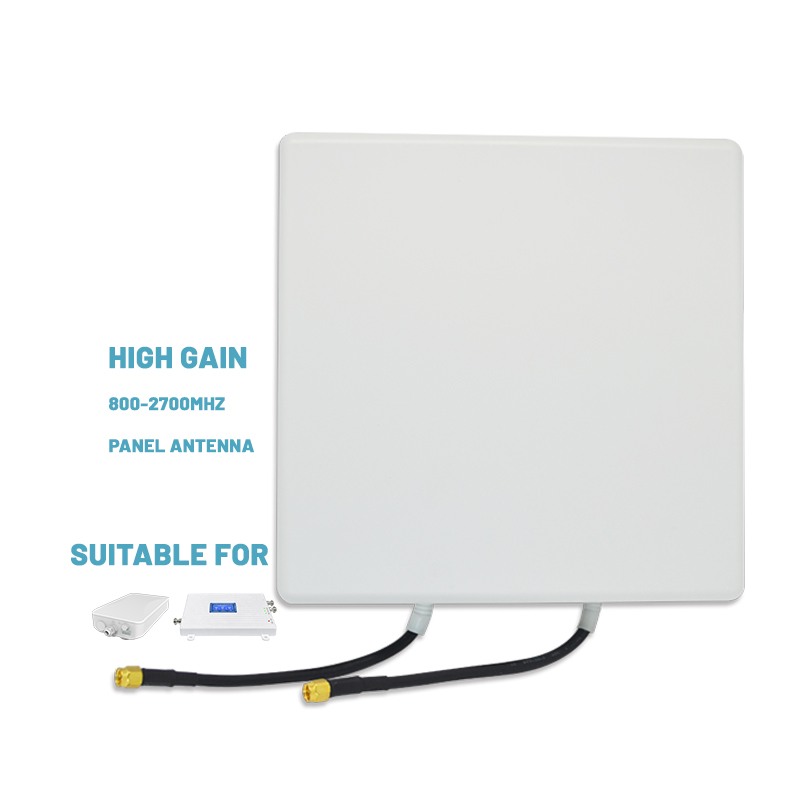

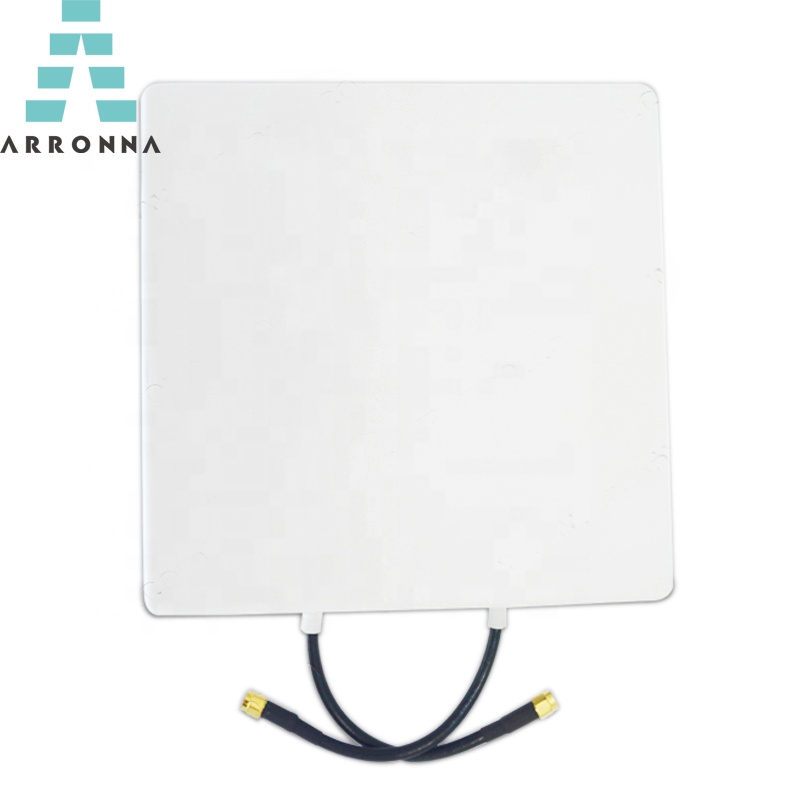

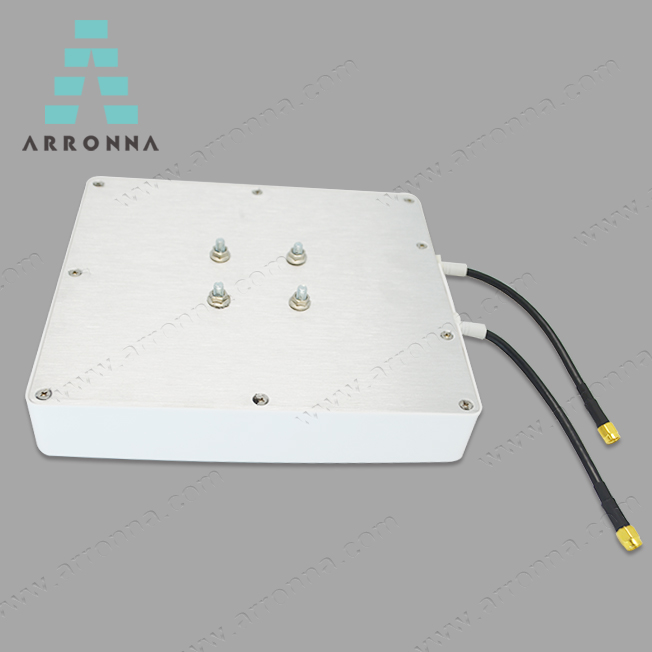

800-960/1710-2700 Panel antenna Dual polarization
|
|||
|
Model No.
|
P809234
|
|||
|
Frequency range-MHz
|
800-960/1710-2700 MHz
|
1710-2700
|
||
|
Gain-dBi
|
7/9 dBi
|
11
|
||
|
Horizontal Beam width-°
|
85°
|
70°
|
||
|
Vertical Beam width-°
|
65°
|
40°
|
||
|
VSWR
|
≤1.8
|
|||
|
Input Impedance -Ω
|
50
|
|||
|
Polarization
|
±45°
|
|||
|
Maximum input power -W
|
50
|
|||
|
Connector
|
2*SMA
|
|||
|
Mechanical Specification
|
||||
|
Dimensions -mm
|
237*229*50
|
|||
What we do?
Shenzhen Arronna Telecom Co.,Ltd,which with the conprehensive strength to research,develop and sell telecom antennas since 2007. Has the workshop area up to 3500 square meters. Lacated in Shenzhen .China During the last 7 years, Arronna do has experienced considerable growth on the domestic market and been expanding the whole international market . The newly-launched “LTE series” are of high grade and top quality antennas.Arronna company earns a good reputation and plays a leading role in the field of communication antenna.
Products: mainly offer antenna, access point and telecom accessories OEM & ODM service for clients, such as MIMO sector antenna, patch antenna at LTE/ WIMAX/WIFI /3G antennas/WLAN antennas, Access point , splitter, amplifier, booster and other accessories to the clients.
Certifications
1. SGS-certified substantive manufacture
2. Hi-tech enterprise
3. Ordinary taxpayer enterprise
4. With authority of independent imports and exports
5. Pass ISO9001:2003
6. Pass ISO14000:2004
7. Pass BV certification
8. The sole antenna supplier of GLOBETELECOM in 2010
9. Gold member of made in china
10. Gold member of Alibaba
Our services
Who is our customer ?
our major oversea clients include GLOBE, AIRTEL and UK OPEN, products mainly match with the CPE/base station devices made by HUAWEI/ZTE/CISCO etc.
Why customer choose to work with us?
We know what customer need and quick to provide the solution. We have large order from different clients and very close relationship with the suppliers so we provide most favorable prices. We transfer production information efficiently and transparently to the clients. We provide excellent after-sale service and also help customers to look for any possible product they need efficiently to save their time and build the trust while reducing the risks, we bridge the world. It’s easy to describe the above, but it’s not easy to really achieve the above.
What is beneficial for you ?
1. Give you a profession wireless solution .
2. A full quotation as your required will be offered in 24 hours .
3. Samples will be delivered within 3 days .
4. 15-designers team-workers will give you ideas for your required products.
Our mission is: Professional , Concentrative ,Best quality Best service responsible for our customers!
More about us:https://arronna.en.alibaba.com
N698-2700 MHz LPDS LTE Log periodic antenna
