Product name |

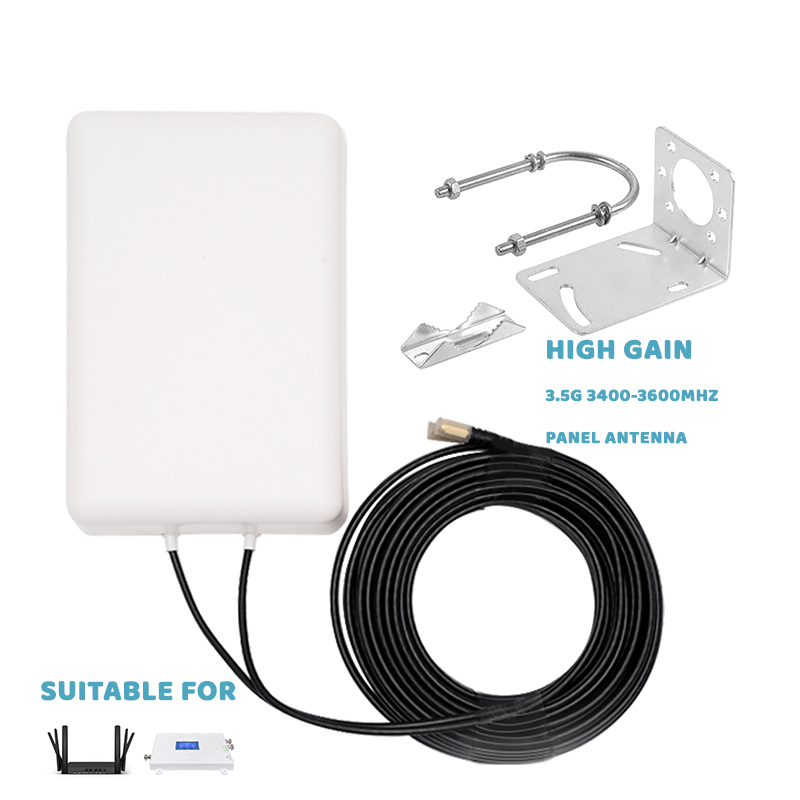

3400-3600MHZ Dual polarization panel antenna |
|
Electric Specification |
|
|
Model No. |
P515257 |
|
Frequency range-MHz |
3400-3600 |
|
Bandwidth –MHz |
200 |
|
Gain-dBi |
15 |
|
Horizontal Beam width–° |
35 |
|
Vertical Beam width–° |
30 |
|
F/B-dB |
17 |
|

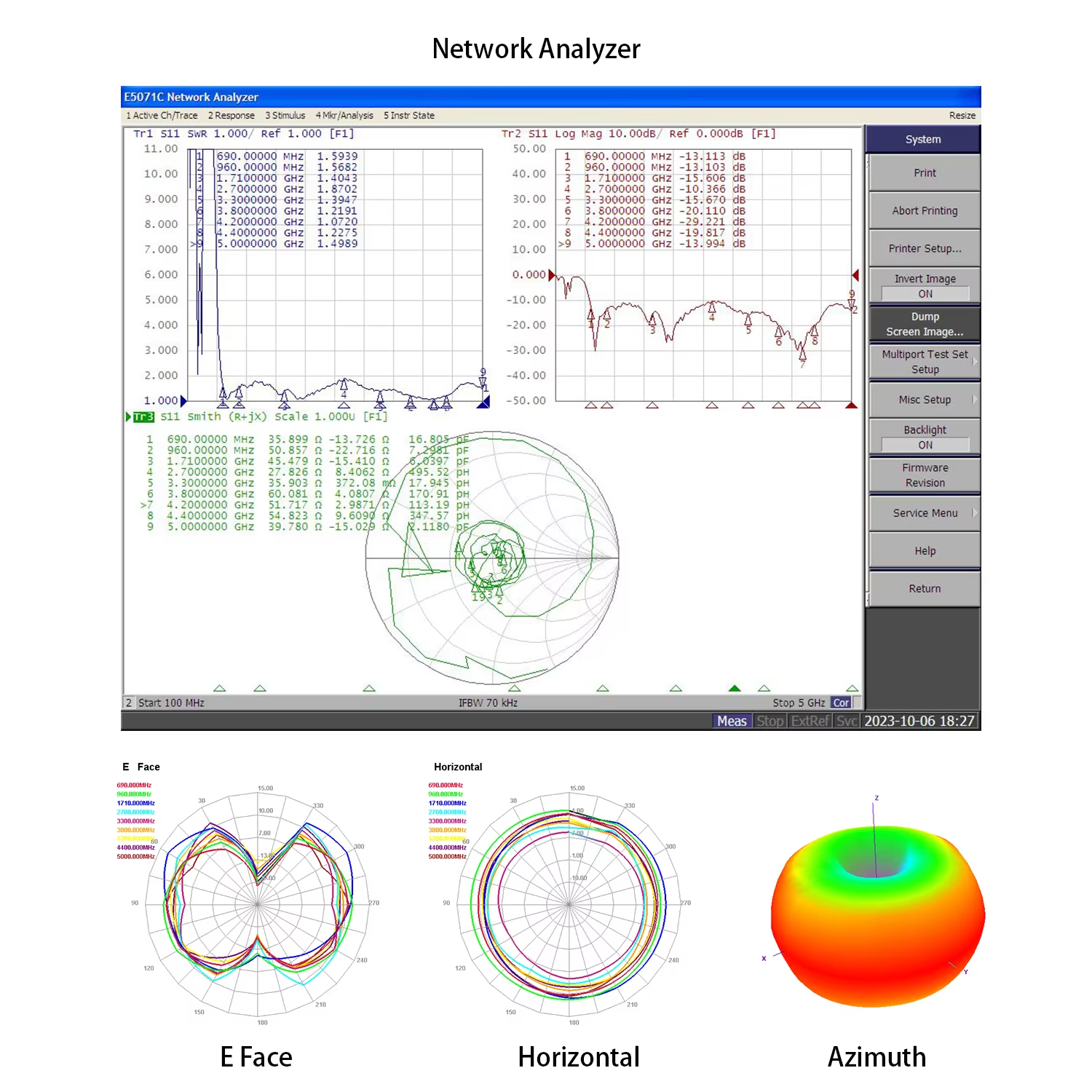

VSWR |
≤1.7 |
|
Input Impedance -Ω |
50 |
|
Polarization |
Horizontal and Vertical |
|
Maximum input power -W |
20 |
|
Connector |
2*SMA |
|

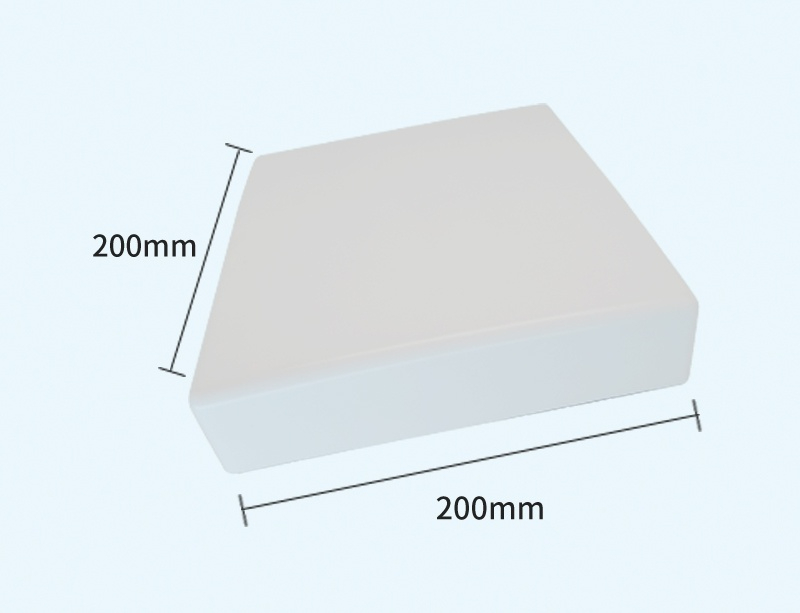

Dimensions -mm |
200*200*40 |
|
Pole-mm |
Φ25-52 |
|
Weight-kg |
0.4 |
Q1: Can I print my logo on the product? Can I customize the colors and finish type?
A: Yes, all appearances are customizable.
Q2: I like the design but want to change the solution, is it possible?
A: Yes we can do that.
Q3: I like the solution/audio but want my own design, is it possible?
A: Yes, we specialize in customized designs for our customers, we can even do new designs for you and give you concepts within a week time.
Q4: I want a different type of packaging, is it possible?
A: Yes. Currently 1000 charges, more than 2,000 the number of and free .(according to the type of carton or plastic packaging).
Q5: I want samples with my own logo, is it possible?
A: Yes it is possible. A small charge may apply depending on requirements.
Q6: How long is the sample time? And the payment term?
A: Samples will be transport in 7-10 days normally, OEM samples will be 10-15 days. You can pay sample fee via Paypal ,Western Union or T/T.
Q7: Are you factory or trading company? And how many stuff do you own?
A: Our enterprises in Shenzhen to create antenna at least ten years of production experience. Our staff in factory 100-200.
