描述

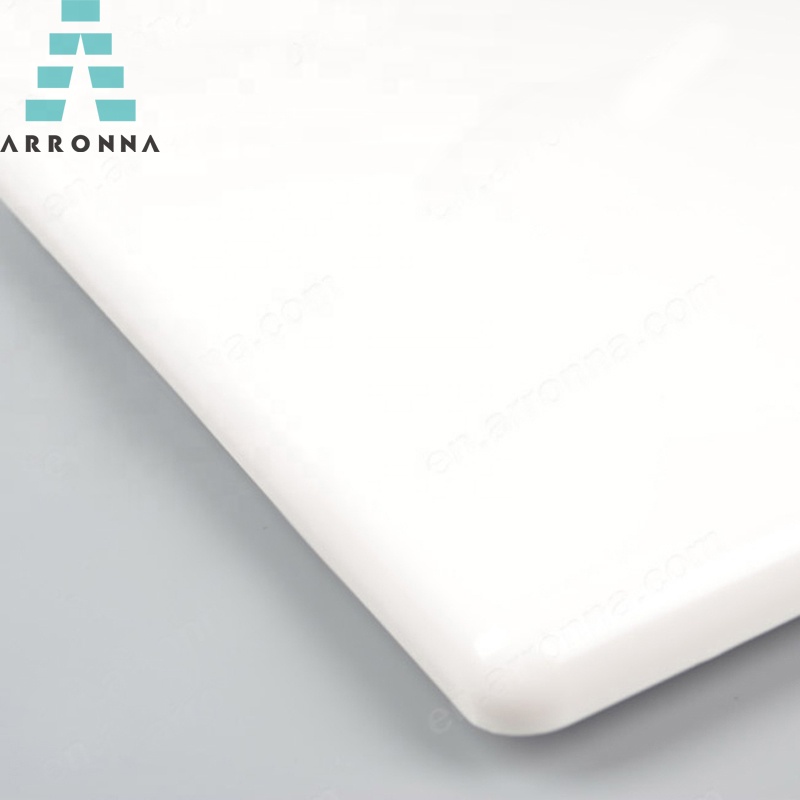

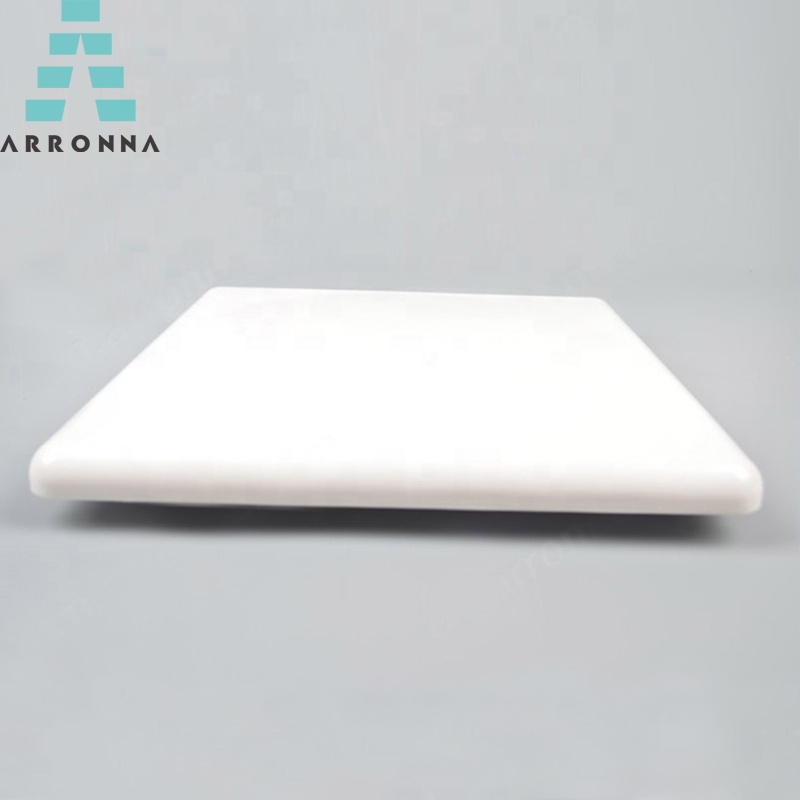

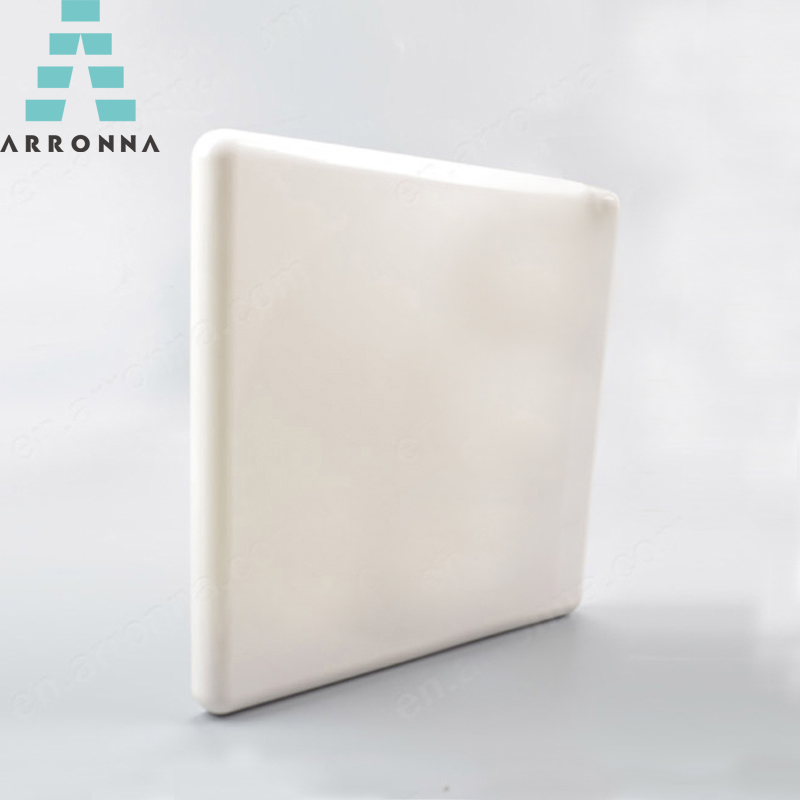

5.8G Antenna
|
Antenna Name
|
5150-5850MHz single polarization Panel Antenna
|
|||||
|
Model No.
|
P623154
|
|||||
|
Electric Specification
|
||||||
|
Frequency Range-MHz
|
5150-5850
|
1710-2700
|
3300-4000
|
|||
|
Gain-dBi
|
23
|
12
|
12
|
|||
|
Horizontal half-power beam
width (°) |
12
|
30
|
28
|
|||
|
Vertical half-power beam width
(°) |
11
|
≥60°
|
≥60°
|
|||
|
VSWR
|
≤1.5
|
≤1.5
|
≤1.5
|
|||
|
Polarization
|
Vertical
|
±45°
|
±45°
|
|||
|
F/B Ratio(dB)
|
≥20
|
≥23
|
≥23
|
|||
|
Isolation(dB)
|
≥18
|
≥22
|
≥22
|
|||
|
Input Impedance
|
50Ω
|
|||||
|
Power capacity (W)
|
100
|
|||||
|

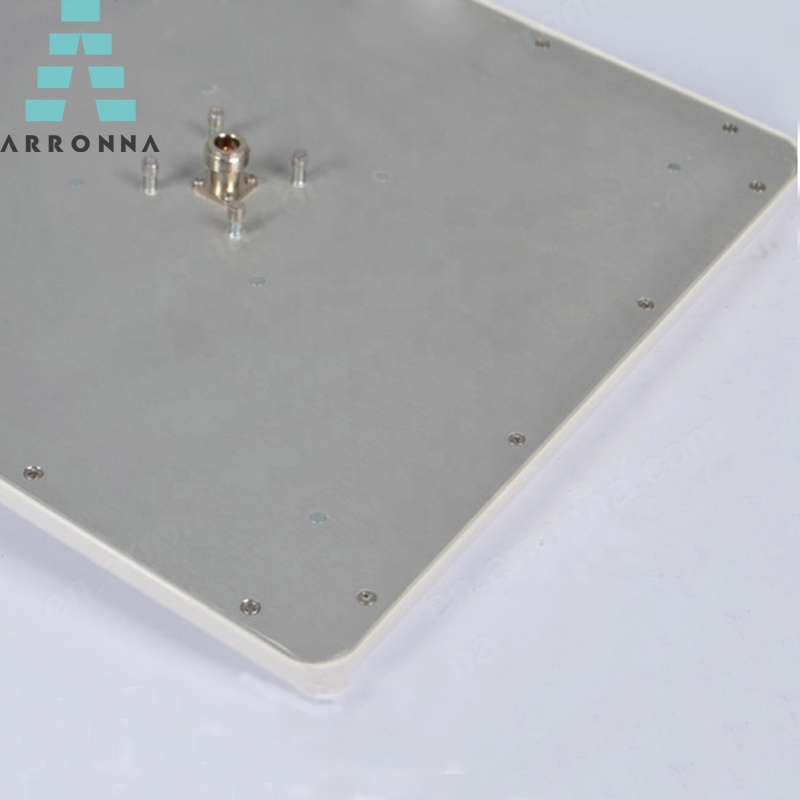

Connector Type
|
SMANTS-9CRC9Customization connector
|
|||||
|
Lightning protection
|
DC Ground
|
|||||
|
Mechanical Specification
|
||||||
|
Product Dimensions -mm
|
306*306*25
|
|||||
|
Product Weight-KG
|
≤2kg
|
|||||
|
Radiator material
|
aluminum/PCB
|
|||||
|
Mechanical adjustment range (°)
|
±35°
|
|||||
|
Radome material
|
ABS
|
|||||
|
Installation method
|

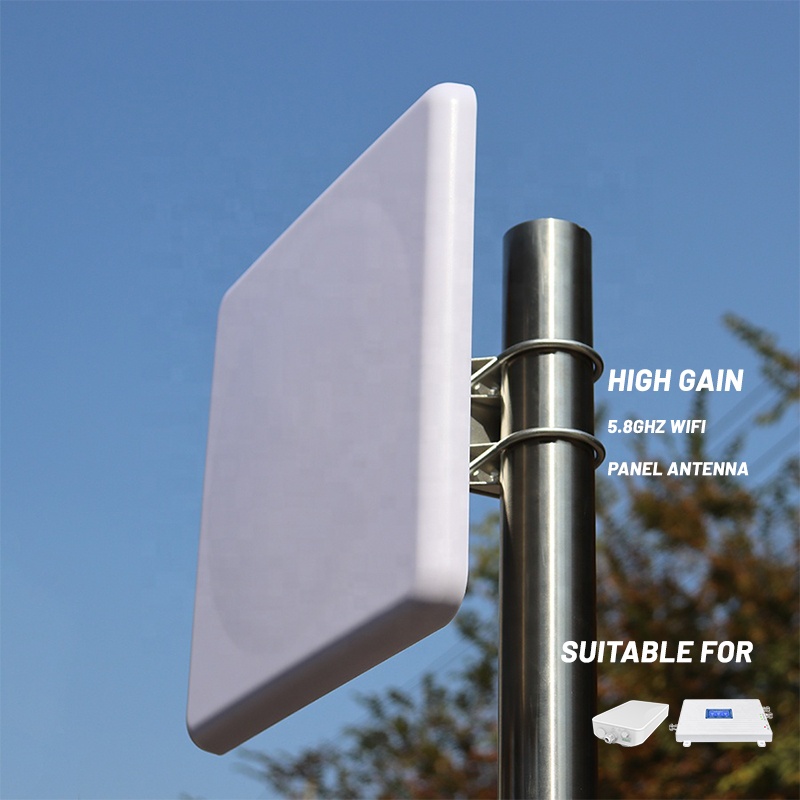

Pole installation / mount installation
|
|||||
|
Environmental requirements
|
||||||
|
Ambient temperature(℃)
|
Working temperature：-40℃～+60℃；
Limit temperature：-55℃～+75℃ |
|||||
|
Relative humidity
|
≤95%
|
|||||
|
Ice thickness
|
10mm
|
|||||
|
Maximum wind speed
|
200km/h
|
|||||
|
Waterproof and dustproof
|
IP60
|
|||||
We are based in Guangdong, China, start from 2011,sell to Southeast Asia(51.26%),Domestic Market(12.68%),Mid East(10.37%),Eastern Europe(6.15%),South America(4.10%),North America(4.10%),Eastern Asia(3.08%),Oceania(3.08%),Africa(2.11%),Western Europe(1.03%),Northern Europe(1.02%),Southern Europe(1.02%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Antenna,Single Amplifier
4. why should you buy from us not from other suppliers?
1, ARRONNA have strong R&D capacity: owning the advanced equipment such as Microwave Chamber, Antennas Far Field Automatic Measurement System, R&D team more than 10 years experience;
2, ARRONNA have great service, Globe Telecom is a great demonstration.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP；
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

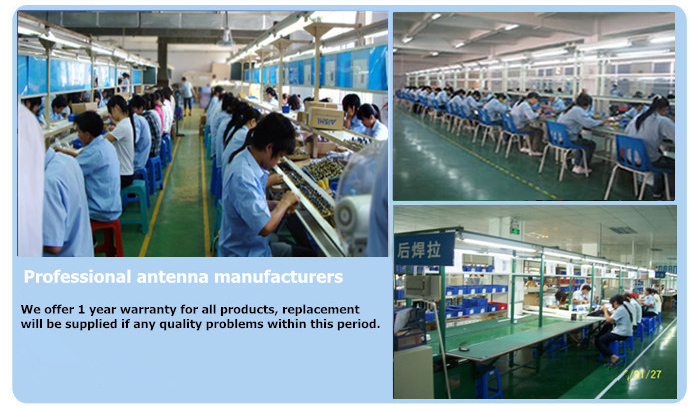

Now ARRONNA owns 3,500M2 place and owns the advanced equipments in telecommunication field: Microwave Chamber, Antennas Far Field Automatic Measurement System, Intermodulation Testing Instrument, High-Low Temperature Test Chamber, High-Speed X-Ray Fluorescent Analyzer, Temperature/Humidity Test Chamber, Frequency Spectrum Analyzer, Coaxial Cable Stripper Machine, Coating thickness tester, Salt Mist Corrosion Test Chamber e.t.c. Now ARRONNA is an integrated high-tech company with products cover 88mhz to 5.8GHz including LTE/WIFI/WIMAX/3G/RF SYSTEM and the products are welcomed by telecom operator like HUAWEI and GLOBE TELECOM.
ARRONNA is strengthening enterprise competitiveness day by day. ARRONNA passed BV and SGS certification successfully. Through web promotion and exhibition show, we demonstrates our energy and innovation system make sure get rid of the stale and bring forth the fresh, which guarantee clients’benefit fundamentally. Welcome you to visit ARRONNA to testify our service!
